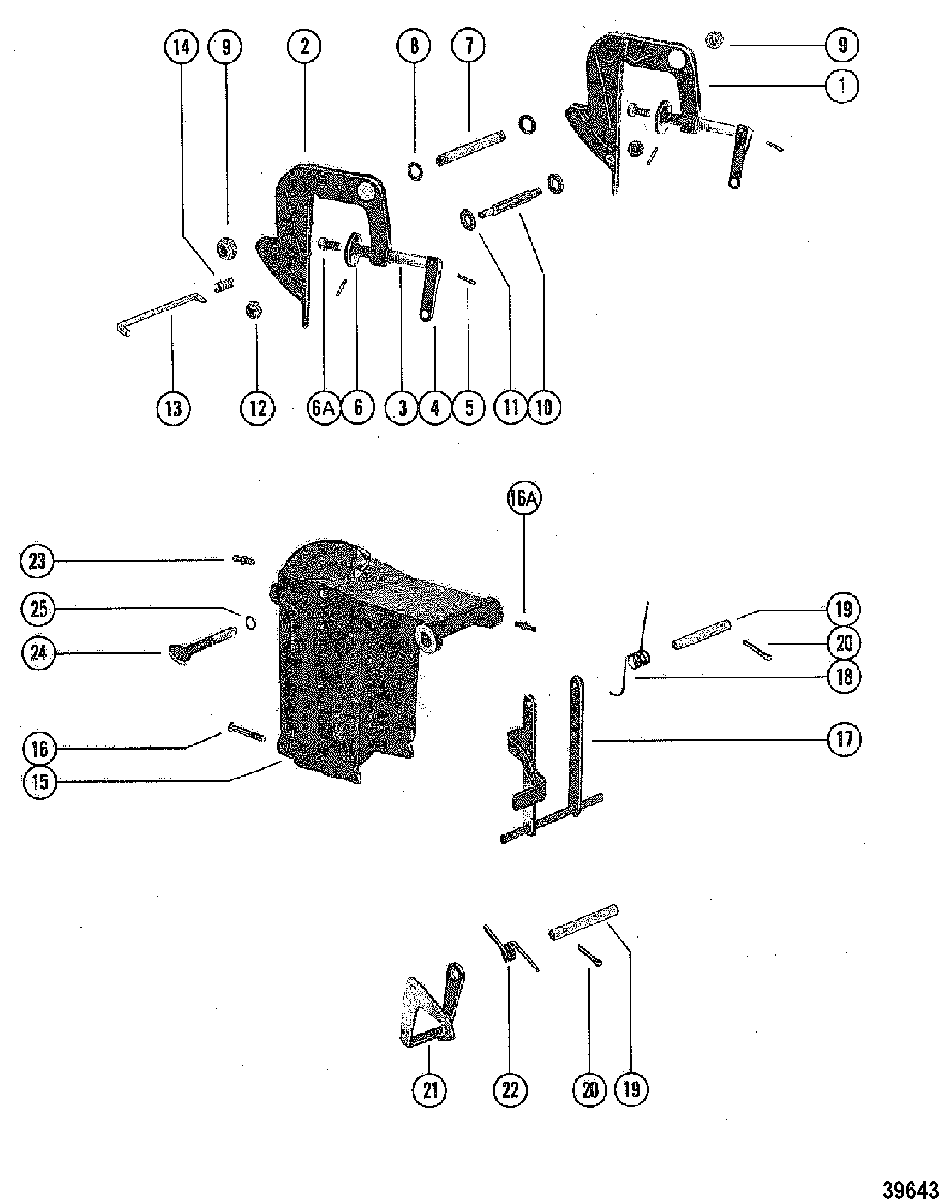

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 7146488 THRU 7147237

  • №
    Артикул
    Название
  • 1
    1479-7291A1 CLAMP BRACKET (PORT)
    CLAMP BRACKET (PORT)
  • 2
    1478-7289A1 CLAMP BRACKET (STARBOARD)
    CLAMP BRACKET (STARBOARD)
  • 3
    10-77190A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    78971 HANDLE, THUMB SCREW
    HANDLE, THUMB SCREW
  • 5
    17-78970 PIN, Groove, THUMB SCREW
    PIN, Groove, THUMB SCREW
  • 6
    12-818884 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 6A
    10-768042 SCREW, THUMB SCREW WASHER
    SCREW, THUMB SCREW WASHER
  • 7
    10-96917 SCREW, CLAMP BRACKET
    SCREW, CLAMP BRACKET
  • 8
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, CLAMP BRACKET SCREW
    WASHER, (.406 x .734 x .063) Stainless Steel, CLAMP BRACKET SCREW
  • 9
    11-8M0042636 NUT, (.375-24), CLAMP BRACKET SCREW
    NUT, (.375-24), CLAMP BRACKET SCREW
  • 10
    16-68925 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUD
    LOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUD
  • 12
    11-29598 NUT, (.250-28) Stainless Steel, CLAM BRACKET STUD
    NUT, (.250-28) Stainless Steel, CLAM BRACKET STUD
  • 13
    17-68929A2 PIN ASSEMBLY, Tilt
    PIN ASSEMBLY, Tilt
  • 14
    24-62143 SPRING, TILT PIN
    SPRING, TILT PIN
  • 15
    1477-7400A2 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 16
    10-69067 SCREW, (.250-20 x 1.375), SWIVEL BRACKET
    SCREW, (.250-20 x 1.375), SWIVEL BRACKET
  • 16A
    22-74036 FITTING, SWIVEL BRACKET
    FITTING, SWIVEL BRACKET
  • 17
    76110A1 LEVER ASSEMBLY, Tilt
    LEVER ASSEMBLY, Tilt
  • 18
    24-68932 SPRING, TORSION - PORT
    SPRING, TORSION - PORT
  • 19
    68968 ROD, REVERSE LOCK
    ROD, REVERSE LOCK
  • 20
    18-25191 COTTER PIN, REVERSE LOCK ROD
    COTTER PIN, REVERSE LOCK ROD
  • 21
    68972 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 22
    24-73124 SPRING, TORSION - STARBOARD
    SPRING, TORSION - STARBOARD
  • 23
    22-74036 FITTING
    FITTING
  • 24
    79793A1 SCREW ASSEBMLY, Adjustment
    SCREW ASSEBMLY, Adjustment
  • 25
    25-20385 O-RING, (.239 x .070), CO-PILOT SCREW
    O-RING, (.239 x .070), CO-PILOT SCREW
  • -
    27-77586A78 GASKET SET
    GASKET SET
