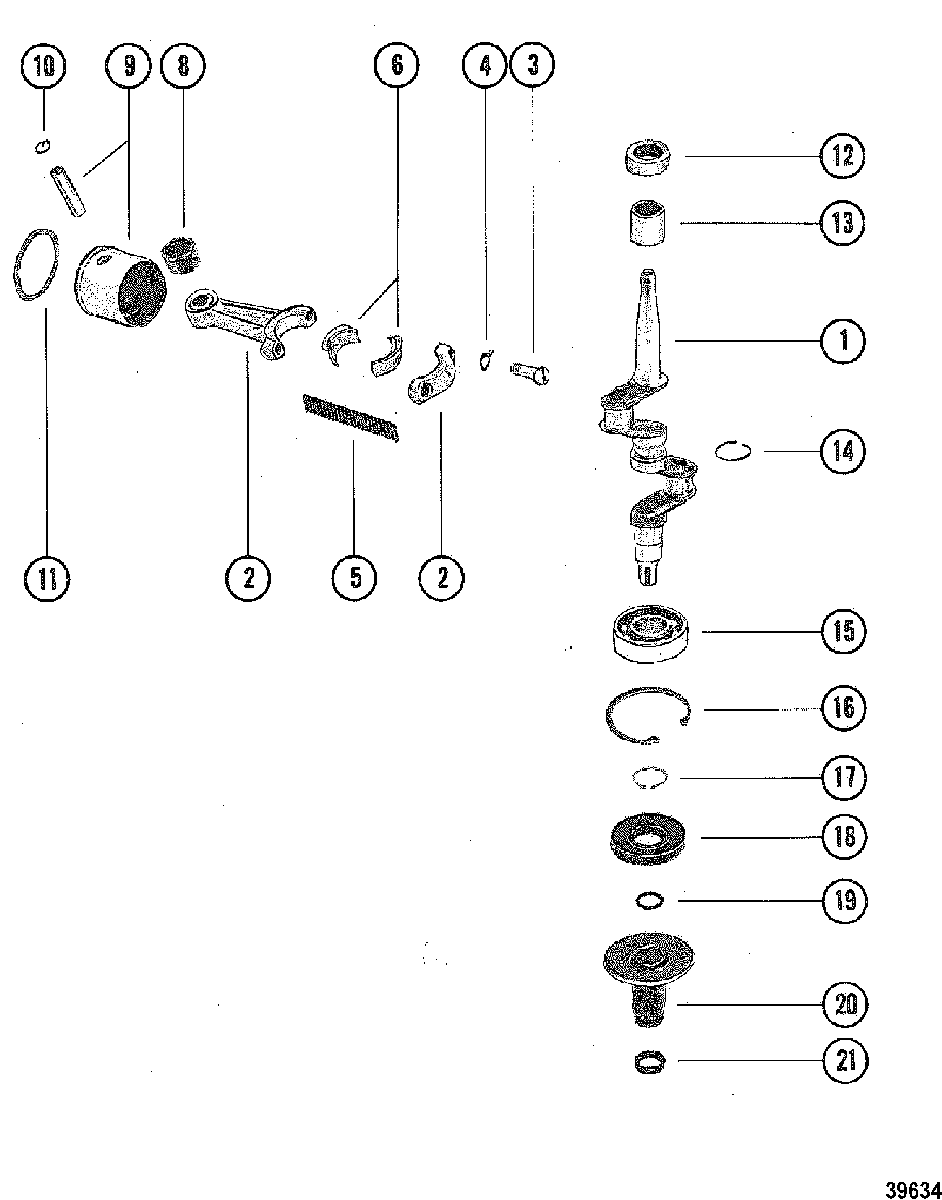

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 40 (2 CYL. PRODUCT OF USA) 7146488 THRU 7147237

№

Артикул

Название
1

458-5549 CRANKSHAFT

CRANKSHAFT
2

626-5547A5 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
3

10-72455 SCREW, CONNECTING ROD

SCREW, CONNECTING ROD
4

14-72454 TAB WASHER, CONNECTING ROD SCREW

TAB WASHER, CONNECTING ROD SCREW
5

29-68944 BEARING, Needle, CONNECTING ROD

BEARING, Needle, CONNECTING ROD
6

68953A1 LINER ASSEMBLY, CRANKPIN

LINER ASSEMBLY, CRANKPIN
8

31-68949 BEARING, Roller, CONNECTING ROD - PISTON PIN

BEARING, Roller, CONNECTING ROD - PISTON PIN
9

758-8076A2 PISTON ASSEMBLY
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below

PISTON ASSEMBLY
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below
9

758-8076A2 PISTON ASSEMBLY
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up

PISTON ASSEMBLY
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up
10

40-68950 LOCK RING, PISTON

LOCK RING, PISTON
11

39-70175A12 RING SET, Piston

RING SET, Piston
12

26-30530 SEAL, Oil, CRANKSHAFT - UPPER

SEAL, Oil, CRANKSHAFT - UPPER
13

31-78099 BEARING, Roller, CRANKSHAFT - UPPER

BEARING, Roller, CRANKSHAFT - UPPER
14

71841 RING, CRANKSHAFT

RING, CRANKSHAFT
15

30-69389 BEARING, Ball, CRANKSHAFT - LOWER

BEARING, Ball, CRANKSHAFT - LOWER
16

53-68952 RING, Retaining, BALL BEARING -LARGE

RING, Retaining, BALL BEARING -LARGE
17

53-27275 RING, Retaining, BALL BEARING - SMALL

RING, Retaining, BALL BEARING - SMALL
18

26-77494 SEAL, Oil, CRANKSHAFT

SEAL, Oil, CRANKSHAFT
19

25-62706 O-RING, (.426 x .070), CRANKSHAFT

O-RING, (.426 x .070), CRANKSHAFT
20

70786A1 COUPLING ASSEMBLY, CRANKSHAFT

COUPLING ASSEMBLY, CRANKSHAFT
21

26-76266 SEAL, COUPLING

SEAL, COUPLING
-

27-77586A78 GASKET SET

GASKET SET
