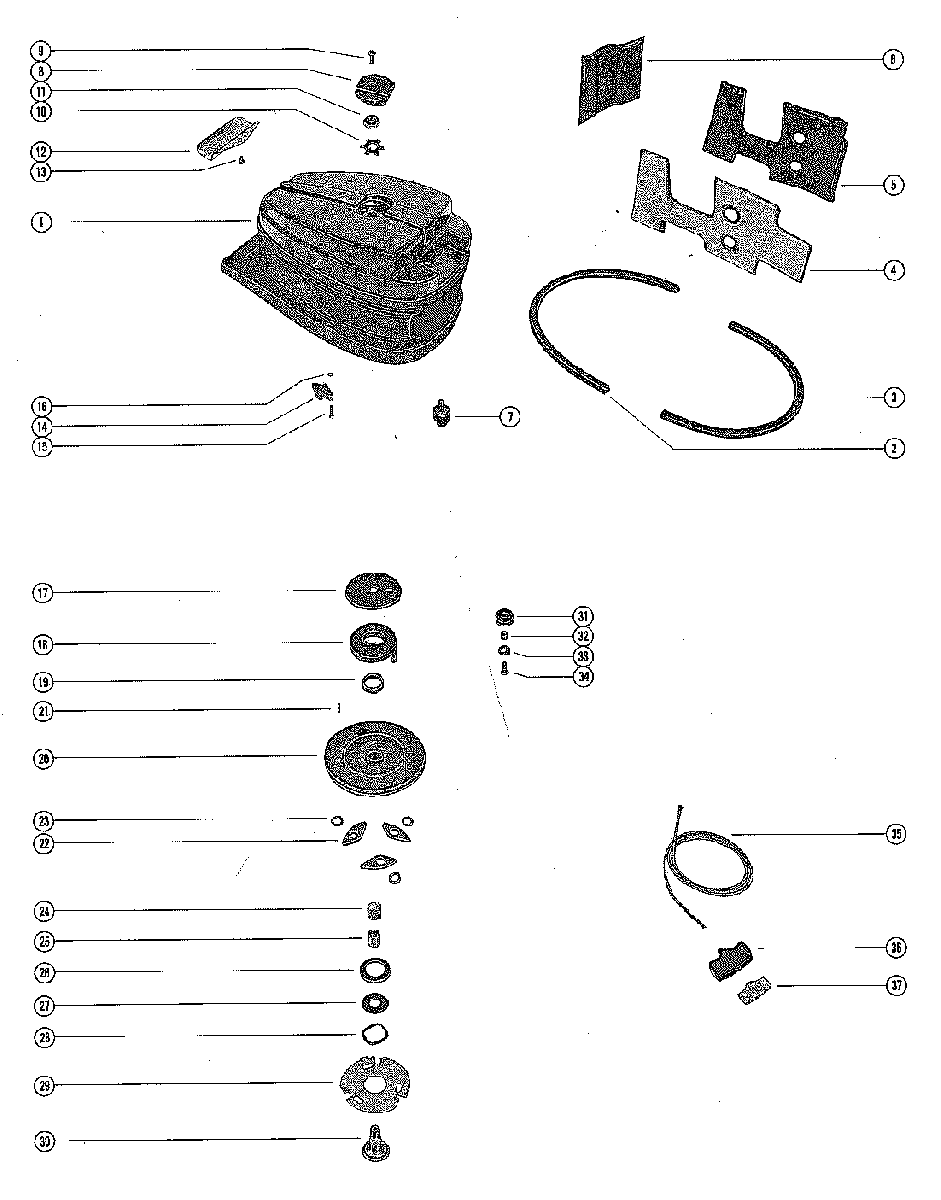

TOP COWL AND STARTER ASSEMBLY для Mercury - 40 (1 CYL.) 3306257 THRU 8026539
-
№АртикулНазвание
-
1191-7668A2 TOP COWL ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWTOP COWL ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
1191-7668A2 TOP COWL ASSEMBLY
UNITED STATES 3529446 AND UP
AUSTRALIA 8005740 AND UP
BELGIUM 9012109 AND UP
CANADA 7011058 AND UPTOP COWL ASSEMBLY
UNITED STATES 3529446 AND UP
AUSTRALIA 8005740 AND UP
BELGIUM 9012109 AND UP
CANADA 7011058 AND UP -
1191-7668A2 TOP COWL ASSEMBLY
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897TOP COWL ASSEMBLY
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
239538 STRIP, SOUND SEAL - REARSTRIP, SOUND SEAL - REAR
-
339537 STRIP, SOUND SEAL - FORWARDSTRIP, SOUND SEAL - FORWARD
-
446231 BLANKET, SOUND ABSORBING - STARBOARD
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWBLANKET, SOUND ABSORBING - STARBOARD
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
535846 BLANKET, SOUND ABSORBING - PORT
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWBLANKET, SOUND ABSORBING - PORT
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
635848 BLANKET, SOUND ABSORBING - REAR
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWBLANKET, SOUND ABSORBING - REAR
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
753472 MOUNT, RUBBER - TOP COWL
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWMOUNT, RUBBER - TOP COWL
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
766018 MOUNT, RUBBER - TOP COWL
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897MOUNT, RUBBER - TOP COWL
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
889096 COVER, TRIM - TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWCOVER, TRIM - TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
889096 COVER, TRIM - TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWCOVER, TRIM - TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
910-23618 SCREW, TRIM COVER TO TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSCREW, TRIM COVER TO TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
910-64652 SCREW, TRIM COVER TO TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSCREW, TRIM COVER TO TOP COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
1014-20165 TAB WASHER, CHEAVE SHAFT NUTTAB WASHER, CHEAVE SHAFT NUT
-
1111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
1231908 SCREEN, VENT - TO COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSCREEN, VENT - TO COWL
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
1264601 COVER, VENT - TO COWL
PART OF A-191-5032A4 TOP COWL ASSEMBLY UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWCOVER, VENT - TO COWL
PART OF A-191-5032A4 TOP COWL ASSEMBLY UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
1310-35519 SCREW, VENT SCREEN TO TOP COWL (3/8")
PART OF A-191-5032A4 TOP COWL ASSEMBLYSCREW, VENT SCREEN TO TOP COWL (3/8")
PART OF A-191-5032A4 TOP COWL ASSEMBLY -
1439257 BRACKET, PORT - TOP COWL FASTENINGBRACKET, PORT - TOP COWL FASTENING
-
1439258 BRACKET, STARBOARD - TOP COWL FASTENINGBRACKET, STARBOARD - TOP COWL FASTENING
-
1510-39514 SCREW, BRACKET TO TOP COWL (1 1/8")SCREW, BRACKET TO TOP COWL (1 1/8")
-
1612-29245 WASHER, BRACKET SCREW (1/16")WASHER, BRACKET SCREW (1/16")
-
1720155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1824-29340T02 SPRING ASSEMBLY, STARTER REWINDSPRING ASSEMBLY, STARTER REWIND
-
1923-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2050-93696A2 STARTER SHEAVE ASSEMBLYSTARTER SHEAVE ASSEMBLY
-
2117-22896 PIN, RETAINER - STARTER CABLEPIN, RETAINER - STARTER CABLE
-
2230596 PAWL, STARTERPAWL, STARTER
-
2313-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
2423-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
2523-61005 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
2626179 RETAINER, SHEAVE SHAFT TO STARTER CHEAVERETAINER, SHEAVE SHAFT TO STARTER CHEAVE
-
2712-35559 WASHER, SHEAVE SHAFT RETAINERWASHER, SHEAVE SHAFT RETAINER
-
2813-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
2930595 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
3035558 SHAFT, SHEAVESHAFT, SHEAVE
-
3155860 PULLEY, STARTER CABLEPULLEY, STARTER CABLE
-
3223-309772 SPACER, CABLE PULLEYSPACER, CABLE PULLEY
-
3312-22887 WASHER, PULLEY FASTENING SCREWWASHER, PULLEY FASTENING SCREW
-
3410-28789 SCREW, PULLEY TO TOP COWL (3/4")SCREW, PULLEY TO TOP COWL (3/4")
-
3550-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
3630782 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
3779470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
