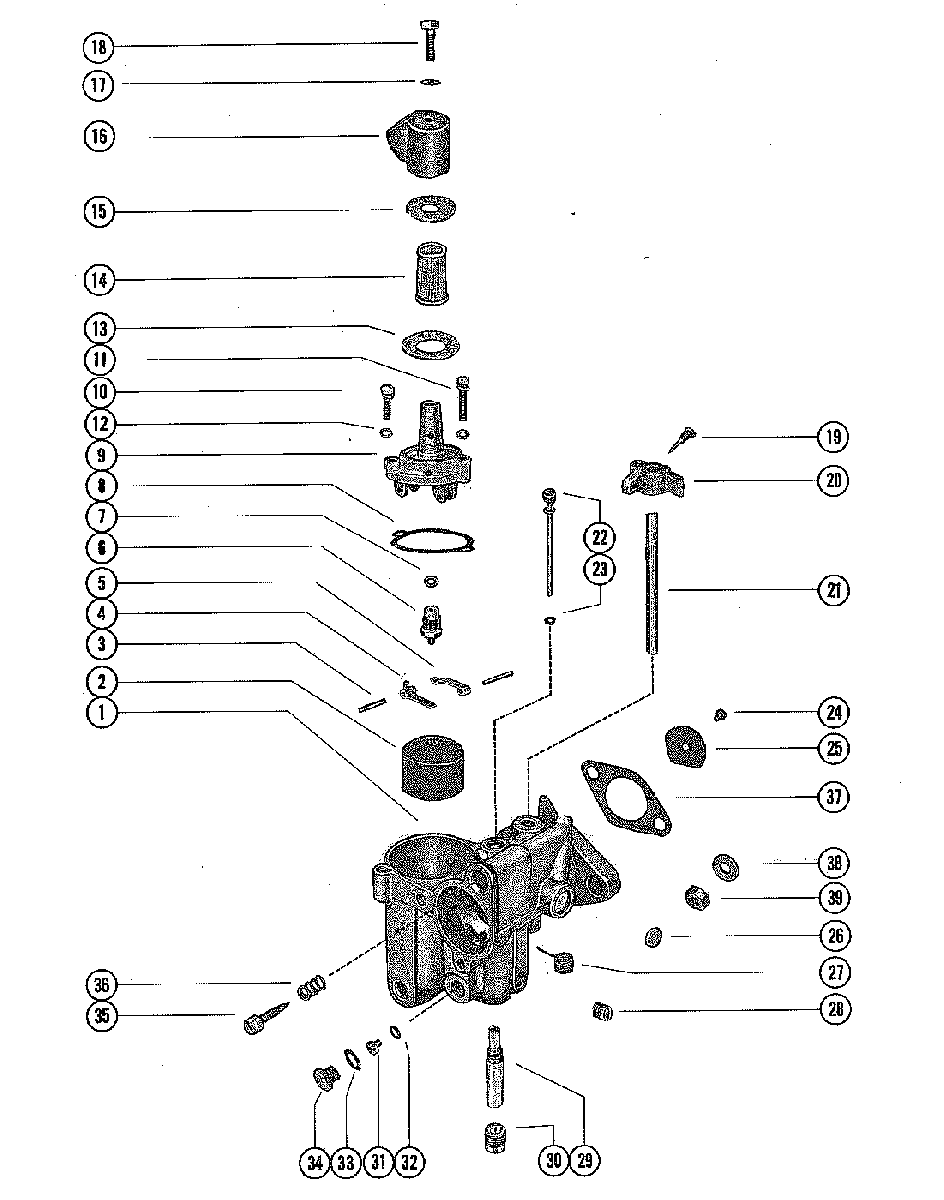

CARBURETOR ASSEMBLY для Mercury - 40 (1 CYL.) 3306257 THRU 8026539

  • №
    Артикул
    Название
  • 1
    1341-8740A1 CARBURETOR ASSEMBLY, COMPLETE (KB-10A)
    CARBURETOR ASSEMBLY, COMPLETE (KB-10A)
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-1133 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-52196 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 13
    90-8M0143356 GASKET, STRAINER COVER (LARGE)
    GASKET, STRAINER COVER (LARGE)
  • 14
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 15
    90-8M0143356 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 16
    1399-1135 COVER, STRAINER
    COVER, STRAINER
  • 17
    90-8M0143356 GASKET, STRAINER COVER SCREW
    GASKET, STRAINER COVER SCREW
  • 18
    10-25822 SCREW, STRAINER COVER
    SCREW, STRAINER COVER
  • 19
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    8146791 LEVER, THROTTLE STOP
    LEVER, THROTTLE STOP
  • 21
    1399-1716 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 22
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 23
    90-8M0143356 GASKET, IDLE TUBE
    GASKET, IDLE TUBE
  • 24
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 25
    1399-3739 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 26
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • 27
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 28
    10-28845 SCREW, PLUG - BODY CHANNEL
    SCREW, PLUG - BODY CHANNEL
  • 29
    90-8M0143356 ,MAIN NOZZLE
    ,MAIN NOZZLE
  • 30
    10-23178 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 31
    1399-1896 JET, MAIN FUEL (.041)
    JET, MAIN FUEL (.041)
  • 31
    1399-2407 JET, MAIN FUEL (.039)
    JET, MAIN FUEL (.039)
  • 31
    1399-3026 JET, MAIN FUEL (.036) - STANDARD
    JET, MAIN FUEL (.036) - STANDARD
  • 31
    1399-3251 JET, MAIN FUEL (.034)
    JET, MAIN FUEL (.034)
  • 31
    1399-3252 JET, MAIN FUEL (.032)
    JET, MAIN FUEL (.032)
  • 32
    90-8M0143356 GASKET, MAIN FUEL JET
    GASKET, MAIN FUEL JET
  • 33
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 34
    10-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 35
    1399-3740 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 36
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • --
    1399-1717 GASKET AND PACKING SET
    GASKET AND PACKING SET
  • --
    1395-92621 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • 37
    27-63309 GASKET, CARBURETOR TO REED BLOCK
    GASKET, CARBURETOR TO REED BLOCK
  • 38
    12-20583 WASHER, CARBURETOR MOUNTING STUD
    WASHER, CARBURETOR MOUNTING STUD
  • 39
    11-24652 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
