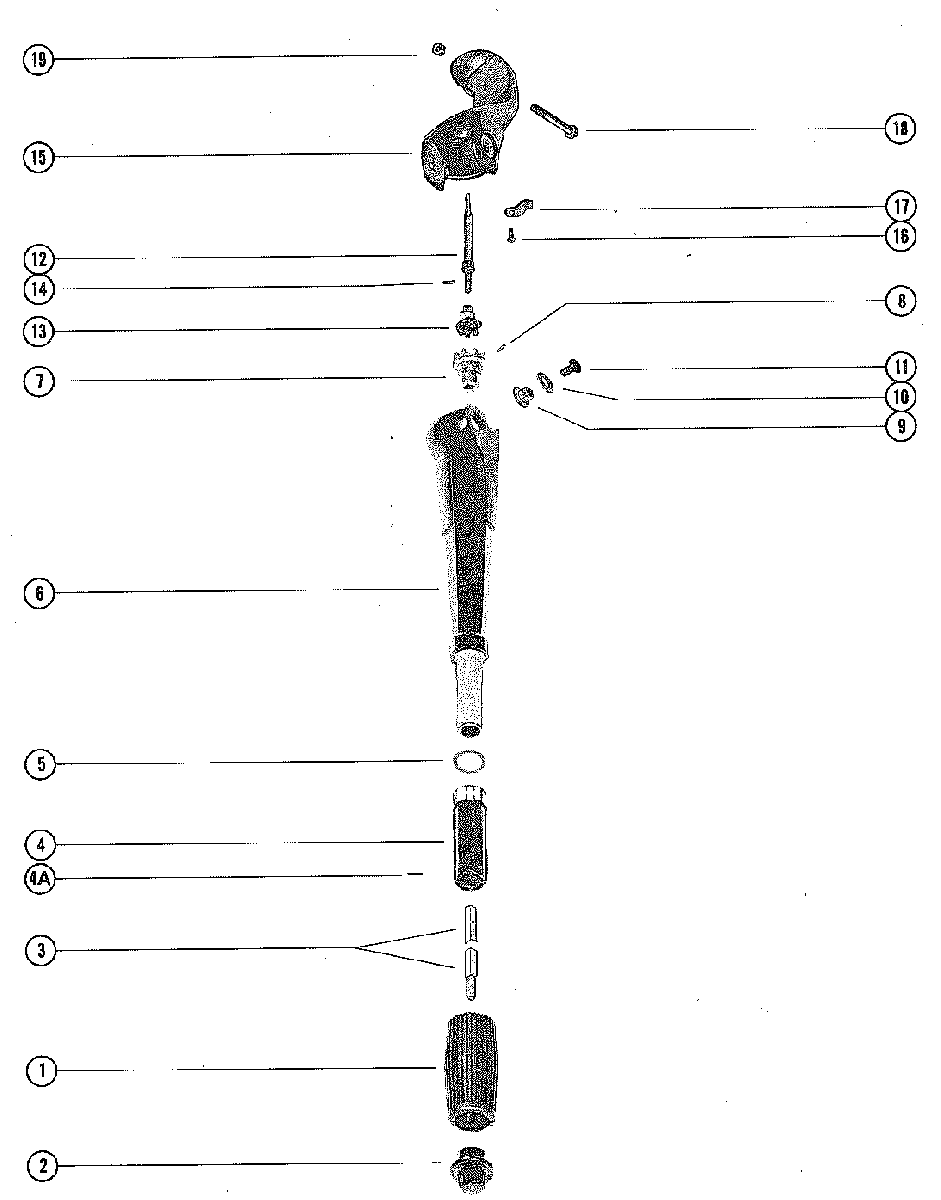

STEERING HANDLE ASSEMBLY для Mercury - 40 (1 CYL.) 3306257 THRU 8026539

  • №
    Артикул
    Название
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMP.
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
    STEERING HANDLE ASSEMBLY, COMP.
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
    0 ₽
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMP.
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    STEERING HANDLE ASSEMBLY, COMP.
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    0 ₽
  • 1
    60854 GRIP, HANDLE - THROTTLE
    GRIP, HANDLE - THROTTLE
    0 ₽
  • 2
    62251 CAP, HANDLE THROTTLE
    CAP, HANDLE THROTTLE
    0 ₽
  • 3
    66393 SHAFT, THROTTLE
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
    SHAFT, THROTTLE
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
    0 ₽
  • 4
    66394A1 HANDLE ASSEMBLY, THROTTLE SHAFT
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
    HANDLE ASSEMBLY, THROTTLE SHAFT
    UNITED STATES 3764824 AND BELOW
    AUSTRALIA 8014364 AND BELOW
    BELGIUM 9037733 AND BELOW
    CANADA 7025897 AND BELOW
    0 ₽
  • 3
    66393 SHAFT, THROTTLE
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    SHAFT, THROTTLE
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    0 ₽
  • 4
    66394A1 HANDLE ASSEMBLY, THROTTLE SHAFT
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    HANDLE ASSEMBLY, THROTTLE SHAFT
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    0 ₽
  • 4A
    17-46152 PIN, THROTTLE HANDLE
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    PIN, THROTTLE HANDLE
    UNITED STATES 3529446 THRU 3764824
    AUSTRALIA 8005740 THRU 8014364
    BELGIUM 9012109 THRU 9037733
    CANADA 7011058 THRU 7025897
    0 ₽
  • 5
    12-62252 WASHER, THROTTLE HANDLE TO STEERING ARM
    WASHER, THROTTLE HANDLE TO STEERING ARM
    0 ₽
  • 6
    60850 ARM, STEERING HANDLE
    ARM, STEERING HANDLE
    0 ₽
  • 7
    43-60852 GEAR, BALL THROTTLE SHAFT
    GEAR, BALL THROTTLE SHAFT
    590 ₽
  • 8
    17-27088 PIN, BALL GEAR TO THROTTLE SHAFT
    PIN, BALL GEAR TO THROTTLE SHAFT
    0 ₽
  • 9
    48003 PIVOT, STEEREING HANDLE TO BRACKET
    PIVOT, STEEREING HANDLE TO BRACKET
    0 ₽
  • 10
    15-48002015 SHIM, HANDLE PIVOT TO BRK. (.015)
    SHIM, HANDLE PIVOT TO BRK. (.015)
    0 ₽
  • 11
    10-64074 SCREW, HANDLE TO ARM BRK. (5/8")
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    SCREW, HANDLE TO ARM BRK. (5/8")
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    820 ₽
  • 11
    10-64074 SCREW, HANDLE TO ARM BRK. (5/8")
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    SCREW, HANDLE TO ARM BRK. (5/8")
    UNITED STATES 3529445 AND BELOW
    AUSTRALIA 8005739 AND BELOW
    BELGIUM 9012108 AND BELOW
    CANADA 7011057 AND BELOW
    820 ₽
  • 12
    60857A2 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
    0 ₽
  • 13
    43-60852 GEAR, BALL - UNIVERSAL JOINT
    GEAR, BALL - UNIVERSAL JOINT
    590 ₽
  • 14
    17-68436 PIN, BALL GEAR TO UNIVERSAL JOINT
    PIN, BALL GEAR TO UNIVERSAL JOINT
    0 ₽
  • 15
    96130A1 BRACKET, STEERING ARM
    BRACKET, STEERING ARM
    0 ₽
  • 16
    10-62233 SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")
    SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")
    0 ₽
  • 17
    24-72847 SPRING, DETENT - STEERING HANDLE
    SPRING, DETENT - STEERING HANDLE
    0 ₽
  • 18
    10-30679 SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")
    SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")
    0 ₽
  • 19
    11-20184 NUT, STEERING ARM BRACKET FASTENING SCREW
    NUT, STEERING ARM BRACKET FASTENING SCREW
    120 ₽
