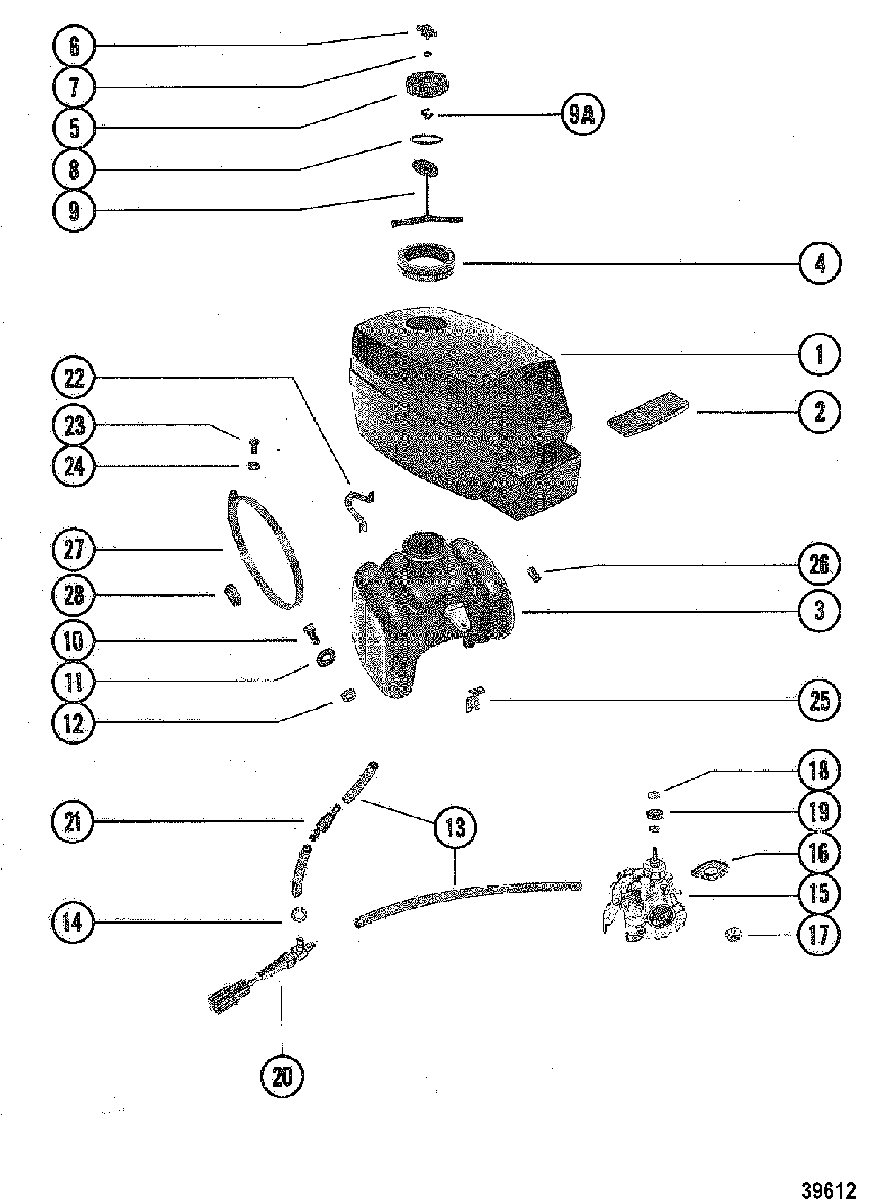

TOP COWL, FUEL TANK AND CARBURETOR для Mercury - 3.6 7145388 & Up
-
№АртикулНазвание
-
12178-8158A1 TOP COWL ASSEMBLY
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & BelowTOP COWL ASSEMBLY
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below -
12178-8158A1 TOP COWL ASSEMBLY
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpTOP COWL ASSEMBLY
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
294108A1 COVER, CARBURETOR (TOP COWL)
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & BelowCOVER, CARBURETOR (TOP COWL)
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below -
294108A1 COVER, CARBURETOR (TOP COWL)
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpCOVER, CARBURETOR (TOP COWL)
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
31253-8082 TANK, Fuel
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & BelowTANK, Fuel
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below -
31253-8082 TANK, Fuel
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpTANK, Fuel
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
427-98807 GROMMET, TOP COWLGROMMET, TOP COWL
-
536-41660A2 CAP ASSEMBLY, FuelCAP ASSEMBLY, Fuel
-
688297 SCREW, VENTSCREW, VENT
-
725-69643 O-RING, VENT SCREWO-RING, VENT SCREW
-
825-26722 O-RING, FUEL CAPO-RING, FUEL CAP
-
988298 RETAINER, FUEL CAPRETAINER, FUEL CAP
-
9A11-91925 PUSH NUT, SPEED-FUEL CAP RETAINERPUSH NUT, SPEED-FUEL CAP RETAINER
-
1010-76630 SCREW, (.250-20 x 1.00), FUEL TANK TO POWERHEADSCREW, (.250-20 x 1.00), FUEL TANK TO POWERHEAD
-
1112-69057 WASHER, FUEL TANK SCREWWASHER, FUEL TANK SCREW
-
1211-29031 NUT, (1/4-20), FUEL TANK SCREWNUT, (1/4-20), FUEL TANK SCREW
-
1332-9912878 LINE, Fuel (12" AND 3 1/4")LINE, Fuel (12" AND 3 1/4")
-
1454-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
151385-7568 CARBURETORCARBURETOR
-
1627-70417 GASKET, CARBURETORGASKET, CARBURETOR
-
1791-30406 NUT, CARBURETOR ATTACHINGNUT, CARBURETOR ATTACHING
-
1888223 FOLLOWER, CamFOLLOWER, Cam
-
1911-4002027 NUT, CAM FOLLOWER TO CARBURETORNUT, CAM FOLLOWER TO CARBURETOR
-
2020-89398 VALVE, FUEL SHUT-OFFVALVE, FUEL SHUT-OFF
-
2135-76934 FILTER, FuelFILTER, Fuel
-
2297417 BRACKET, FUEL TANK-REARBRACKET, FUEL TANK-REAR
-
2310-90565 SCREW, (.250-20 x .310), FUEL TANK CLAMPSCREW, (.250-20 x .310), FUEL TANK CLAMP
-
2412-814806 WASHER, FUEL TANK SCREWWASHER, FUEL TANK SCREW
-
2590501 BRACKET, FUEL TANK-FRONTBRACKET, FUEL TANK-FRONT
-
2623-90396 BUMPER, FUEL TANKBUMPER, FUEL TANK
-
2754-90497 CLAMP, FUEL TANK ATTACHINGCLAMP, FUEL TANK ATTACHING
-
28714933 MOLDING, TRIM-FUEL TANK CLAMPMOLDING, TRIM-FUEL TANK CLAMP
-
-27-98540A83 GASKET SETGASKET SET
