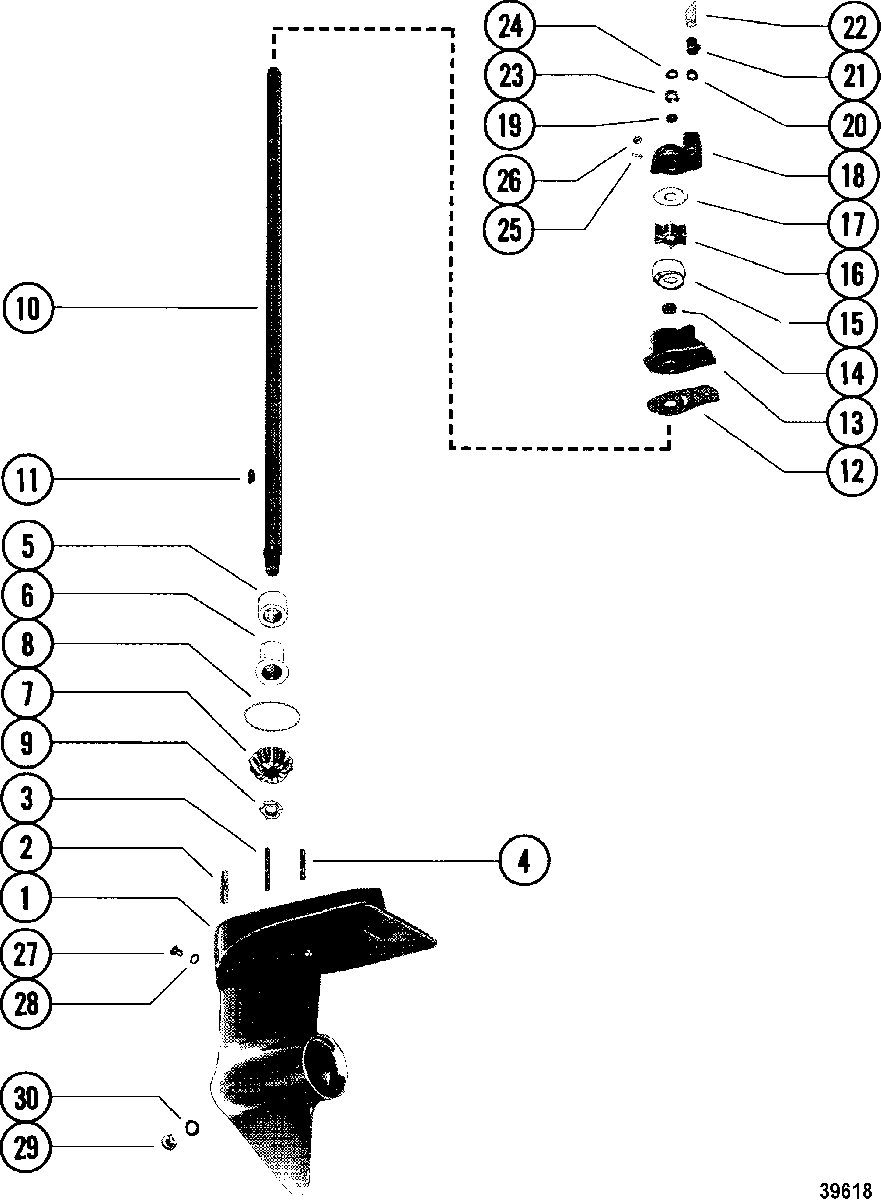

GEAR HOUSING ASSEMBLY(DRIVESHAFT) для Mercury - 3.6 7145388 & Up
-
№АртикулНазвание
-
-1648-7811A18 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571989 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571989 & Below -
-1648-7811A19 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571989 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571989 & Below -
-1648-7811A18 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 -
-1648-7811A19 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 -
-1648-7811A18 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
-1648-7811A19 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
11648-7811A9 GEAR HOUSING ASSEMBLY, BASIC
SN# US-5571989 & BelowGEAR HOUSING ASSEMBLY, BASIC
SN# US-5571989 & Below -
11648-7811A9 GEAR HOUSING ASSEMBLY, BASIC
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & UpGEAR HOUSING ASSEMBLY, BASIC
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & Up -
216-68927 STUD, GEAR HOUSING (2 1/8")
(SHORT SHAFT)STUD, GEAR HOUSING (2 1/8")
(SHORT SHAFT) -
216-75321 STUD, GEAR HOUSING (7 1/4")
(LONG SHAFT)STUD, GEAR HOUSING (7 1/4")
(LONG SHAFT) -
316-68928 STUD, WATER PUMP (2 1/8")STUD, WATER PUMP (2 1/8")
-
416-70741 STUD, WATER PUMP (1 1/8")STUD, WATER PUMP (1 1/8")
-
523-77428 BEARING, GEAR HOUSINGBEARING, GEAR HOUSING
-
623-90770 BUSHING, FLANGED-GEAR HOUSING
SN# US-5571989 & BelowBUSHING, FLANGED-GEAR HOUSING
SN# US-5571989 & Below -
623-90770 BUSHING, FLANGED-GEAR HOUSING
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & UpBUSHING, FLANGED-GEAR HOUSING
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & Up -
743-90795A1 GEAR, Pinion
SN# US-5571989 & BelowGEAR, Pinion
SN# US-5571989 & Below -
743-90796 GEAR, Pinion
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & UpGEAR, Pinion
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & Up -
815-21148A1 SHIM SET (.002-3-5-10)
SN# US-5571989 & BelowSHIM SET (.002-3-5-10)
SN# US-5571989 & Below -
911-20922 NUT, PINION GEARNUT, PINION GEAR
-
1045-87617 DRIVESHAFT
(SHORT SHAFT)DRIVESHAFT
(SHORT SHAFT) -
1045-87663 DRIVESHAFT
(LONG SHAFT)DRIVESHAFT
(LONG SHAFT) -
1128-8M0032835 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
1227-68939 GASKET, WATER PUMP-LOWERGASKET, WATER PUMP-LOWER
-
1346-90844A1 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1426-897153 SEAL, Oil, WATER PUMPSEAL, Oil, WATER PUMP
-
1570977T INSERT, WATER PUMPINSERT, WATER PUMP
-
1647-89980 IMPELLERIMPELLER
-
1768955 FACE PLATE, WATER PUMPFACE PLATE, WATER PUMP
-
1846-95965A2 COVER ASSEMBLY, Water Pump
SN# US-5571989 & BelowCOVER ASSEMBLY, Water Pump
SN# US-5571989 & Below -
1846-95965A2 COVER ASSEMBLY, Water Pump
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & UpCOVER ASSEMBLY, Water Pump
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & Up -
1926-30913 SEAL, Oil, WATER PUMP COVERSEAL, Oil, WATER PUMP COVER
-
2023-13127 BEARING, WATER TUBE SEALBEARING, WATER TUBE SEAL
-
2126-36558 SEAL, WATER TUBESEAL, WATER TUBE
-
2223-31792T SLEEVE, WATER TUBE GUIDESLEEVE, WATER TUBE GUIDE
-
2325-30526 RING, RUBBER-DRIVESHAFTRING, RUBBER-DRIVESHAFT
-
2425-62704 O-RING, DRIVESHAFTO-RING, DRIVESHAFT
-
2512-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, WATER PUMP STUDSWASHER, (.192 x .375 x .0312) Stainless Steel, WATER PUMP STUDS
-
2611-859124 NUT, (#10-32) Stainless Steel, WATER PUMP STUDSNUT, (#10-32) Stainless Steel, WATER PUMP STUDS
-
2710-28653 SCREW, (#10-32 x 0.25), VENT-GEAR HOUSINGSCREW, (#10-32 x 0.25), VENT-GEAR HOUSING
-
2819643 WASHER, VENT SCREWWASHER, VENT SCREW
-
2910-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
3012-191833 WASHER, GREASE FILLER SCREWWASHER, GREASE FILLER SCREW
-
-46-90844A2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-71140A1 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-27-98540A83 GASKET SETGASKET SET
