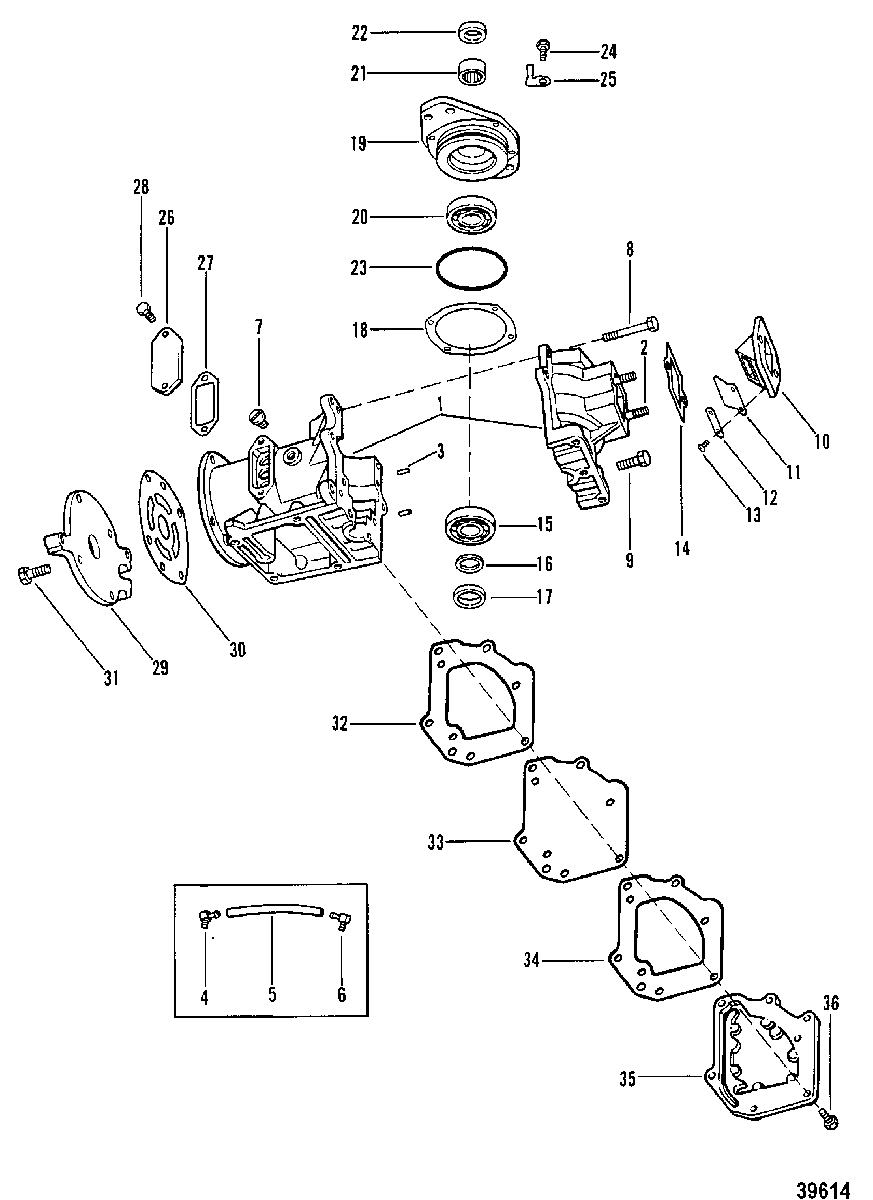

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 3.6 7145388 & Up
-
№АртикулНазвание
-
1843-8694A3 CYLINDER BLOCK ASSEMBLY
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & BelowCYLINDER BLOCK ASSEMBLY
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below -
1843-8694A3 CYLINDER BLOCK ASSEMBLY
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpCYLINDER BLOCK ASSEMBLY
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
216-66021 STUD, CARBURETORSTUD, CARBURETOR
-
317-8M0084726 PIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCKPIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCK
-
422-89275 FITTING, BLEED DRAINFITTING, BLEED DRAIN
-
532-9912688 HOSE, BLEED DRAIN (8")HOSE, BLEED DRAIN (8")
-
622-887801 ELBOW, Tell-Tale Tubing, BLEED DRAINELBOW, Tell-Tale Tubing, BLEED DRAIN
-
722-390721 SCREW, CYLINDER BLOCKSCREW, CYLINDER BLOCK
-
810-73280 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
910-76621 SCREW, CRANKCASE TO CYLINDER BLOCK (1")SCREW, CRANKCASE TO CYLINDER BLOCK (1")
-
1070726 REED BLOCKREED BLOCK
-
1134-35836 REED, INLET VALVEREED, INLET VALVE
-
1234-22215 RETAINER, REEDRETAINER, REED
-
1310-28430 SCREW, (#6-32 x .25), REED AND RETAINER TO BLOCKSCREW, (#6-32 x .25), REED AND RETAINER TO BLOCK
-
1427-357391 GASKET, REED BLOCK TO CRANKCASEGASKET, REED BLOCK TO CRANKCASE
-
1530-72961 BEARING, Ball, CRANKCASE (LOWER)BEARING, Ball, CRANKCASE (LOWER)
-
1623-89794 SPACER, LOWER BALL BEARINGSPACER, LOWER BALL BEARING
-
1726-56397 SEAL, Oil, CRANKCASE (LOWER)SEAL, Oil, CRANKCASE (LOWER)
-
1815-31412A1 SHIMSHIM
-
191132-7536A2 HOUSING ASSEMBLY, BearingHOUSING ASSEMBLY, Bearing
-
2030-72961 BEARING, Ball, BEARING HOUSINGBEARING, Ball, BEARING HOUSING
-
2131-31410 BEARING, Roller, BEARING HOUSINGBEARING, Roller, BEARING HOUSING
-
2226-66301 SEAL, Oil, BEARING HOUSINGSEAL, Oil, BEARING HOUSING
-
2325-20863 O-RING, BEARING HOUSINGO-RING, BEARING HOUSING
-
2410-39002 SCREW, BEARING HOUSING (1/2")SCREW, BEARING HOUSING (1/2")
-
2588222 TAB, GROUND-BEARING HOUSING SCREWTAB, GROUND-BEARING HOUSING SCREW
-
2635658 COVER, TRANSFER COVERCOVER, TRANSFER COVER
-
2727-35657 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
2810-20720 SCREW, (.190-24 x .62)SCREW, (.190-24 x .62)
-
291029-7527 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
3027-416151 GASKET, COVER TO CYLINDER BLOCKGASKET, COVER TO CYLINDER BLOCK
-
3110-76630 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
3227-416141 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
3346234 PLATE, BAFFLE-EXHAUST MANIFOLDPLATE, BAFFLE-EXHAUST MANIFOLD
-
3427-416141 GASKETGASKET
-
3546171 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
3610-49668 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
-27-98540A83 GASKET SETGASKET SET
-
-88675A83 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
