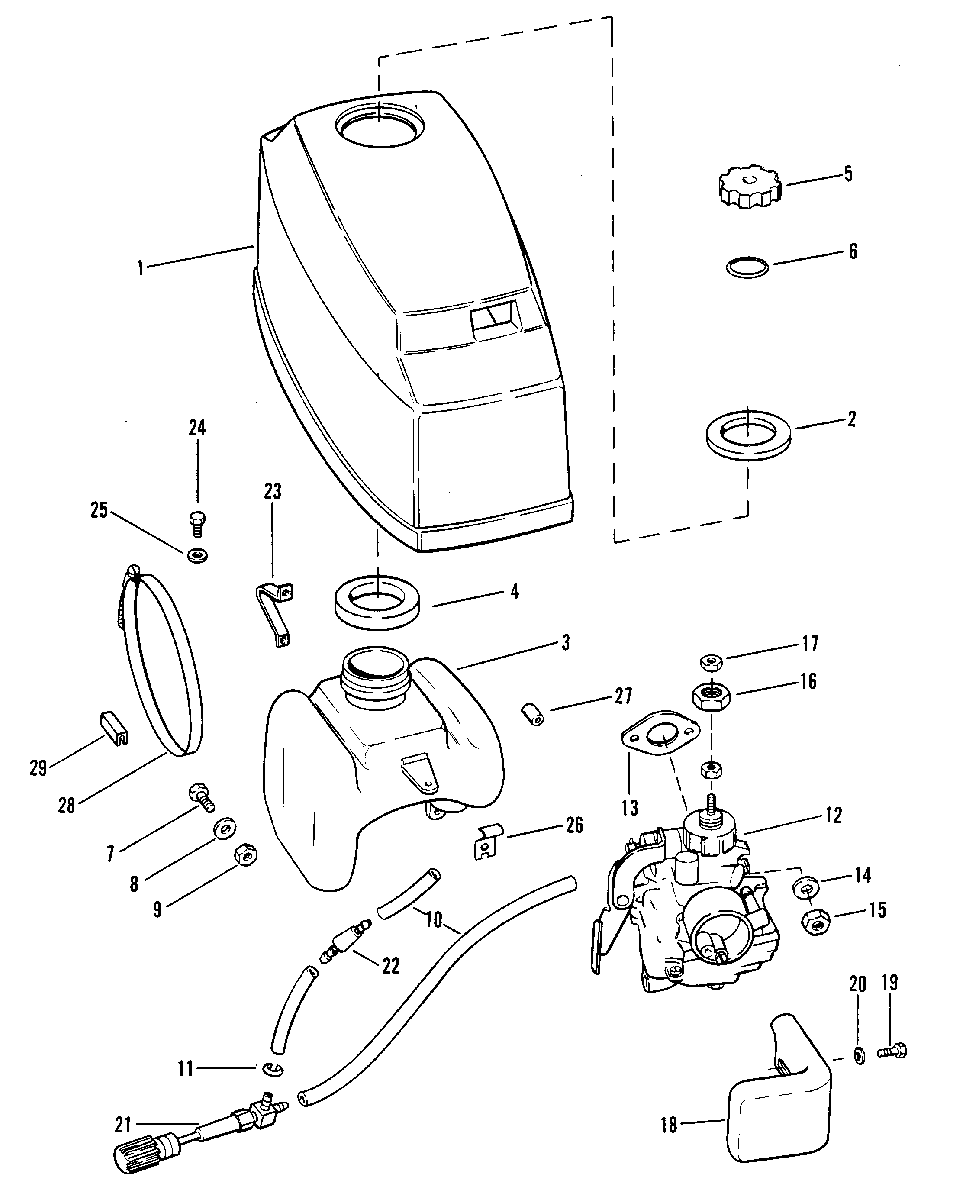

TOP COWL, FUEL TANK AND CARBURETOR для Mercury - 3.5 6202173 AND UP

  • №
    Артикул
    Название
  • 1
    2178-8534A1 TOP COWL
    TOP COWL
  • 2
    27-98807 GASKET, TOP COWL
    GASKET, TOP COWL
  • 3
    1253-8082 FUEL TANK
    FUEL TANK
  • 4
    27-98808 GASKET, FUEL TANK
    GASKET, FUEL TANK
  • 5
    36-41660A2 FUEL CAP ASSEMBLY
    FUEL CAP ASSEMBLY
  • 6
    25-42573 "O" RING, FUEL CAP
    "O" RING, FUEL CAP
  • 7
    10-76630 SCREW, FUEL TANK TO POWERHEAD (1")
    SCREW, FUEL TANK TO POWERHEAD (1")
  • 8
    12-69057 WASHER, FUEL TANK SCREW
    WASHER, FUEL TANK SCREW
  • 9
    11-29031 NUT, FUEL TANK SCREW
    NUT, FUEL TANK SCREW
  • 10
    32-9912878 FUEL LINE (12" AND 3-1/4")
    FUEL LINE (12" AND 3-1/4")
  • 11
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 12
    1385-7568 CARBURETOR
    CARBURETOR
  • 13
    27-70417 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 14
    12-37998 WASHER, CARBURETOR STUD
    WASHER, CARBURETOR STUD
  • 15
    11-30506 NUT, CARBURETOR STUD
    NUT, CARBURETOR STUD
  • 16
    88223 CAM FOLLOWER
    CAM FOLLOWER
  • 17
    11-4002027 NUT, CAM FOLLOWER TO CARBURETOR
    NUT, CAM FOLLOWER TO CARBURETOR
  • 18
    98601 SOUND BOX
    SOUND BOX
  • 19
    10-98254 SCREW, SOUND BOX
    SCREW, SOUND BOX
  • 20
    12-69057 WASHER, SOUND BOX SCREW
    WASHER, SOUND BOX SCREW
  • 21
    20-89398 VALVE, FUEL SHUT-OFF
    VALVE, FUEL SHUT-OFF
  • 22
    35-76934 FUEL FILTER
    FUEL FILTER
  • 23
    97417 BRACKET, FUEL TANK - REAR
    BRACKET, FUEL TANK - REAR
  • 24
    10-90565 SCREW, FUEL TANK CLAMP
    SCREW, FUEL TANK CLAMP
  • 25
    12-26825 WASHER, FUEL TANK SCREW
    WASHER, FUEL TANK SCREW
  • 26
    90501 BRACKET, FUEL TANK - FRONT
    BRACKET, FUEL TANK - FRONT
  • 27
    23-90396 BUMPER, FUEL TANK
    BUMPER, FUEL TANK
  • 28
    54-90497 CLAMP, FUEL TANK ATTACHING
    CLAMP, FUEL TANK ATTACHING
  • 29
    714933 MOULDING, TRIM - FUEL TANK CLAMP
    MOULDING, TRIM - FUEL TANK CLAMP
