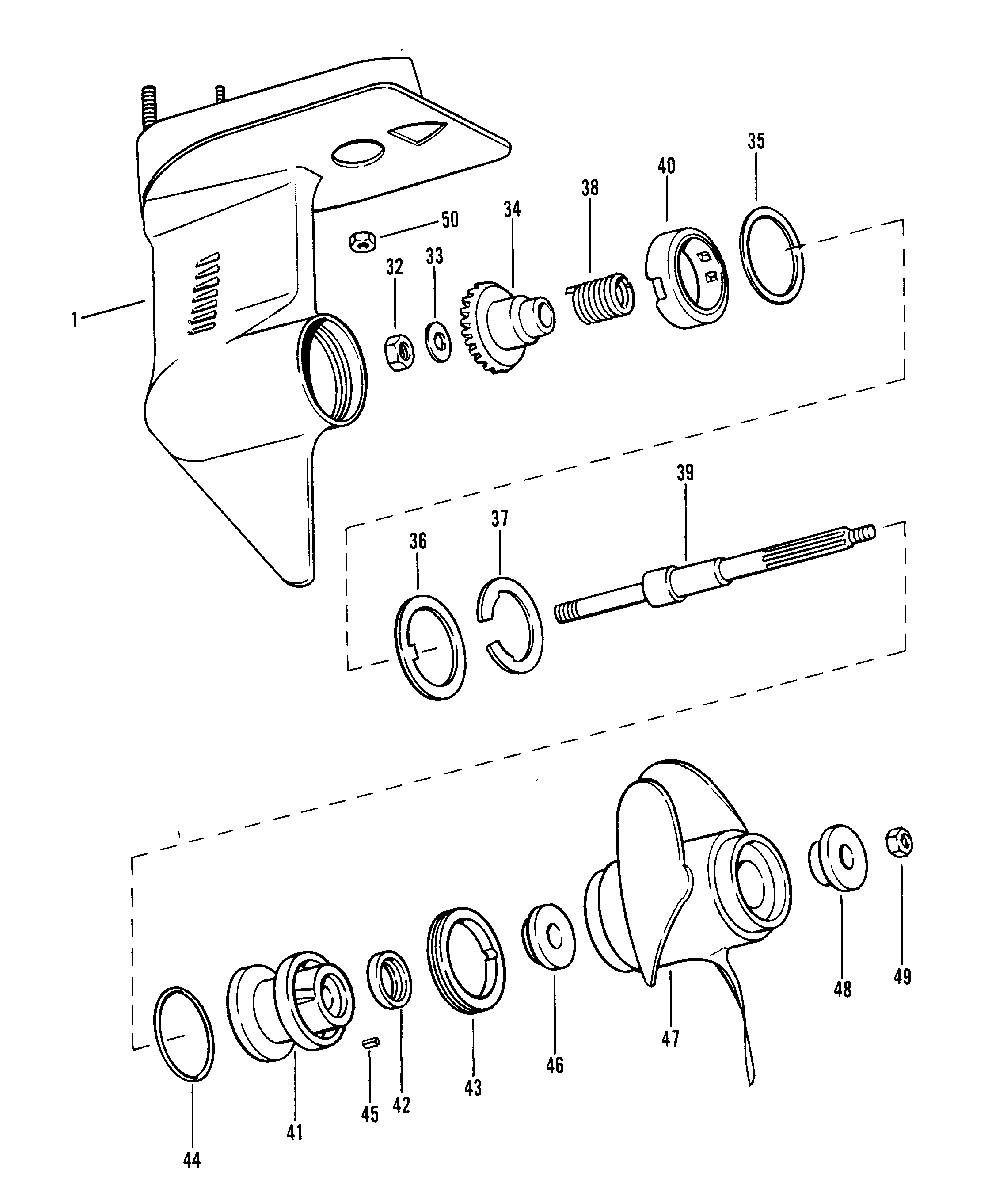

GEAR HOUSING (PROPELLER SHAFT) для Mercury - 3.5 6202173 AND UP

  • №
    Артикул
    Название
  • -
    1648-7811A22 GEAR HOUSING ASS'Y, COMPLETE (SHORT SHAFT)
    GEAR HOUSING ASS'Y, COMPLETE (SHORT SHAFT)
  • -
    1648-7811A23 GEAR HOUSING ASS'Y, COMPLETE (LONG SHAFT)
    GEAR HOUSING ASS'Y, COMPLETE (LONG SHAFT)
  • 1
    1648-7811A9 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 32
    11-20696 NUT, PROPELLER SHAFT
    NUT, PROPELLER SHAFT
  • 33
    12-73672 WASHER, PROPELLER SHAFT
    WASHER, PROPELLER SHAFT
  • 34
    43-90795A1 DRIVE GEAR
    DRIVE GEAR
  • 35
    14-79603 WASHER, SPECIAL - PROPELLER SHAFT
    WASHER, SPECIAL - PROPELLER SHAFT
  • 36
    15-79602A1 SHIM ASSEMBLY, PROPELLER SHAFT (.002-3-5-10-20)
    SHIM ASSEMBLY, PROPELLER SHAFT (.002-3-5-10-20)
  • 37
    53-79601 RETAINING RING
    RETAINING RING
  • 38
    24-91813 SPRING, CLUTCH
    SPRING, CLUTCH
  • 39
    44-93358 PROPELLER SHAFT
    PROPELLER SHAFT
  • 40
    77424 SPACER, PROPELER SHAFT
    SPACER, PROPELER SHAFT
  • 41
    99210A1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 42
    26-98309 OIL SEAL
    OIL SEAL
  • 43
    75812 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 44
    25-68935 O RING, BEARING CARRIER
    O RING, BEARING CARRIER
  • 45
    28-32003 KEY, BEARING CARRIER
    KEY, BEARING CARRIER
  • 46
    70588 THRUST HUB, FORWARD
    THRUST HUB, FORWARD
  • 47
    48-93357A10 PROPELLER ASSEMBLY
    PROPELLER ASSEMBLY
  • 48
    93356 THRUST HUB, AFT
    THRUST HUB, AFT
  • 49
    11-82670911 PROPELLER, NUT
    PROPELLER, NUT
  • 50
    11-82670911 NUT, DRIVE SHAFT HOUSING STUD
    NUT, DRIVE SHAFT HOUSING STUD
