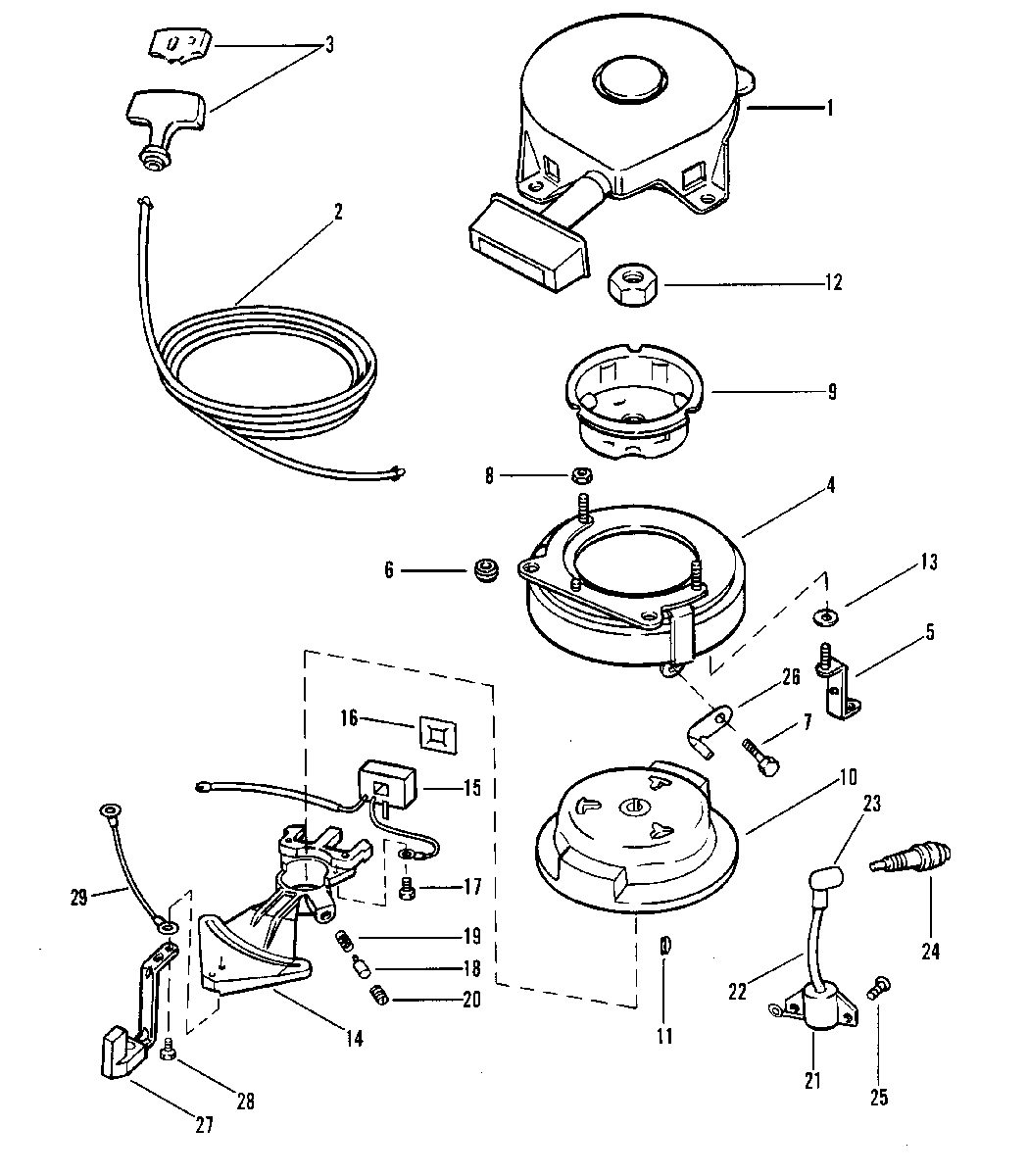

RECOIL STARTER AND FLYWHEEL для Mercury - 3.5 6202173 AND UP

  • №
    Артикул
    Название
  • 1
    50-97175T RECOIL STARTER
    RECOIL STARTER
  • 2
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 3
    79470A1 HANDLE AND RETAINER ASSEMBLY, STARTER ROPE
    HANDLE AND RETAINER ASSEMBLY, STARTER ROPE
  • 4
    93498A2 BRACKET ASSEMBLY, FLYWHEEL GUARD
    BRACKET ASSEMBLY, FLYWHEEL GUARD
  • 5
    87934 LEG, BRACKET
    LEG, BRACKET
  • 6
    25-90329 GROMMET, BRACKET
    GROMMET, BRACKET
  • 7
    10-28635 SCREW, BRACKET AND LEG ATTACHING (5/8")
    SCREW, BRACKET AND LEG ATTACHING (5/8")
  • 8
    11-8267139 NUT, RECOIL STARTER ATTACHING
    NUT, RECOIL STARTER ATTACHING
  • 9
    87886 CUP, STARTER
    CUP, STARTER
  • 10
    256-7530 FLYWHEEL
    FLYWHEEL
  • 11
    28-20094 KEY, FLYWHEEL
    KEY, FLYWHEEL
  • 12
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 13
    12-69057 WASHER, RECOIL STARTER STUD
    WASHER, RECOIL STARTER STUD
  • 14
    98837 HOUSING, IGNITION MODULE
    HOUSING, IGNITION MODULE
  • 15
    88182 IGNITION MODULE
    IGNITION MODULE
  • 16
    88306 RETAINER, IGNITION MODULE
    RETAINER, IGNITION MODULE
  • 17
    10-88307 SCREW, WIRE TO HOUSING (5/16")
    SCREW, WIRE TO HOUSING (5/16")
  • 18
    88188 BUTTON, FRICTION-HOUSING
    BUTTON, FRICTION-HOUSING
  • 19
    24-90304 SPRING, COMPRESSION-FRICTION BUTTON
    SPRING, COMPRESSION-FRICTION BUTTON
  • 20
    10-88186 SET SCREW, FRICTION BUTTON (1/2")
    SET SCREW, FRICTION BUTTON (1/2")
  • 21
    87885 IGNITION COIL
    IGNITION COIL
  • 22
    84-813715A1 LEAD WIRE ASSEMBLY
    LEAD WIRE ASSEMBLY
  • 23
    85-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG
    PROTECTOR ASSEMBLY, SPARK PLUG
  • 24
    33-8M0114743 SPARK PLUG (NGK #BP6HS-10)
    SPARK PLUG (NGK #BP6HS-10)
  • 24
    33-88090 SPARK PLUG (CHAMPION #QL81Y)
    CANADA & BELGIUM
    SPARK PLUG (CHAMPION #QL81Y)
    CANADA & BELGIUM
  • 25
    10-60605 SCREW, IGNITION COIL (3/4")
    SCREW, IGNITION COIL (3/4")
  • 26
    88221 TAB, IDLE STOP
    TAB, IDLE STOP
  • 27
    43377A1 THROTTLE LEVER ASSMEBLY
    THROTTLE LEVER ASSMEBLY
  • 28
    10-20665 SCREW, THROTTLE LEVER
    SCREW, THROTTLE LEVER
  • 29
    84-65773A9 WIRE ASSEMBLY, GROUND
    WIRE ASSEMBLY, GROUND
