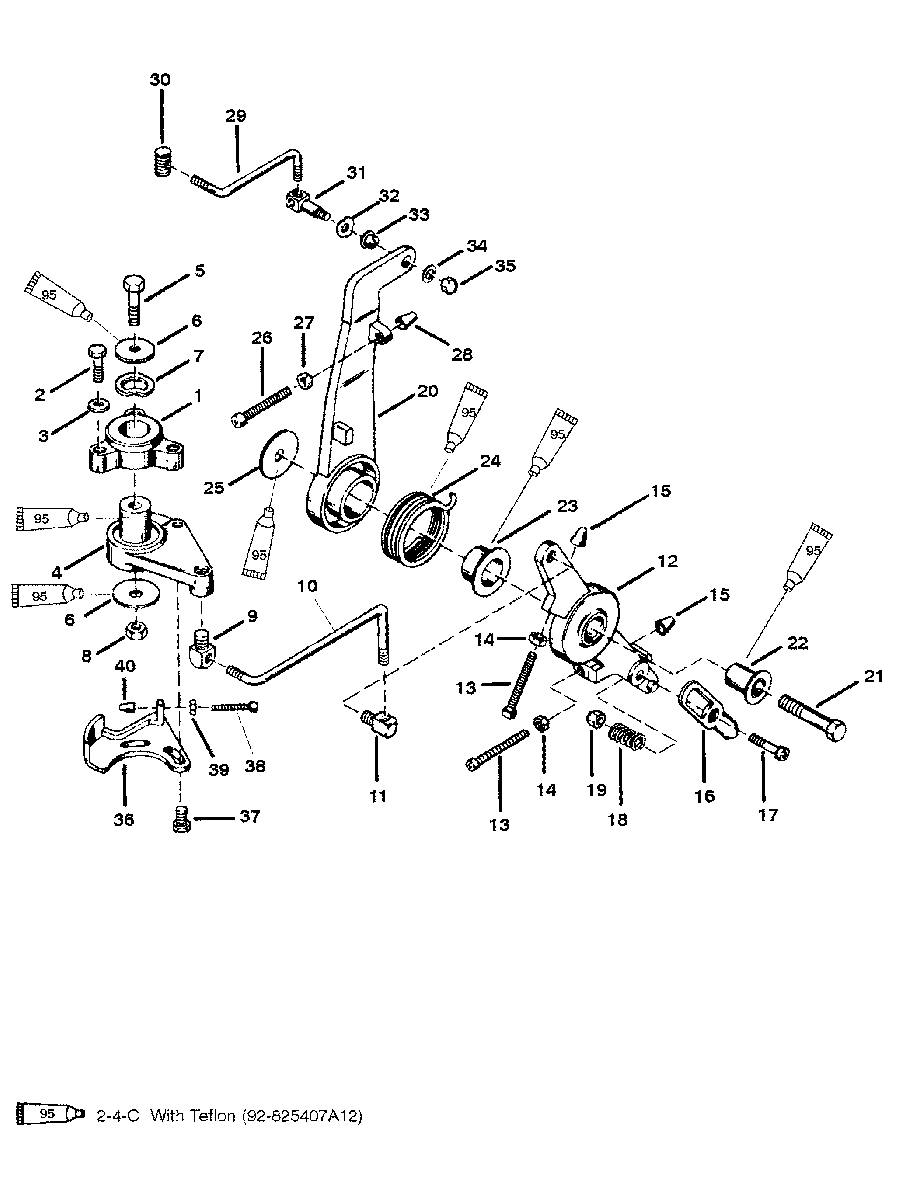

THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS) для Mercury - 30 JET 9570790 AND UP

  • №
    Артикул
    Название
  • 1
    72040T BRACKET-THROTTLE ACTUATOR
    BRACKET-THROTTLE ACTUATOR
  • 2
    10-53576 SCREW-THROTTLE ACTUATOR BRACKET (1-1/8 IN.)
    SCREW-THROTTLE ACTUATOR BRACKET (1-1/8 IN.)
  • 3
    13-26993 LOCKWASHER-THROTTLE ACTUATOR BRACKET SCREW
    LOCKWASHER-THROTTLE ACTUATOR BRACKET SCREW
  • 4
    815603A1 ACTUATOR-THROTTLE
    ACTUATOR-THROTTLE
  • 5
    10-21449 SCREW-BRACKET TO THROTTLE ACTUATOR (2 IN.)
    SCREW-BRACKET TO THROTTLE ACTUATOR (2 IN.)
  • 6
    12-25893 WASHER-BRACKET SCREW
    WASHER-BRACKET SCREW
  • 7
    13-62172 WAVE WASHER-BRACKET SCREW
    WAVE WASHER-BRACKET SCREW
  • 8
    11-29250 NUT-BRACKET SCREW
    NUT-BRACKET SCREW
  • 9
    57440 SWIVEL-LINK ROD TO THROTTLE ACTUATOR
    SWIVEL-LINK ROD TO THROTTLE ACTUATOR
  • 10
    72043 LINK ROD
    LINK ROD
  • 11
    57440 SWIVEL-LINK ROD TO THROTTLE ARM
    SWIVEL-LINK ROD TO THROTTLE ARM
  • 12
    NLA THROTTLE ARM (ORDER 815603A1)
    THROTTLE ARM (ORDER 815603A1)
  • 13
    10-89778 SCREW-ADJUSTING - THROTTLE ARM (2-1/4 IN.)
    SCREW-ADJUSTING - THROTTLE ARM (2-1/4 IN.)
  • 13
    10-25158 SCREW-ADJUSTING - THROTTLE ARM (1-3/4 IN.)
    SCREW-ADJUSTING - THROTTLE ARM (1-3/4 IN.)
  • 14
    11-68219 NUT-ADJUSTING SCREW
    NUT-ADJUSTING SCREW
  • 15
    48039 CAP-ADJUSTING SCREW
    CAP-ADJUSTING SCREW
  • 16
    39483 LATCH-THROTTLE ARM
    LATCH-THROTTLE ARM
  • 17
    10-69026 SCREW-LATCH TO THROTTLE ARM (7/8 IN.)
    SCREW-LATCH TO THROTTLE ARM (7/8 IN.)
  • 18
    24-20099 SPRING-COMPRESSION-LATCH SCREW
    SPRING-COMPRESSION-LATCH SCREW
  • 19
    11-826709109 NUT-LATCH SCREW
    NUT-LATCH SCREW
  • 20
    815607A1 LEVER-SPARK ADVANCE
    LEVER-SPARK ADVANCE
  • 21
    10-818165 SCREW-LEVER AND ARM TO CYLINDER BLOCK (1-3/4 IN.)
    SCREW-LEVER AND ARM TO CYLINDER BLOCK (1-3/4 IN.)
  • 22
    23-55164 BUSHING-LEVER AND ARM SCREW
    BUSHING-LEVER AND ARM SCREW
  • 23
    23-55171 BUSHING-LEVER AND ARM SCREW
    BUSHING-LEVER AND ARM SCREW
  • 24
    24-55162 SPRING-RETURN-SPARK ADVANCE LEVER
    SPRING-RETURN-SPARK ADVANCE LEVER
  • 25
    12-46765 WASHER-LEVER AND ARM SCREW
    WASHER-LEVER AND ARM SCREW
  • 26
    10-25158 SCREW-ADJUSTING-SPARK ADVANCE LEVER (1-3/4 IN.)
    SCREW-ADJUSTING-SPARK ADVANCE LEVER (1-3/4 IN.)
  • 27
    11-68219 NUT-ADJUSTING SCREW
    NUT-ADJUSTING SCREW
  • 28
    48039 CAP-ADJUSTING SCREW
    CAP-ADJUSTING SCREW
  • 29
    76056 LINK ROD-SPARK ADVANCE (2-1/2 IN. LONG)
    LINK ROD-SPARK ADVANCE (2-1/2 IN. LONG)
  • 30
    74897T PIVOT-THREADED-LINK ROD TO TRIGGER
    PIVOT-THREADED-LINK ROD TO TRIGGER
  • 31
    77013A1 SWIVEL-LINK ROD TO SPARK ADVANCE LEVER
    SWIVEL-LINK ROD TO SPARK ADVANCE LEVER
  • 32
    13-29402 WAVE WASHER-SWIVEL
    WAVE WASHER-SWIVEL
  • 33
    23-26856 BUSHLNG-LINK ROD SWIVEL
    BUSHLNG-LINK ROD SWIVEL
  • 34
    12-73288 WASHER-LINK ROD SWIVEL
    WASHER-LINK ROD SWIVEL
  • 35
    11-45774 NUT-LINK ROD SWIVEL
    NUT-LINK ROD SWIVEL
  • 36
    66778T PLATE-THROTTLE ACTUATOR
    PLATE-THROTTLE ACTUATOR
  • 37
    10-46420 SCREW-PLATE TO THROTTLE ACTUATOR (1/2 IN.)
    SCREW-PLATE TO THROTTLE ACTUATOR (1/2 IN.)
  • 38
    10-23015 SCREW-ADJUSTING-PLATE (1 IN.)
    SCREW-ADJUSTING-PLATE (1 IN.)
  • 39
    11-68219 NUT-ADJUSTING SCREW
    NUT-ADJUSTING SCREW
  • 40
    48039 CAP-ADJUSTING SCREW
    CAP-ADJUSTING SCREW
