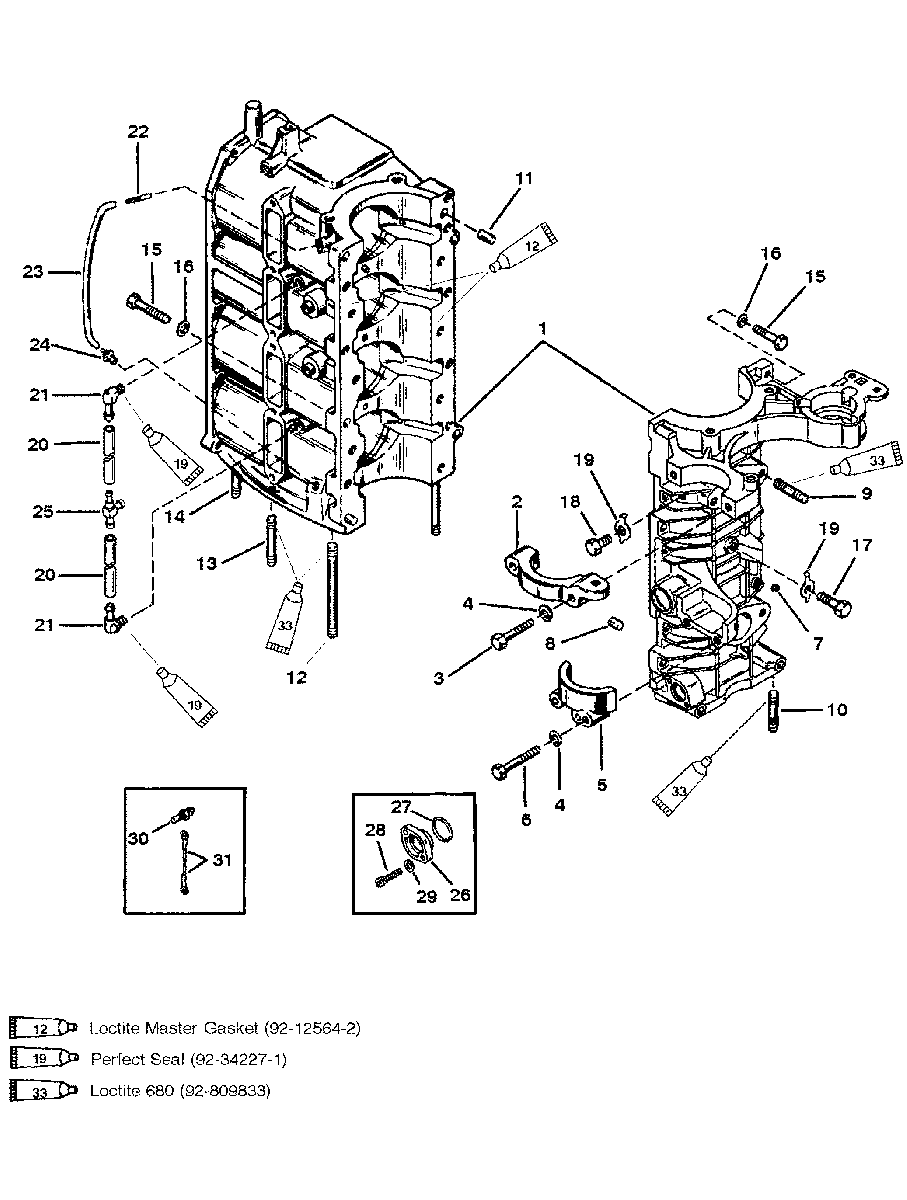

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 30 JET 9570790 AND UP
-
№АртикулНазвание
-
1863-8981T18 CYLINDER BLOCK/CRANKCASE ASSEMBLYCYLINDER BLOCK/CRANKCASE ASSEMBLY
-
272038 BRACKET-STARTER MOTOR (UPPER)BRACKET-STARTER MOTOR (UPPER)
-
310-73279 SCREW-BRACKET TO CRANKCASE (1-7/8 IN.)SCREW-BRACKET TO CRANKCASE (1-7/8 IN.)
-
413-26993 LOCKWASHER-BRACKET SCREWLOCKWASHER-BRACKET SCREW
-
576867 COVER-STARTER MOTOR (LOWER)COVER-STARTER MOTOR (LOWER)
-
610-73279 SCREW-COVER TO CRANKCASE (1-7/8 IN.)SCREW-COVER TO CRANKCASE (1-7/8 IN.)
-
722-390721 PLUGPLUG
-
817-20032 DOWEL PINDOWEL PIN
-
916-64936 STUD-CARBURETOR (1-1/4 IN.)STUD-CARBURETOR (1-1/4 IN.)
-
1016-68165 STUD-CRANKCASE TO DRIVE SHAFT HOUSING (1-5/8 IN.)STUD-CRANKCASE TO DRIVE SHAFT HOUSING (1-5/8 IN.)
-
1117-43044 DOWEL PIN-CRANKCASE TO CYLINDER BLOCKDOWEL PIN-CRANKCASE TO CYLINDER BLOCK
-
1216-87901 STUD (4 IN.)STUD (4 IN.)
-
1316-68166 STUD (2-1/8 IN.)STUD (2-1/8 IN.)
-
1416-68167 STUD (2-1/2 IN.)STUD (2-1/2 IN.)
-
1510-73657 SCREW (1-1/2 IN.)SCREW (1-1/2 IN.)
-
1510-31984 SCREW (1-3/8 IN.)SCREW (1-3/8 IN.)
-
1510-73275 SCREW (2-7/8 IN.)SCREW (2-7/8 IN.)
-
1612-26020 WASHER-CRANKCASE SCREWWASHER-CRANKCASE SCREW
-
1710-20359 SCREW-CENTER MAIN BEARING LOCKING (1 IN.)SCREW-CENTER MAIN BEARING LOCKING (1 IN.)
-
1810-19922075 SCREW (3/4 IN.)
DESIGN II W/LOCKWASHERSCREW (3/4 IN.)
DESIGN II W/LOCKWASHER -
1912-830135 LOCKWASHER
DESIGN II W/LOCKWASHERLOCKWASHER
DESIGN II W/LOCKWASHER -
1810-98260 SCREW (5/8 IN.)
DESIGN I W/TAB WASHERSCREW (5/8 IN.)
DESIGN I W/TAB WASHER -
1914-20091 TAB WASHER
DESIGN I W/TAB WASHERTAB WASHER
DESIGN I W/TAB WASHER -
2032-8M0108355 TUBE-BALANCE-MAIN BEARINGTUBE-BALANCE-MAIN BEARING
-
2122-996642 ELBOW-BALANCE TUBE TO CYLINDER BLOCKELBOW-BALANCE TUBE TO CYLINDER BLOCK
-
2222-56759 CONNECTOR-BLEED HOSE (UPPER)CONNECTOR-BLEED HOSE (UPPER)
-
2332-892024122 HOSE-CYLINDER BLEED (11 IN.)HOSE-CYLINDER BLEED (11 IN.)
-
2421-428671 CHECK VALVE-BLEED HOSE (LOWER)CHECK VALVE-BLEED HOSE (LOWER)
-
2522-812831 PRIMER TEE (OLD DESIGN)PRIMER TEE (OLD DESIGN)
-
268129961 COVER
NON OILCOVER
NON OIL -
2725-48462 O-RING
NON OILO-RING
NON OIL -
2810-55515 SCREW
NON OILSCREW
NON OIL -
2912-89302 WASHER
NON OILWASHER
NON OIL -
3012415 TEMPERATURE SENDER
POWERBOATTEMPERATURE SENDER
POWERBOAT -
3184-88824A6 CABLE ASSEMBLY
POWERBOATCABLE ASSEMBLY
POWERBOAT -
-27-85491A90 GASKET SETGASKET SET
-
-814278T93 POWERHEAD ASSEMBLY, COMPLETEPOWERHEAD ASSEMBLY, COMPLETE
