MAN. TILT COMPONENTS (DESIGN II) для Mercury - 30 JET 9570790 AND UP
-
№АртикулНазвание
-
1893943A01 SHOCK ROD ASSEMBLY KITSHOCK ROD ASSEMBLY KIT
-
2813428 CYLINDER END CAPCYLINDER END CAP
-
3813429 SHOCK PISTON ASSEMBLYSHOCK PISTON ASSEMBLY
-
4813432A3 CYLINDER REBUILD KITCYLINDER REBUILD KIT
-
5893903A01 MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
SUPERSEDES TO ANOTHER PART NUMBERMEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
SUPERSEDES TO ANOTHER PART NUMBER -
5810776 MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
-
6810777 CYLINDER KIT
DESIGN I SEE ILLUSTRATIONCYLINDER KIT
DESIGN I SEE ILLUSTRATION -
7893919A01 SCREW AND SEAL KIT
DESIGN I SEE ILLUSTRATIONSCREW AND SEAL KIT
DESIGN I SEE ILLUSTRATION -
8811227 PUMP
DESIGN I SEE ILLUSTRATIONPUMP
DESIGN I SEE ILLUSTRATION -
9813441 MANIFOLD ASSEMBLY
DESIGN I SEE ILLUSTRATIONMANIFOLD ASSEMBLY
DESIGN I SEE ILLUSTRATION -
68M0055016 CYLINDER KIT
DESIGN II SEE ILLUSTRATIONCYLINDER KIT
DESIGN II SEE ILLUSTRATION -
7811678A6 SCREW AND SEAL KIT
DESIGN II SEE ILLUSTRATIONSCREW AND SEAL KIT
DESIGN II SEE ILLUSTRATION -
8811227 PUMP
DESIGN II SEE ILLUSTRATIONPUMP
DESIGN II SEE ILLUSTRATION -
9811225 MANIFOLD ASSEMBLY
DESIGN II SEE ILLUSTRATIONMANIFOLD ASSEMBLY
DESIGN II SEE ILLUSTRATION -
1010-813436 SCREW KITSCREW KIT
-
11813437 DRIVE SHAFTDRIVE SHAFT
-
12813438 SCREW AND DOWEL PIN KITSCREW AND DOWEL PIN KIT
-
1325-813439A3 SEAL KITSEAL KIT
-
14813434A1 RESERVOIRRESERVOIR
-
1522-8134351 PLUG KITPLUG KIT
-
16893929A01 RELIEF VALVE KITRELIEF VALVE KIT
-
1784-811698 WIRING HARNESSWIRING HARNESS
-
18813445 RESERVOIR CAP KITRESERVOIR CAP KIT
-
1910-813446 SCREW-CAPSCREW-CAP
-
20813447 MOTOR KITMOTOR KIT
-
21813448 END CAPEND CAP
-
22813449A1 ARMATUREARMATURE
-
2312-813450 THRUST WASHER KITTHRUST WASHER KIT
-
24813451 SHELL AND MAGNET KITSHELL AND MAGNET KIT
-
25813452 END FRAME KITEND FRAME KIT
-
2610-813453 BOLT AND NUT KITBOLT AND NUT KIT
-
2717-19607 PINPIN
-
2817-821539 GROOVE PINGROOVE PIN
-
-854472A3 TRIM PUMP, COMPLETE
(INCLUDES ALL PARTS ON THIS PAGE)TRIM PUMP, COMPLETE
(INCLUDES ALL PARTS ON THIS PAGE) -
-8M0118570 TRIM PUMP ASSEMBLY
SUPERSEDES TO ANOTHER PART NUMBERTRIM PUMP ASSEMBLY
SUPERSEDES TO ANOTHER PART NUMBER -

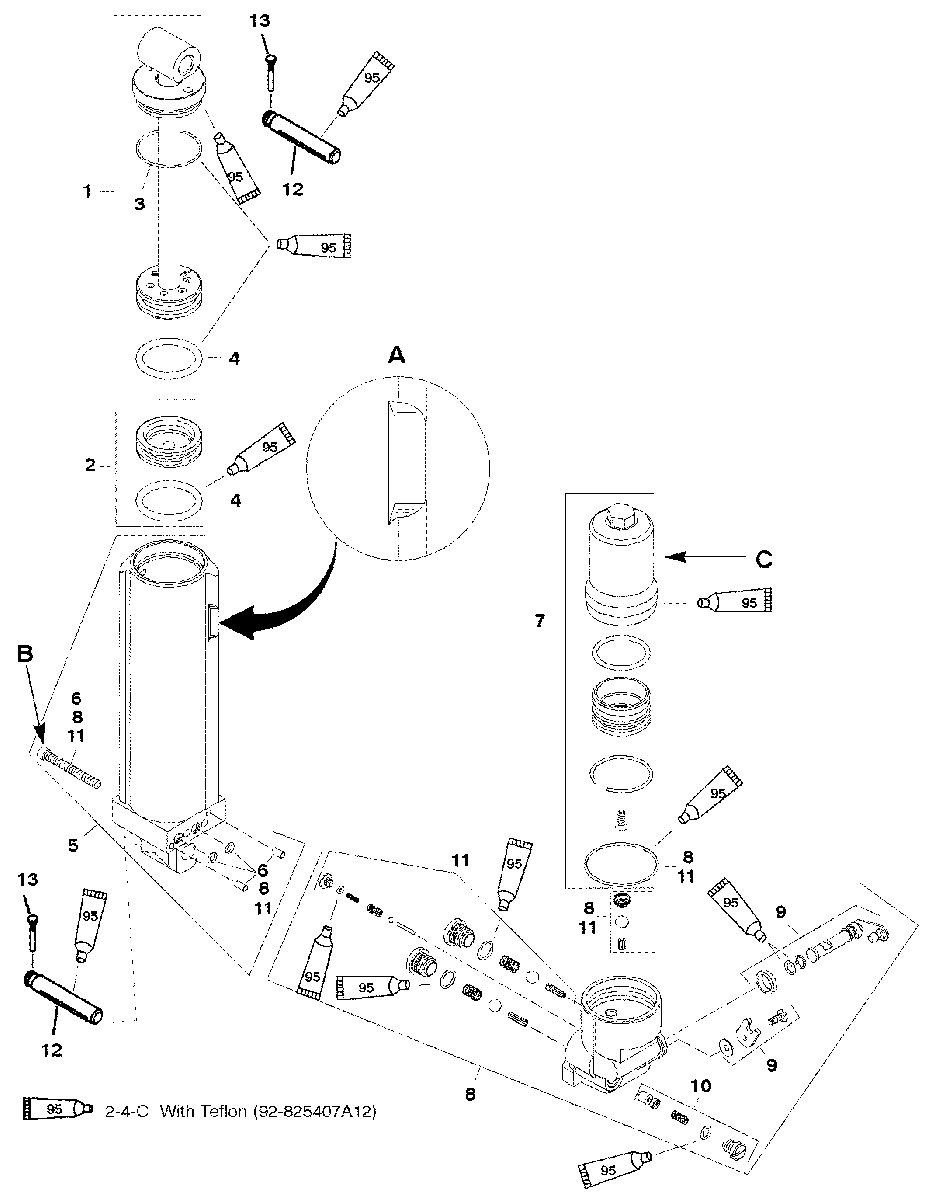

18M0118572 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
2893903A01 MEMORY PISTON ASSEMBLYMEMORY PISTON ASSEMBLY
-
325-893917A01 O RING REBUILD KIT-CYLINDERO RING REBUILD KIT-CYLINDER
-
4NSS O RINGO RING
-
5893918A01 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
6893919A01 SCREW AND SEAL KITSCREW AND SEAL KIT
-
7893920A01 ACCUMULATOR ASSEMBLYACCUMULATOR ASSEMBLY
-
88M0118574 VALVE BODY ASSEMBLYVALVE BODY ASSEMBLY
-
9893923A01 CAM KITCAM KIT
-
10893924A01 VELOCITY VALVE KITVELOCITY VALVE KIT
-
11893925A01 CHECK SYSTEM REPAIR KITCHECK SYSTEM REPAIR KIT
-
-25-893922A01 O RING KITO RING KIT
-
1217-19607 PINPIN
-
1317-821539 GROOVE PINGROOVE PIN
