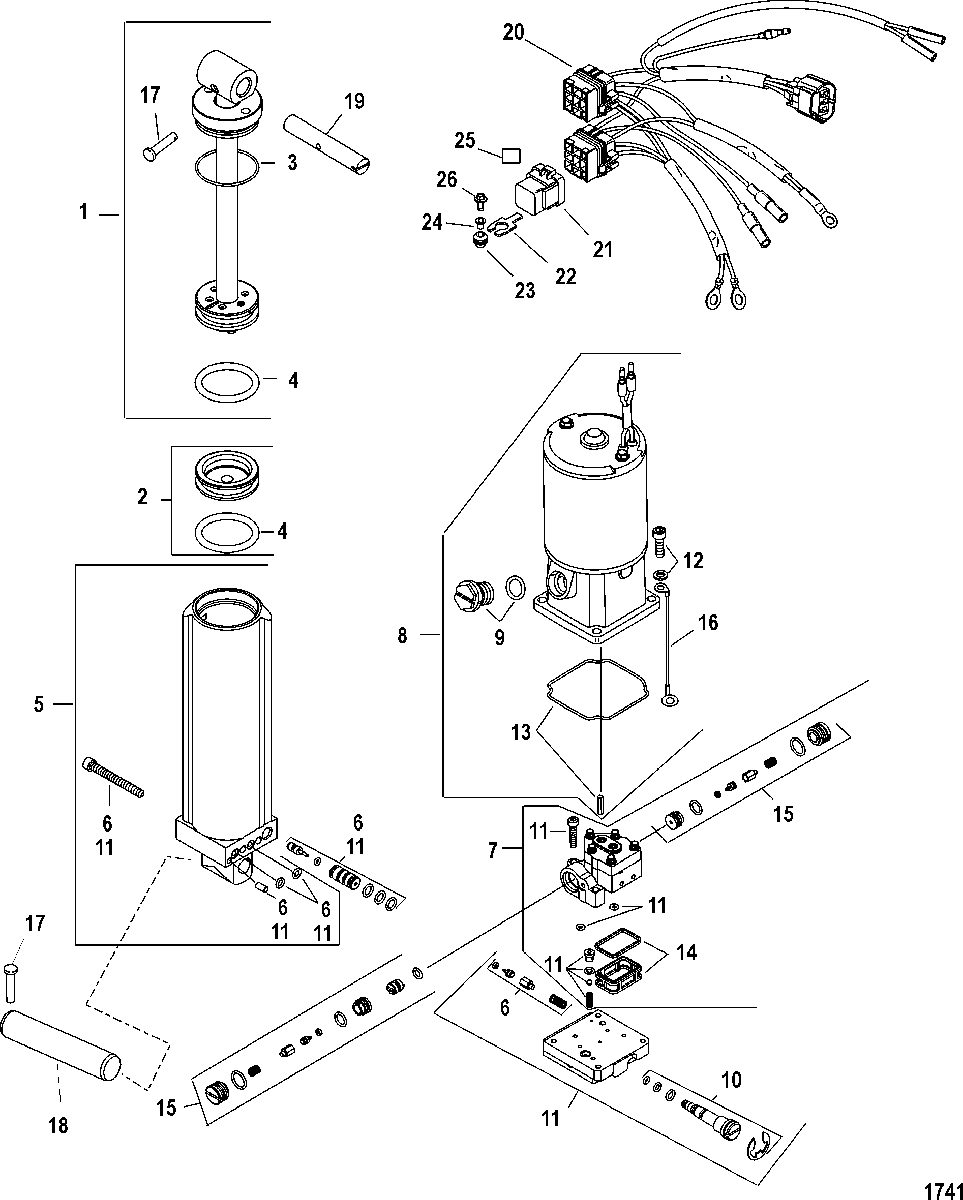

Power Trim для Mercury - 30 (4-STROKE) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • -
    8M0055006 PUMP/MOTOR ASSEMBLY
    (NON-BIGFOOT)
    PUMP/MOTOR ASSEMBLY
    (NON-BIGFOOT)
  • -
    8M0055011 PUMP/MOTOR ASSEMBLY
    (BIGFOOT)
    PUMP/MOTOR ASSEMBLY
    (BIGFOOT)
  • 1
    893943A01 SHOCK ROD KIT
    SHOCK ROD KIT
  • 2
    810776A1 PISTON ASSEMBLY, Memory
    PISTON ASSEMBLY, Memory
  • 3
    25-893902A01 O-RING KIT, Rebuild
    O-RING KIT, Rebuild
  • 4
    NSS NOT SOLD SEPARATE, O Ring
    NOT SOLD SEPARATE, O Ring
  • 5
    8M0055016 CYLINDER ASSEMBLY
    CYLINDER ASSEMBLY
  • 6
    8M0090404 VALVE KIT, Trim Limit
    (NON-BIGFOOT)
    VALVE KIT, Trim Limit
    (NON-BIGFOOT)
  • 6
    893944A01 VALVE KIT, Trim Limit
    (BIGFOOT)
    VALVE KIT, Trim Limit
    (BIGFOOT)
  • 7
    8M0055019 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 8
    893907A02 MOTOR KIT
    MOTOR KIT
  • 9
    22-8134351 PLUG
    PLUG
  • 10
    893929A01 MANUAL RELEASE ASSEMBLY
    MANUAL RELEASE ASSEMBLY
  • 11
    8M0055018 MANIFOLD KIT
    MANIFOLD KIT
  • 12
    10-809876A1 SCREW KIT (MOTOR)
    SCREW KIT (MOTOR)
  • 13
    809877A1 DRIVESHAFT/SEAL KIT
    DRIVESHAFT/SEAL KIT
  • 14
    35-893912A02 FILTER KIT
    FILTER KIT
  • 15
    893913A02 POPPET KIT
    POPPET KIT
  • 16
    88238A18 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • -
    25-8M0089947 O-RING KIT (COMPLETE TRIM)
    O-RING KIT (COMPLETE TRIM)
  • 17
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 18
    17-19607 PIN
    PIN
  • 19
    17-822869001 PIN
    PIN
  • -
    84-826802T21 HARNESS ASSEMBLY, Trim
    SN# 0T178500 & Up
    HARNESS ASSEMBLY, Trim
    SN# 0T178500 & Up
  • -
    84-826802A15 HARNESS/RELAY ASSEMBLY
    SN# 0T178499 & Below
    HARNESS/RELAY ASSEMBLY
    SN# 0T178499 & Below
  • 20
    84-826802T19 HARNESS ASSEMBLY, Trim
    SN# 0T178500 & Up
    HARNESS ASSEMBLY, Trim
    SN# 0T178500 & Up
  • 20
    84-826802A12 HARNESS ASSEMBLY
    SN# 0T178499 & Below
    HARNESS ASSEMBLY
    SN# 0T178499 & Below
  • 21
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 22
    828102 BRACKET
    BRACKET
  • 23
    25-818967 GROMMET
    GROMMET
  • 24
    23-818968 BUSHING
    BUSHING
  • 25
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 26
    10-82684430 SCREW, (M6 x 30)
    SN# 0T294064 & Below
    SCREW, (M6 x 30)
    SN# 0T294064 & Below
