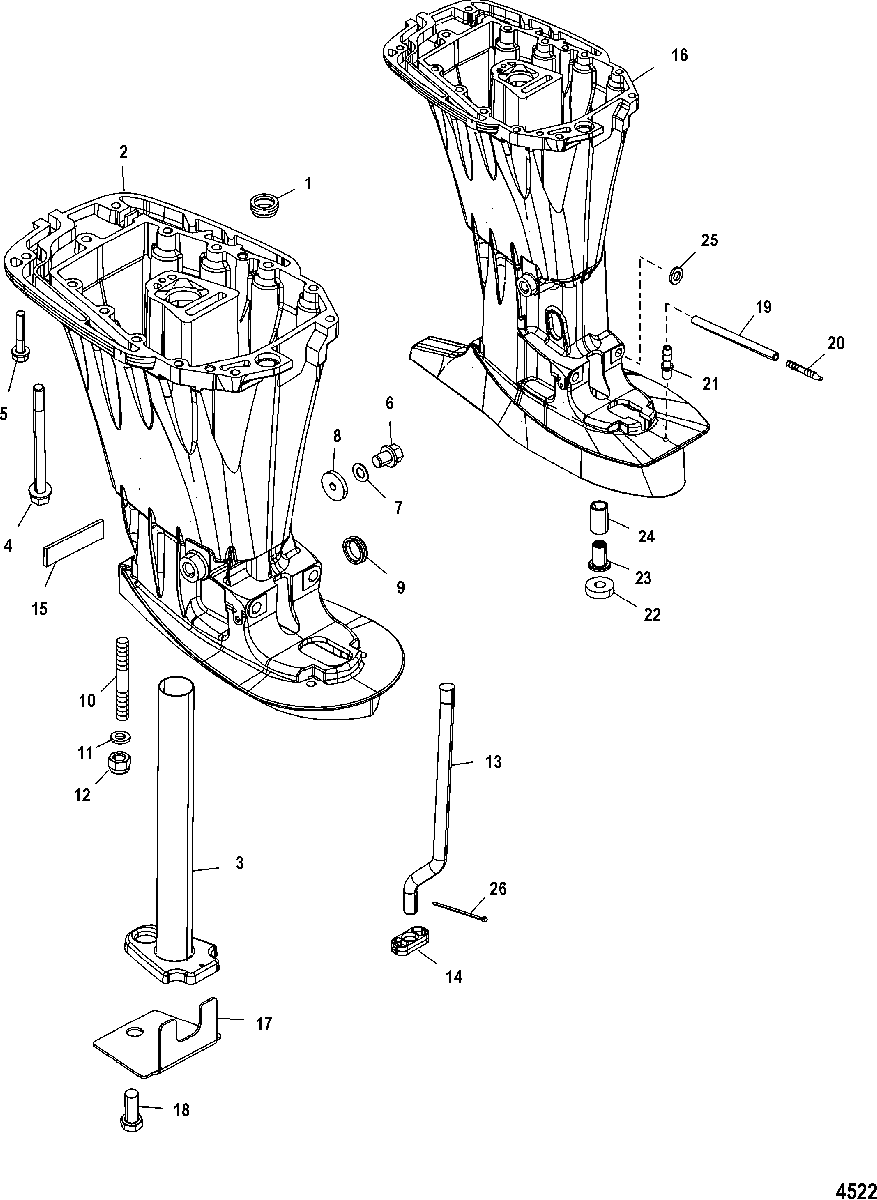

Driveshaft Housing для Mercury - 30 (4-STROKE) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • 1
    42941001 SEAL, Water Tube
    SEAL, Water Tube
  • 2
    1501-850168T5 HOUSING, Driveshaft
    (Short) SN# 0T178500 & Up
    HOUSING, Driveshaft
    (Short) SN# 0T178500 & Up
  • 2
    3532-825218T7 HOUSING ASSEMBLY, Driveshaft
    (Long) SN# 0T178500 & Up
    HOUSING ASSEMBLY, Driveshaft
    (Long) SN# 0T178500 & Up
  • 2
    1501-850168T3 HOUSING, Driveshaft
    (Short) SN# 0T178499 & Below
    HOUSING, Driveshaft
    (Short) SN# 0T178499 & Below
  • 2
    3532-825218T5 HOUSING ASSEMBLY, Driveshaft
    (Long) SN# 0T178499 & Below
    HOUSING ASSEMBLY, Driveshaft
    (Long) SN# 0T178499 & Below
  • 3
    NSS NOT SOLD SEPARATE, Exhaust Pipe
    (SHORT)
    NOT SOLD SEPARATE, Exhaust Pipe
    (SHORT)
  • 3
    825220T06 PIPE, Exhaust
    (LONG)
    PIPE, Exhaust
    (LONG)
  • 4
    10-824459110 SCREW, (M8 x 110) Stainless Steel
    SCREW, (M8 x 110) Stainless Steel
  • 5
    10-88960845 SCREW, (M8 x 45) (M8 X 45)
    SCREW, (M8 x 45) (M8 X 45)
  • 6
    8288181 PLUG, Drain
    PLUG, Drain
  • 7
    27-828816 GASKET
    GASKET
  • 8
    826276 BUMPER
    BUMPER
  • 9
    25-8M4504002 GROMMET
    (LONG)
    GROMMET
    (LONG)
  • 10
    16-823984 STUD, (M10 x 50)
    (NON-BIGFOOT)
    STUD, (M10 x 50)
    (NON-BIGFOOT)
  • 10
    16-903501 STUD, (M10 x 100)
    (BIGFOOT)
    STUD, (M10 x 100)
    (BIGFOOT)
  • 11
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 12
    11-40140 NUT, (M10)
    NUT, (M10)
  • 13
    32-897970A01 TUBE, Water
    (SHORT)
    TUBE, Water
    (SHORT)
  • 13
    32-897971A01 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 14
    54-828529 GUIDE
    GUIDE
  • 15
    8M0043364 BUMPER
    (LONG)
    BUMPER
    (LONG)
  • 16
    1500-8M0118178 HOUSING, Driveshaft
    (Bigfoot) SN# 0T178500 & Up
    HOUSING, Driveshaft
    (Bigfoot) SN# 0T178500 & Up
  • 16
    1503-852421T3 HOUSING ASSEMBLY, Driveshaft
    (Bigfoot) SN# 0T178499 & Below
    HOUSING ASSEMBLY, Driveshaft
    (Bigfoot) SN# 0T178499 & Below
  • 17
    8M4503628 PLATE
    (BIGFOOT)
    PLATE
    (BIGFOOT)
  • 18
    10-1993325 SCREW, (M10 x 25 MM)
    (BIGFOOT)
    SCREW, (M10 x 25 MM)
    (BIGFOOT)
  • 19
    22-85822A7 SPEEDOMETER PICK UP
    (BIGFOOT)
    SPEEDOMETER PICK UP
    (BIGFOOT)
  • 20
    22-85822T CONNECTOR, Straight
    (BIGFOOT)
    CONNECTOR, Straight
    (BIGFOOT)
  • 21
    22-13035002 FITTING
    (BIGFOOT)
    FITTING
    (BIGFOOT)
  • 22
    23-813745 SPACER
    (BIGFOOT)
    SPACER
    (BIGFOOT)
  • 23
    43585 COUPLING
    (BIGFOOT)
    COUPLING
    (BIGFOOT)
  • 24
    23-855623 BUSHING
    (BIGFOOT)
    BUSHING
    (BIGFOOT)
  • 25
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    (BIGFOOT)
    WASHER, (.453 x .812 x .105) Stainless Steel
    (BIGFOOT)
  • 26
    54-816311T TIE STRAP, (8.00 Inches)
    (BIGFOOT)
    TIE STRAP, (8.00 Inches)
    (BIGFOOT)
