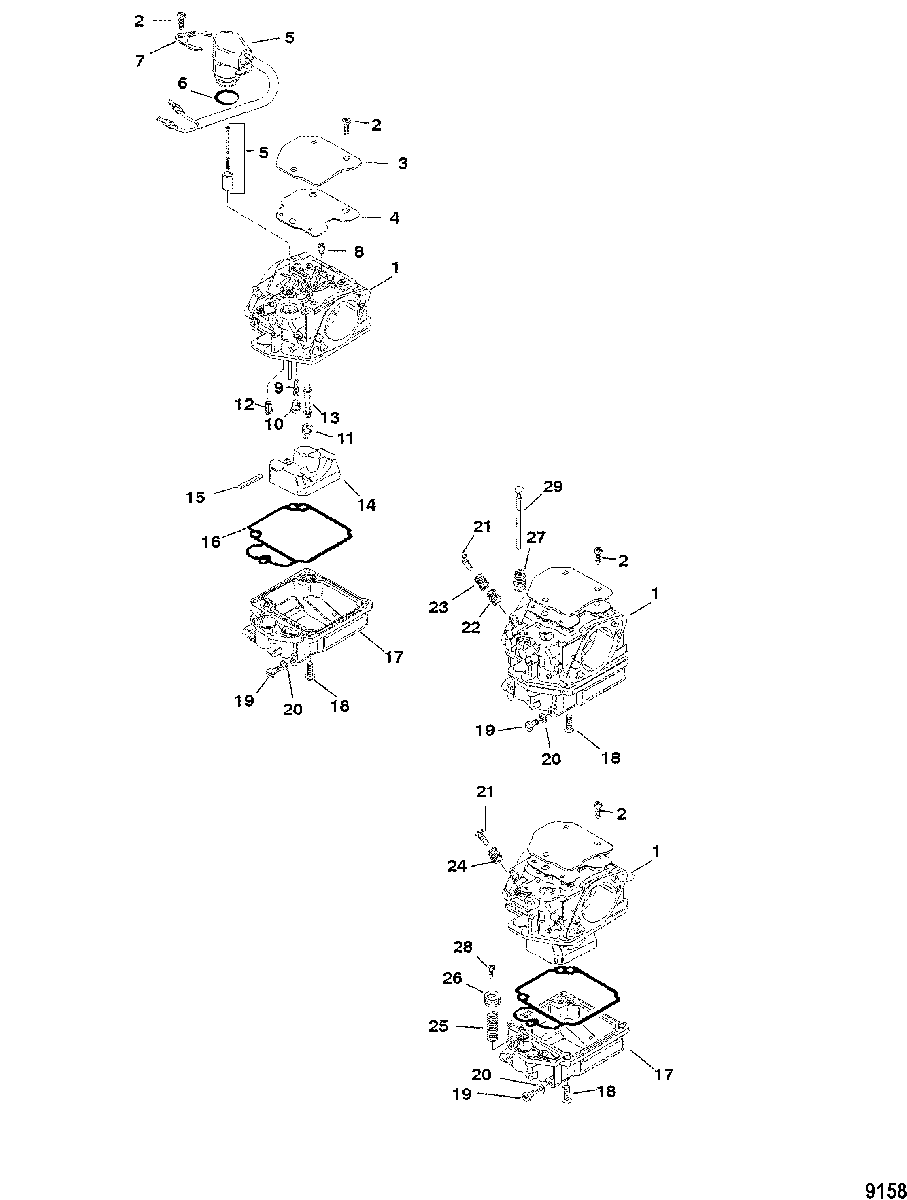

Carburetor(0T178499 and Below) для Mercury - 30 (4-STROKE) 0P017000 THRU 0P153499

  • №
    Артикул
    Название
  • 1
    3329-830276T27 CARBURETOR
    (TOP)
    CARBURETOR
    (TOP)
  • 1
    3329-830276T11 CARBURETOR
    (CENTER)
    CARBURETOR
    (CENTER)
  • 1
    3329-830276T12 CARBURETOR
    (BOTTOM)
    CARBURETOR
    (BOTTOM)
  • 2
    10-854246 SCREW
    SCREW
  • 3
    854245 PLATE
    PLATE
  • 4
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 5
    854254T ENRICHENER
    ENRICHENER
  • 6
    NSS NOT SOLD SEPARATE, O Ring
    NOT SOLD SEPARATE, O Ring
  • 7
    854255 PLATE
    PLATE
  • 8
    803919 IDLE JET
    IDLE JET
  • 9
    803912 JET
    JET
  • 10
    19-854248 PLUG, Rubber
    PLUG, Rubber
  • 11
    803915 JET
    JET
  • 12
    854247 VALVE, Float
    VALVE, Float
  • 13
    803914 MAIN NOZZLE
    MAIN NOZZLE
  • 14
    854253 FLOAT
    FLOAT
  • 15
    NSS NOT SOLD SEPARATE, Float Pin
    NOT SOLD SEPARATE, Float Pin
  • 16
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 17
    803916 FLOAT BOWL
    (TOP)
    FLOAT BOWL
    (TOP)
  • 17
    803917 FLOAT BOWL
    (CENTER/BOTTOM)
    FLOAT BOWL
    (CENTER/BOTTOM)
  • 18
    10-8542463 SCREW
    SCREW
  • 19
    10-8542462 SCREW, Drain
    SCREW, Drain
  • 20
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 21
    10-803925 SCREW, Synchronization
    (TOP/CENTER)
    SCREW, Synchronization
    (TOP/CENTER)
  • 21
    10-803913 SCREW
    (BOTTOM)
    SCREW
    (BOTTOM)
  • 22
    24-803923 SPRING
    (TOP/CENTER)
    SPRING
    (TOP/CENTER)
  • 23
    24-803924 SPRING
    (TOP/CENTER)
    SPRING
    (TOP/CENTER)
  • 24
    24-854249 SPRING
    (BOTTOM)
    SPRING
    (BOTTOM)
  • 25
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 26
    854251 PLUNGER
    PLUNGER
  • 27
    NSS NOT SOLD SEPARATE, Rubber Bellows
    NOT SOLD SEPARATE, Rubber Bellows
  • 28
    NSS NOT SOLD SEPARATE, Screw-Plunger Retaining
    NOT SOLD SEPARATE, Screw-Plunger Retaining
  • 29
    NSS NOT SOLD SEPARATE, Plunger Rod
    NOT SOLD SEPARATE, Plunger Rod
  • -
    854256 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
