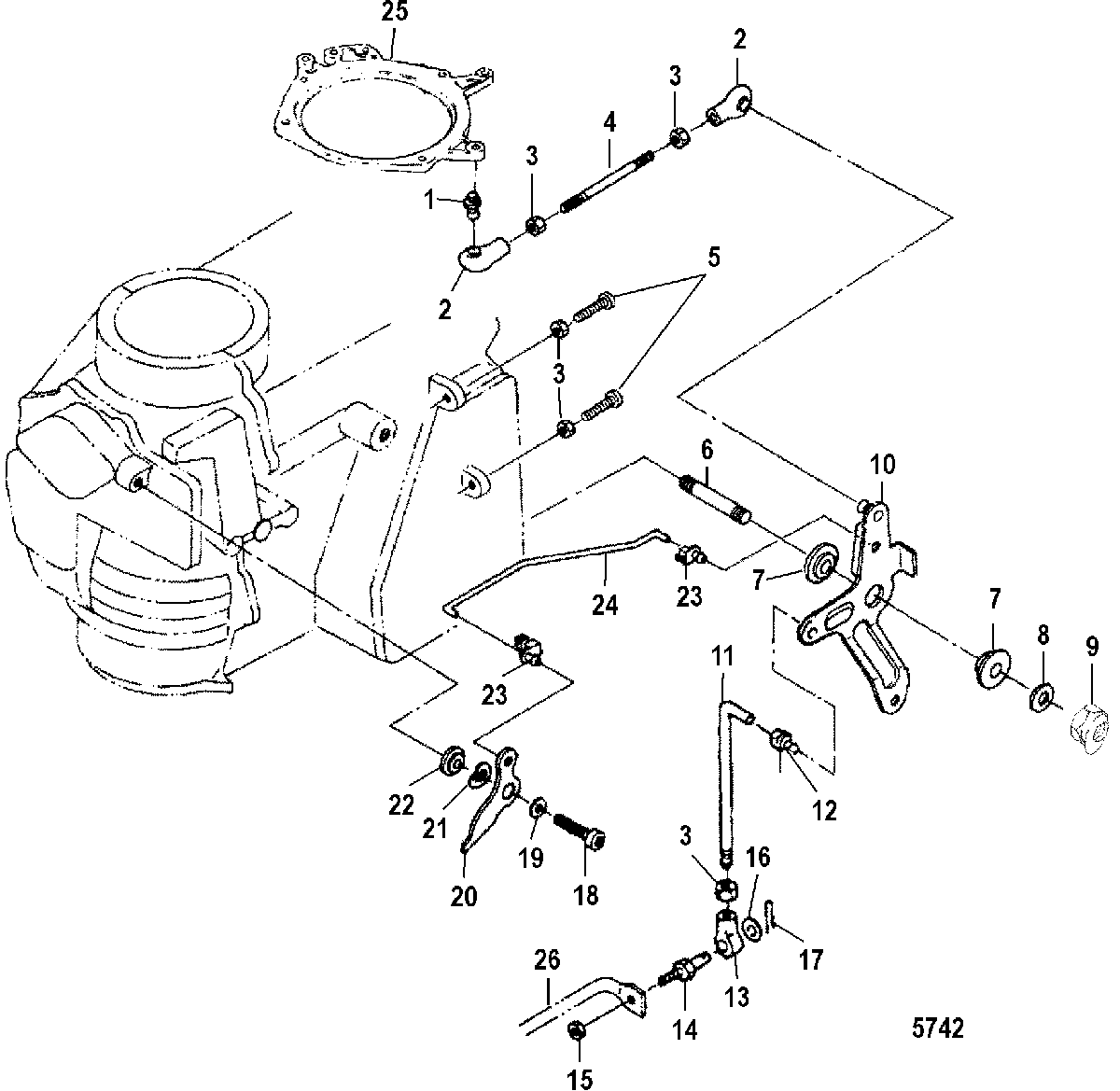

Throttle Linkage для Mercury - 30 (2 CYL.) (International) 0N001875 THRU 0N055504
-
№АртикулНазвание
-
1853744001 BALL JOINTBALL JOINT
-
2853745 CAPCAP
-
311-16081 NUTNUT
-
4853746004 LINK RODLINK ROD
-
510-16123 SCREWSCREW
-
616-879194297 STUDSTUD
-
723-853743 BUSHINGBUSHING
-
812-8M0135942 WASHERWASHER
-
911-815088 NUT, (M8)NUT, (M8)
-
108M0103002 ARM, ActuatorARM, Actuator
-
11853747009 LINK RODLINK ROD
-
12853748 SNAP, Link RodSNAP, Link Rod
-
138537451 ROD JOINTROD JOINT
-
14853749001 PINPIN
-
1511-400212 NUTNUT
-
1612-953925 WASHERWASHER
-
1718-8150262 COTTER PINCOTTER PIN
-
1810-162452 SCREWSCREW
-
1912-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
208537503 CAM, ThrottleCAM, Throttle
-
2113-8537232 WAVE WASHERWAVE WASHER
-
2223-8537431 BUSHINGBUSHING
-
23176431 SNAP, Link RodSNAP, Link Rod
-
24853747010 ROD, Throttle LinkROD, Throttle Link
-
25853710 SET RING
(Shown as Reference #14 on Cylinder Block)SET RING
(Shown as Reference #14 on Cylinder Block) -
26160932 SHAFT, Throttle
(Shown as Reference #16 on Tiller Handle)SHAFT, Throttle
(Shown as Reference #16 on Tiller Handle)
