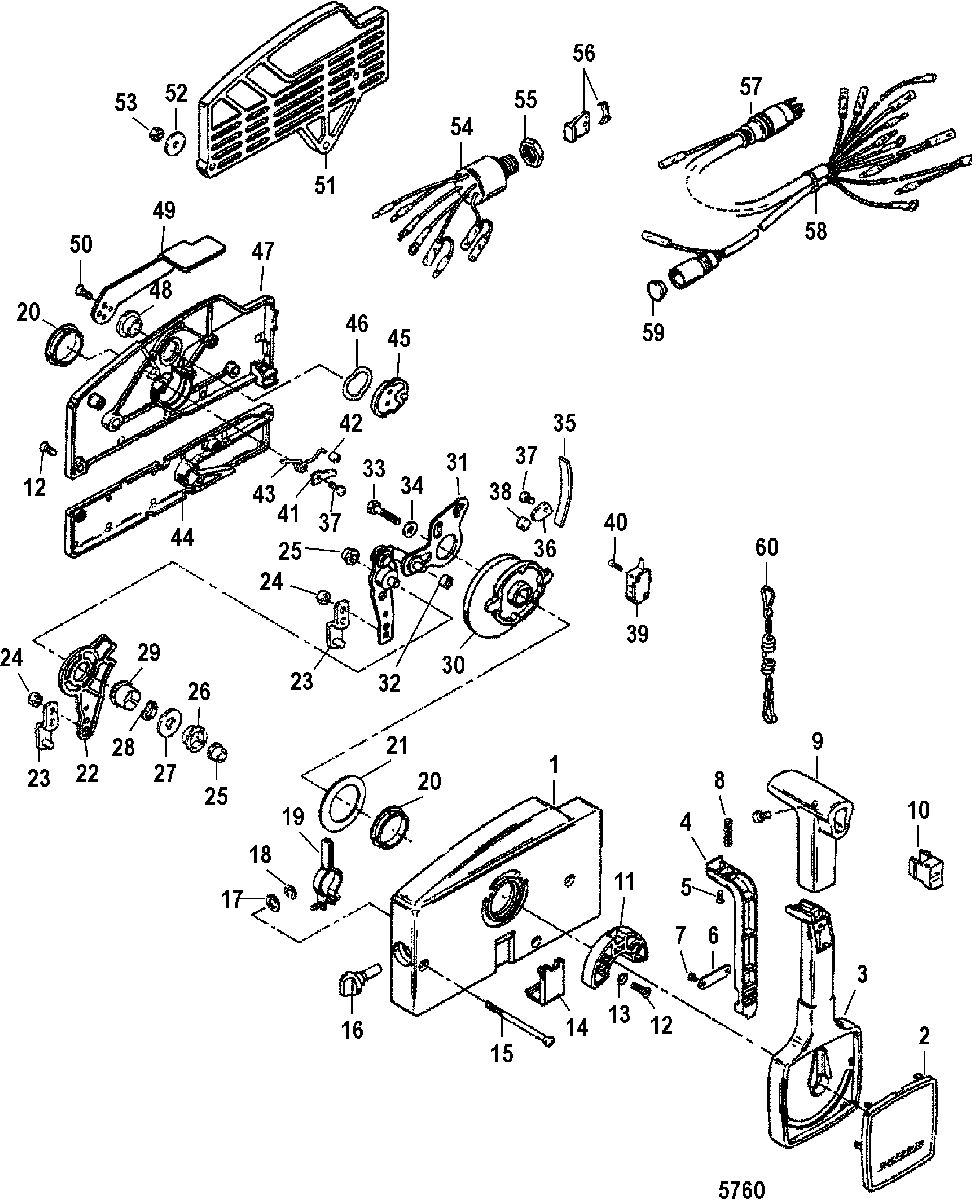

Remote Control(With Quicksilver Decal) для Mercury - 30 (2 CYL.) (International) 0N001875 THRU 0N055504

  • №
    Артикул
    Название
  • -
    881170A9 REMOTE CONTROL
    (With Qucksilver Decal)
    REMOTE CONTROL
    (With Qucksilver Decal)
  • 1
    16910A1 HOUSING KIT, Front
    HOUSING KIT, Front
  • 2
    16916A1 CAP ASSEMBLY
    CAP ASSEMBLY
  • 3
    16913T LEVER
    LEVER
  • 4
    16915 LOCK ARM
    LOCK ARM
  • 5
    10-40056105 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 6
    16921 BRACKET, Lock Bar Support
    BRACKET, Lock Bar Support
  • 7
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 8
    24-16924 SPRING
    SPRING
  • 9
    16914 GRIP
    GRIP
  • 10
    17016 PLUG
    PLUG
  • 11
    16899T HOLDER, Neutral Lock
    HOLDER, Neutral Lock
  • 12
    10-40118107 SCREW, (M5 x 18)
    SCREW, (M5 x 18)
  • 13
    13-16923 LOCKWASHER, External
    LOCKWASHER, External
  • 14
    16917 COVER
    COVER
  • 15
    10-40116110T SCREW, (M6 x 110)
    SCREW, (M6 x 110)
  • 16
    16920 BRAKE ADJUSTER
    BRAKE ADJUSTER
  • 17
    12-16896 WASHER
    WASHER
  • 18
    53-13194 RING, Retaining
    RING, Retaining
  • 19
    16895 ARM ASSEMBLY, Brake
    ARM ASSEMBLY, Brake
  • 20
    23-16875 BEARING, (1.750 Inside Diameter)
    BEARING, (1.750 Inside Diameter)
  • 21
    12-16874 WASHER
    WASHER
  • 22
    16918A3 GEAR SHIFT ASSEMBLY
    GEAR SHIFT ASSEMBLY
  • 23
    54-85899A1 CLIP ASSEMBLY
    CLIP ASSEMBLY
  • 24
    11-401385 NUT, (M5)
    NUT, (M5)
  • 25
    23-16871 BEARING (.36 Inches Inside Diameter)
    BEARING (.36 Inches Inside Diameter)
  • 26
    23-16868 BEARING, (.750 Inside Diameter)
    BEARING, (.750 Inside Diameter)
  • 27
    12-16870 WASHER
    WASHER
  • 28
    13-16872 LOCKWASHER
    LOCKWASHER
  • 29
    23-16869 BEARING (.87 Inches Inside Diameter)
    BEARING (.87 Inches Inside Diameter)
  • 30
    16892T GEAR, Drive
    GEAR, Drive
  • 31
    850723A2 PLATE/STUD ASSEMBLY
    PLATE/STUD ASSEMBLY
  • 32
    16873 ROLLER, Cam
    ROLLER, Cam
  • 33
    10-4007154 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 34
    12-12038 WASHER
    WASHER
