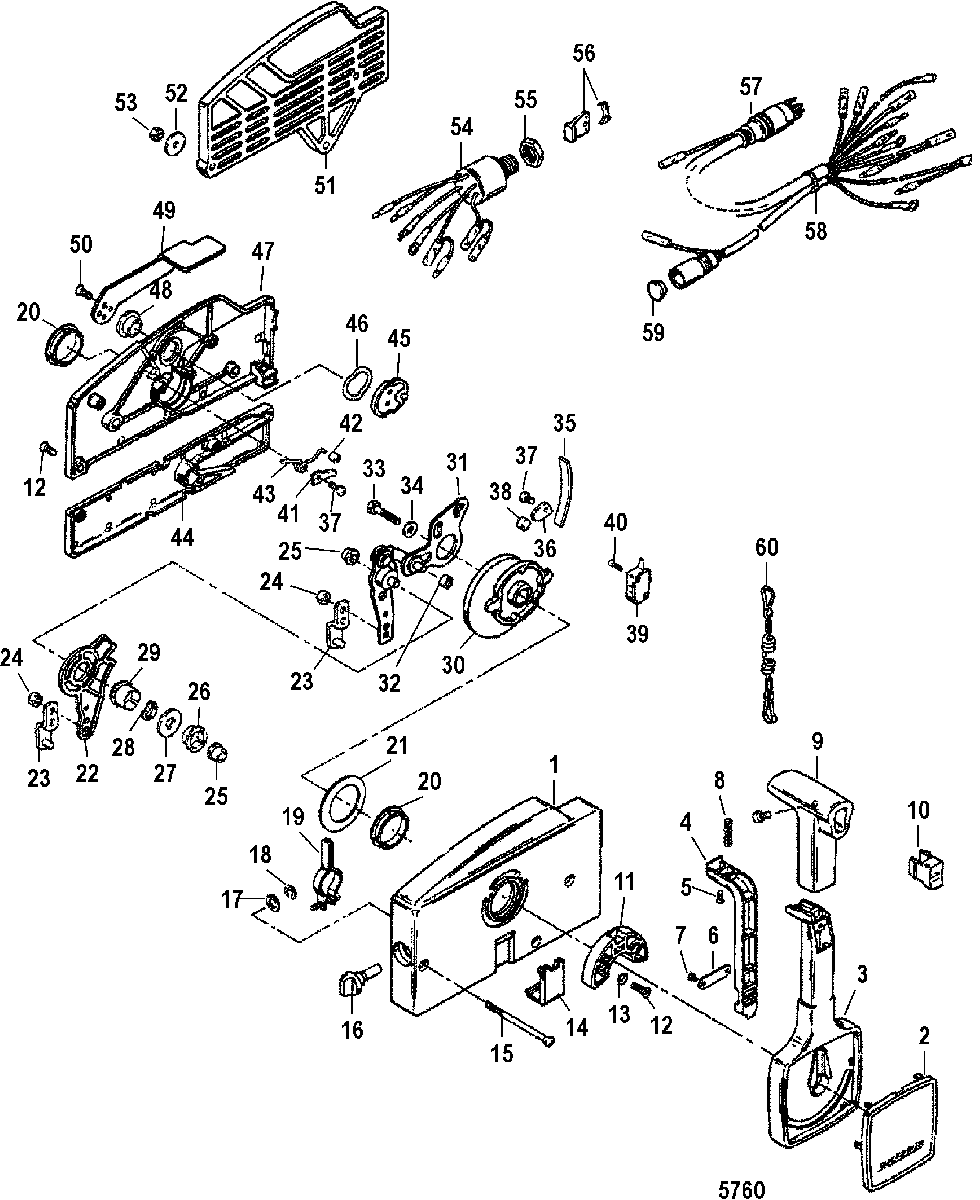

Remote Control(With Quicksilver Logo) для Mercury - 30 (2 CYL.) (International) 0N001875 THRU 0N055504

  • №
    Артикул
    Название
  • -
    881170A9 REMOTE CONTROL
    (With Quicksilver Decal)
    REMOTE CONTROL
    (With Quicksilver Decal)
  • 35
    24-16882 SPRING
    SPRING
  • 36
    16880 CLIP
    CLIP
  • 37
    10-4005683 SCREW, (M4 x 6)
    SCREW, (M4 x 6)
  • 38
    16879 ROLLER, Detent
    ROLLER, Detent
  • 39
    87-17277T SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 40
    10-4005647 SCREW, (M3 x 16)
    SCREW, (M3 x 16)
  • 41
    16886 CLIP
    CLIP
  • 42
    16884 ROLLER
    ROLLER
  • 43
    24-16888 SPRING
    SPRING
  • 44
    16912T COVER (Bottom)
    COVER (Bottom)
  • 45
    16883 DRUM ASSEMBLY
    DRUM ASSEMBLY
  • 46
    13-16922 WAVE WASHER
    WAVE WASHER
  • 47
    16911T COVER (Top)
    COVER (Top)
  • 48
    23-16887 BEARING, (.810 Inside Diameter) (.81 Inches Inside Diameter)
    BEARING, (.810 Inside Diameter) (.81 Inches Inside Diameter)
  • 49
    16919A1 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 50
    10-40118106 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 51
    17063T SPACER
    SPACER
  • 52
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 53
    11-401196 NUT, (M6)
    NUT, (M6)
  • 54
    87-17009A5 SWITCH ASSEMBLY, Ignition (See Below For Keys)
    SWITCH ASSEMBLY, Ignition (See Below For Keys)
  • 55
    11-879755 NUT, Special - Chrome Brass
    NUT, Special - Chrome Brass
  • 56
    90468A1 COVER ASSEMBLY, Key
    COVER ASSEMBLY, Key
  • 57
    84-850731A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 58
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 59
    19-11023 PLUG
    PLUG
  • 60
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • -
    894911 KEY, Ignition (1A)
    KEY, Ignition (1A)
  • -
    894912 KEY, Ignition (1B)
    KEY, Ignition (1B)
  • -
    894913 KEY, Ignition (1C)
    KEY, Ignition (1C)
  • -
    894914 KEY, Ignition (1D)
    KEY, Ignition (1D)
  • -
    894915 KEY, Ignition (1E)
    KEY, Ignition (1E)
  • -
    894916 KEY, Ignition (1F)
    KEY, Ignition (1F)
  • -
    894917 KEY, Ignition (2A)
    KEY, Ignition (2A)
  • -
    894918 KEY, Ignition (2B)
    KEY, Ignition (2B)
  • -
    894919 KEY, Ignition (2C)
    KEY, Ignition (2C)
  • -
    8949110 KEY, Ignition (2D)
    KEY, Ignition (2D)
  • -
    8949111 KEY, Ignition (2E)
    KEY, Ignition (2E)
  • -
    8949112 KEY, Ignition (2F)
    KEY, Ignition (2F)
