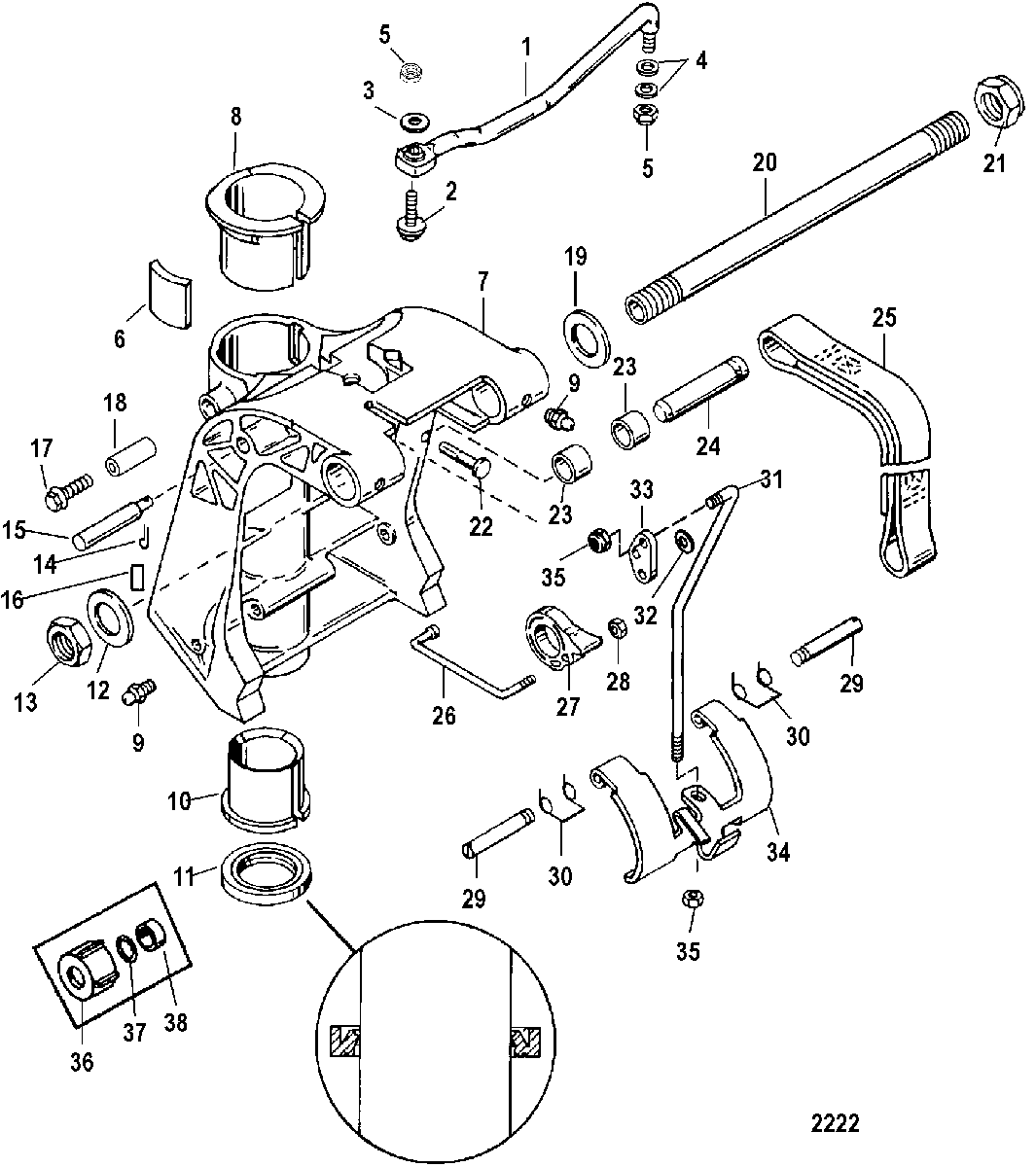

Swivel Bracket(Remote Control) для Mercury - 25 (4-STROKE) 0T409000 THRU 1B344298

  • №
    Артикул
    Название
  • 1
    19608A14 ATTACHING KIT, Engine Steering
    ATTACHING KIT, Engine Steering
  • 2
    10-823919 SCREW, (.375-24 x 1.500)
    SCREW, (.375-24 x 1.500)
  • 3
    12-8M0109680 WASHER, (.390 x .546 x .12)
    WASHER, (.390 x .546 x .12)
  • 4
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 5
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 6
    822397 PUCK
    PUCK
  • 7
    3410-827402T5 SWIVEL BRACKET
    SN# USA-0T800999/BEL-0P267999 & Below
    SWIVEL BRACKET
    SN# USA-0T800999/BEL-0P267999 & Below
  • 7
    3410-827402T5 SWIVEL BRACKET
    SN# USA-0T801000/BEL-0P268000 & Up
    SWIVEL BRACKET
    SN# USA-0T801000/BEL-0P268000 & Up
  • 8
    23-8217711 BUSHING (UPPER)
    BUSHING (UPPER)
  • 9
    22-74036 FITTING, Grease
    FITTING, Grease
  • 10
    23-821777 BUSHING (LOWER)
    BUSHING (LOWER)
  • 11
    26-822404 SEAL
    SEAL
  • 12
    12-19619 WASHER
    WASHER
  • 13
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 14
    18-26811 COTTER PIN
    COTTER PIN
  • 15
    821799002 PIN, Pivot, Reverse Lock
    SN# USA-0T800999/BEL-0P267999 & Below
    PIN, Pivot, Reverse Lock
    SN# USA-0T800999/BEL-0P267999 & Below
  • 15
    821799002 PIN, Pivot, Reverse Lock
    SN# USA-0T801000/BEL-0P268000 & Up
    PIN, Pivot, Reverse Lock
    SN# USA-0T801000/BEL-0P268000 & Up
  • 16
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 17
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 18
    8282451 SEAL
    SEAL
  • 19
    12-19619 WASHER
    WASHER
  • 20
    8M0041938 TILT TUBE
    TILT TUBE
  • 21
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 22
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 23
    23-823507 BUSHING
    BUSHING
  • 24
    17-822480 PIN, Pivot (UPPER)
    PIN, Pivot (UPPER)
  • 25
    8217751 STRAP
    STRAP
  • 26
    821800 LINK (UPPER)
    LINK (UPPER)
  • 27
    8217981 LEVER
    LEVER
  • 28
    11-F1669 NUT, (#6-32)
    NUT, (#6-32)
  • 29
    826578 PIN
    PIN
  • 30
    24-F366300 SPRING
    SPRING
  • 31
    8M0026107 LINK
    LINK
  • 32
    12-71055 WASHER
    WASHER
  • 33
    825181003 ARM
    ARM
  • 34
    8289861 LOCK, Reverse
    LOCK, Reverse
  • 35
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 36
    19624A1 SEAL KIT
    SEAL KIT
  • 37
    25-29619 O-RING, (.583 x .103)
    O-RING, (.583 x .103)
  • 38
    23-78861 SPACER
    SPACER
