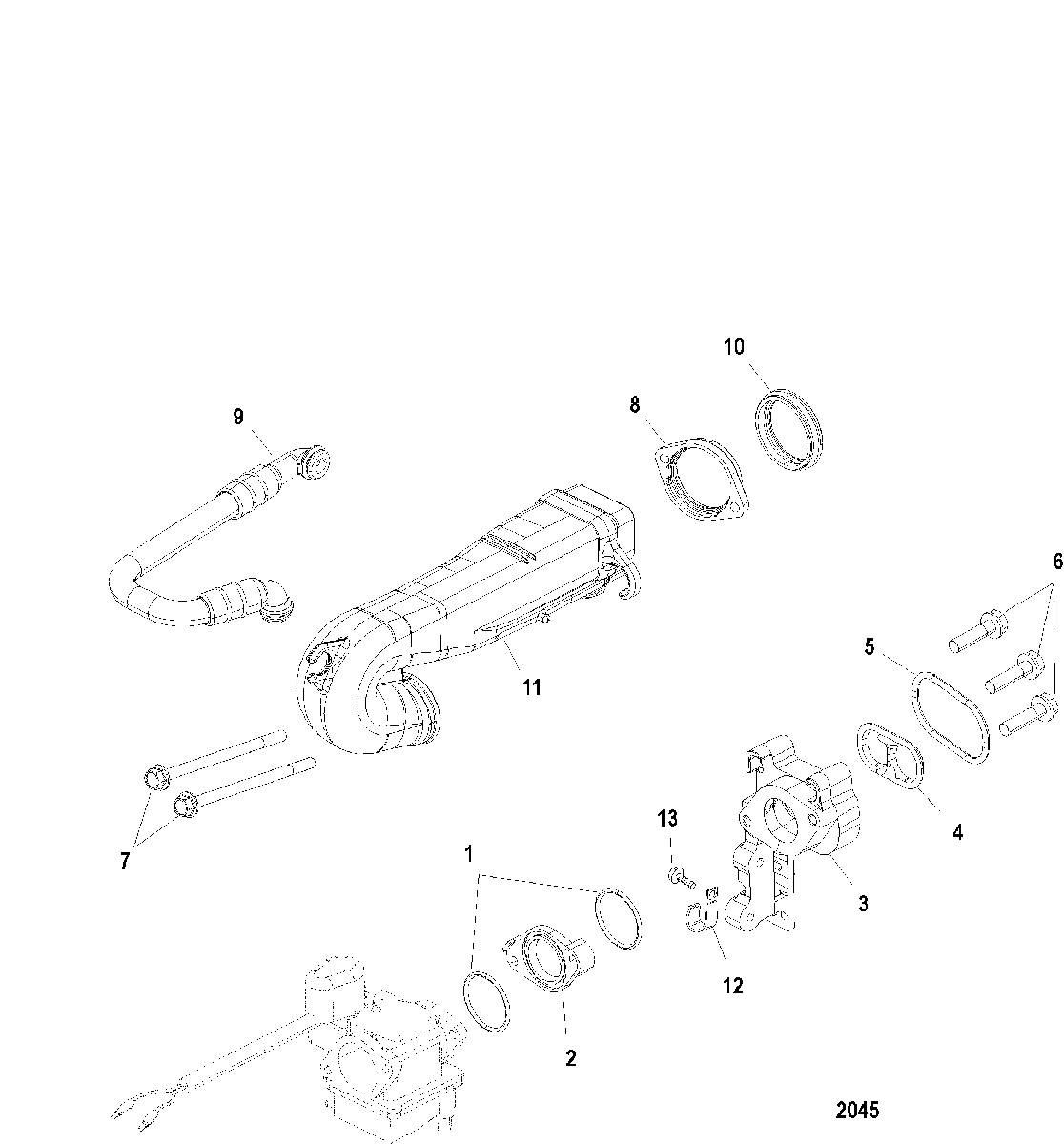

Intake для Mercury - 25 (4-STROKE) 0T409000 THRU 1B344298

  • №
    Артикул
    Название
  • 1
    25-33466 O-RING
    O-RING
  • 2
    8536451 ISOLATOR, Carburetor
    ISOLATOR, Carburetor
  • 3
    830277F01 DIFFUSER
    SN# USA-0T800999/BEL-0P267999 & Below
    DIFFUSER
    SN# USA-0T800999/BEL-0P267999 & Below
  • 3
    830277F01 DIFFUSER
    SN# USA-0T801000/BEL-0P268000 & Up
    DIFFUSER
    SN# USA-0T801000/BEL-0P268000 & Up
  • 4
    855219 INSERT
    INSERT
  • 5
    878431 SEAL
    SEAL
  • 6
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 7
    10-821704100 SCREW, M6 x 100
    SCREW, M6 x 100
  • 8
    855838 CLAMP
    CLAMP
  • 9
    32-854787A1 HOSE ASSEMBLY, Breather, To Breather Cover
    HOSE ASSEMBLY, Breather, To Breather Cover
  • 10
    855837 SEAL
    SEAL
  • 11
    832011A2 INTAKE ASSEMBLY, Air
    INTAKE ASSEMBLY, Air
  • 12
    54-28700 CLAMP
    CLAMP
  • 13
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • -
    27-830270A02 GASKET SET
    GASKET SET
