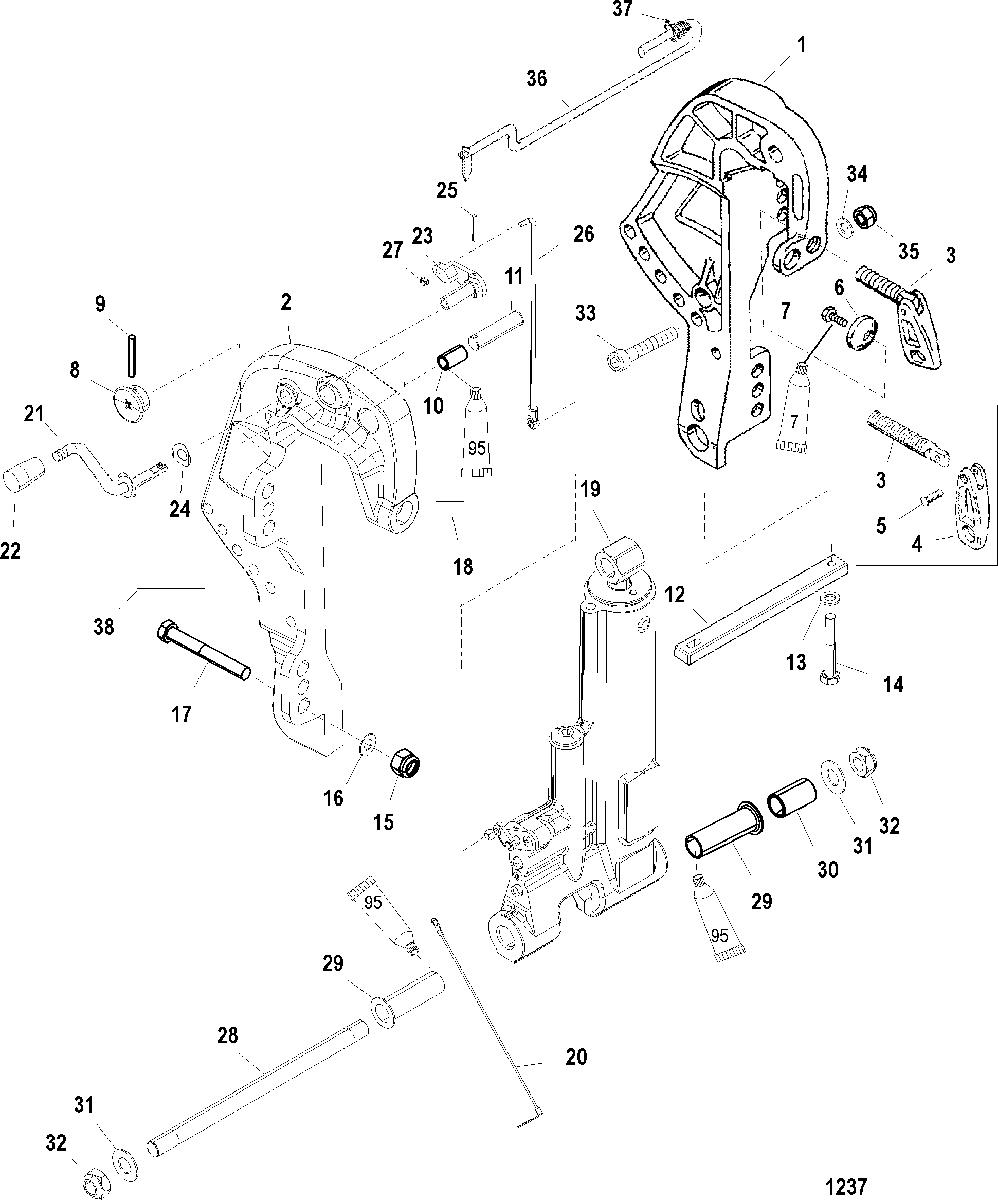

Clamp Bracket для Mercury - 25 (4-STROKE) 0T409000 THRU 1B344298

  • №
    Артикул
    Название
  • 1
    3411-821773T1 CLAMP BRACKET (Port)
    CLAMP BRACKET (Port)
  • 2
    3412-821774T8 CLAMP BRACKET (Starboard)
    CLAMP BRACKET (Starboard)
  • 3
    10-818883A1 THUMB SCREW ASSEMBLY
    (MANUAL)
    THUMB SCREW ASSEMBLY
    (MANUAL)
  • 4
    NSS NOT SOLD SEPARATE, Handle
    MANUAL
    NOT SOLD SEPARATE, Handle
    MANUAL
  • 5
    NSS NOT SOLD SEPARATE, Rivet
    MANUAL
    NOT SOLD SEPARATE, Rivet
    MANUAL
  • 6
    12-818884 WASHER
    (MANUAL)
    WASHER
    (MANUAL)
  • 7
    10-768042 SHOULDER SCREW, Hex
    (MANUAL)
    SHOULDER SCREW, Hex
    (MANUAL)
  • 8
    8224011 CAP
    CAP
  • 9
    17-25810 PIN
    PIN
  • 10
    23-86637 BEARING
    BEARING
  • 11
    17-8224002 PIN
    PIN
  • 12
    97-8252711 ANODE
    ANODE
  • 13
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 14
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    11-82671117 NUT, (.500-20)
    NUT, (.500-20)
  • 16
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 17
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 18
    37-830253 DECAL, Tilt Lock
    DECAL, Tilt Lock
  • 19
    828533T1 TRIM, HYDRAULIC ASSIST
    (GAS ASSIST TRIM)
    TRIM, HYDRAULIC ASSIST
    (GAS ASSIST TRIM)
  • 20
    88238A11 CABLE ASSEMBLY
    (GAS ASSIST TRIM)
    CABLE ASSEMBLY
    (GAS ASSIST TRIM)
  • 21
    828924 LEVER, Tilt
    (GAS ASSIST TRIM)
    LEVER, Tilt
    (GAS ASSIST TRIM)
  • 22
    8M0007469 TILT KNOB
    (GAS ASSIST TRIM)
    TILT KNOB
    (GAS ASSIST TRIM)
  • 23
    828930 ARM, Lever
    (GAS ASSIST TRIM)
    ARM, Lever
    (GAS ASSIST TRIM)
  • 24
    13-31030 WAVE WASHER
    (GAS ASSIST TRIM)
    WAVE WASHER
    (GAS ASSIST TRIM)
  • 25
    17-25319 PIN, (.125 x 0.75 Inches)
    (GAS ASSIST TRIM)
    PIN, (.125 x 0.75 Inches)
    (GAS ASSIST TRIM)
  • 26
    8289961 LINK
    (GAS ASSIST TRIM)
    LINK
    (GAS ASSIST TRIM)
  • 27
    11-826709106 NUT, (#10-32) Stainless Steel
    GAS ASSIST TRIM
    NUT, (#10-32) Stainless Steel
    GAS ASSIST TRIM
  • 28
    17-822481001 PIN, Anchor (14 mm)
    (GAS ASSIST & POWER TRIM) SN# USA-0T979999/BEL-0P325499 & Below
    PIN, Anchor (14 mm)
    (GAS ASSIST & POWER TRIM) SN# USA-0T979999/BEL-0P325499 & Below
  • 28
    17-822481001 PIN, (14 mm)
    (GAS ASSIST & POWER TRIM) SN# USA-0T980000/BEL-0P325500 & Up
    PIN, (14 mm)
    (GAS ASSIST & POWER TRIM) SN# USA-0T980000/BEL-0P325500 & Up
  • 29
    23-822482 BUSHING
    (GAS ASSIST & POWER TRIM)
    BUSHING
    (GAS ASSIST & POWER TRIM)
  • 30
    23-822484 BUSHING
    (GAS ASSIST & POWER TRIM)
    BUSHING
    (GAS ASSIST & POWER TRIM)
  • 31
    12-825190 WASHER
    (GAS ASSIST & POWER TRIM)
    WASHER
    (GAS ASSIST & POWER TRIM)
  • 32
    11-826712 NUT
    (GAS ASSIST & POWER TRIM)
    NUT
    (GAS ASSIST & POWER TRIM)
  • 33
    10-4009040 SCREW, (M10 x 40) Stainless Steel
    (GAS ASSIST & POWER TRIM)
    SCREW, (M10 x 40) Stainless Steel
    (GAS ASSIST & POWER TRIM)
  • 34
    12-4002319 WASHER
    (GAS ASSIST & POWER TRIM)
    WASHER
    (GAS ASSIST & POWER TRIM)
  • 35
    11-40140 NUT, (M10)
    (GAS ASSIST & POWER TRIM)
    NUT, (M10)
    (GAS ASSIST & POWER TRIM)
  • 36
    17-853923A1 PIN
    (HANDLE-NON POWER TRIM)
    PIN
    (HANDLE-NON POWER TRIM)
  • 37
    24-821461 SPRING
    (HANDLE-NON POWER TRIM)
    SPRING
    (HANDLE-NON POWER TRIM)
  • 38
    NSS NOT SOLD SEPARATE, Decal-Warning
    NOT SOLD SEPARATE, Decal-Warning
