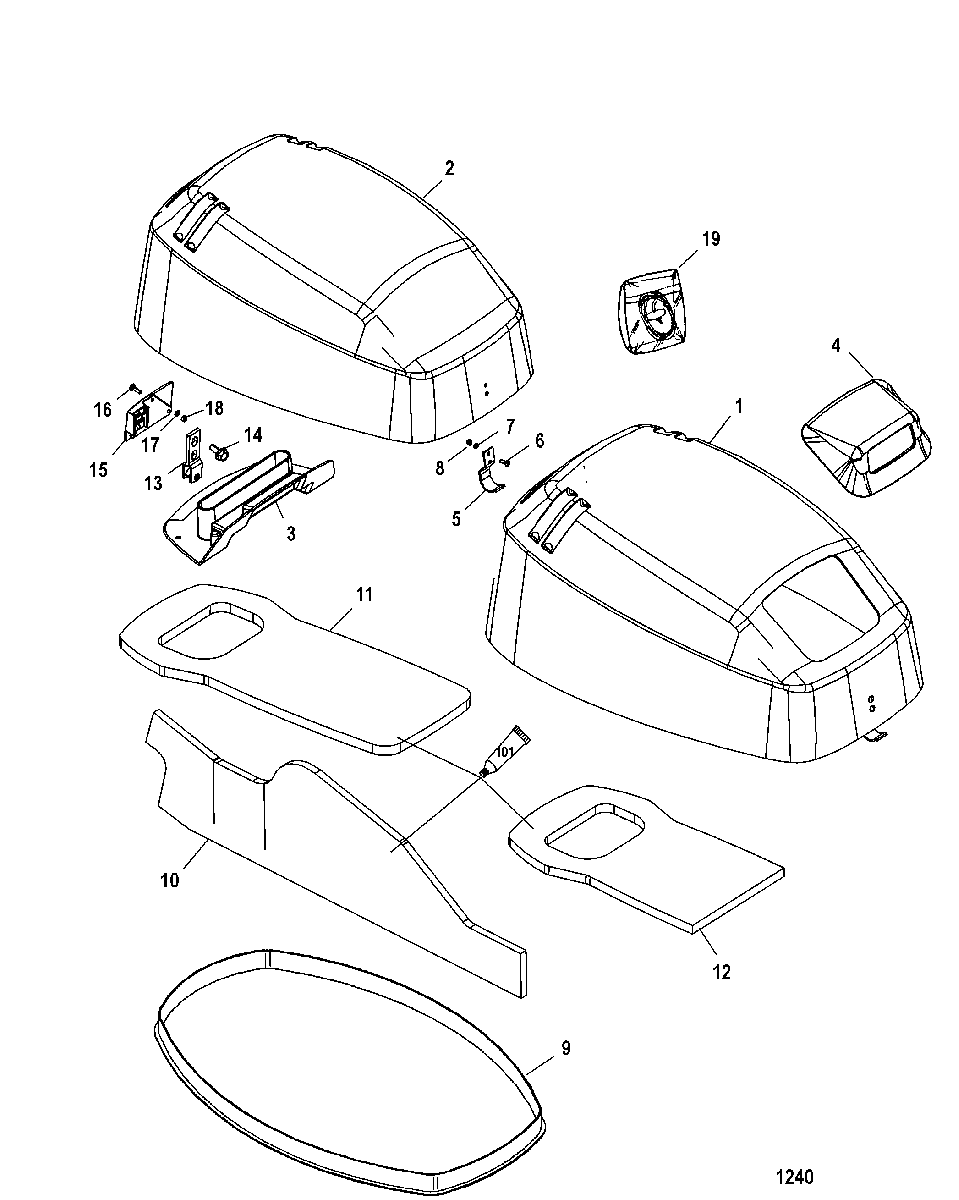

Top Cowl для Mercury - 25 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    4027-830562T5 TOP COWL ASSEMBLY
    Manual-Black
    TOP COWL ASSEMBLY
    Manual-Black
  • 1
    4027-830562T6 TOP COWL ASSEMBLY
    Manual Tilver
    TOP COWL ASSEMBLY
    Manual Tilver
  • 2
    4027-830562T7 TOP COWL ASSEMBLY
    Electric-Black
    TOP COWL ASSEMBLY
    Electric-Black
  • 2
    4027-830562T8 TOP COWL ASSEMBLY
    Electric-Silver
    TOP COWL ASSEMBLY
    Electric-Silver
  • 3
    NSS NOT SOLD SEPARATE, Induction Insert
    NOT SOLD SEPARATE, Induction Insert
  • 4
    NSS NOT SOLD SEPARATE, Cowl Inset
    Manual
    NOT SOLD SEPARATE, Cowl Inset
    Manual
  • 5
    826291F1 LATCH
    Black
    LATCH
    Black
  • 5
    826291F1 LATCH
    Silver
    LATCH
    Silver
  • 6
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 7
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 8
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 9
    8M0043388 SEAL
    SEAL
  • 10
    852556A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 11
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    Electric
    NOT SOLD SEPARATE, Sound Blanket-Top
    Electric
  • 12
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    Manual
    NOT SOLD SEPARATE, Sound Blanket-Top
    Manual
  • 13
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 14
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    8M0038412 BRACKET
    BRACKET
  • 16
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 17
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 18
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 19
    47341A11 ROPE AND HANDLE KIT, Manual Starting
    ROPE AND HANDLE KIT, Manual Starting
