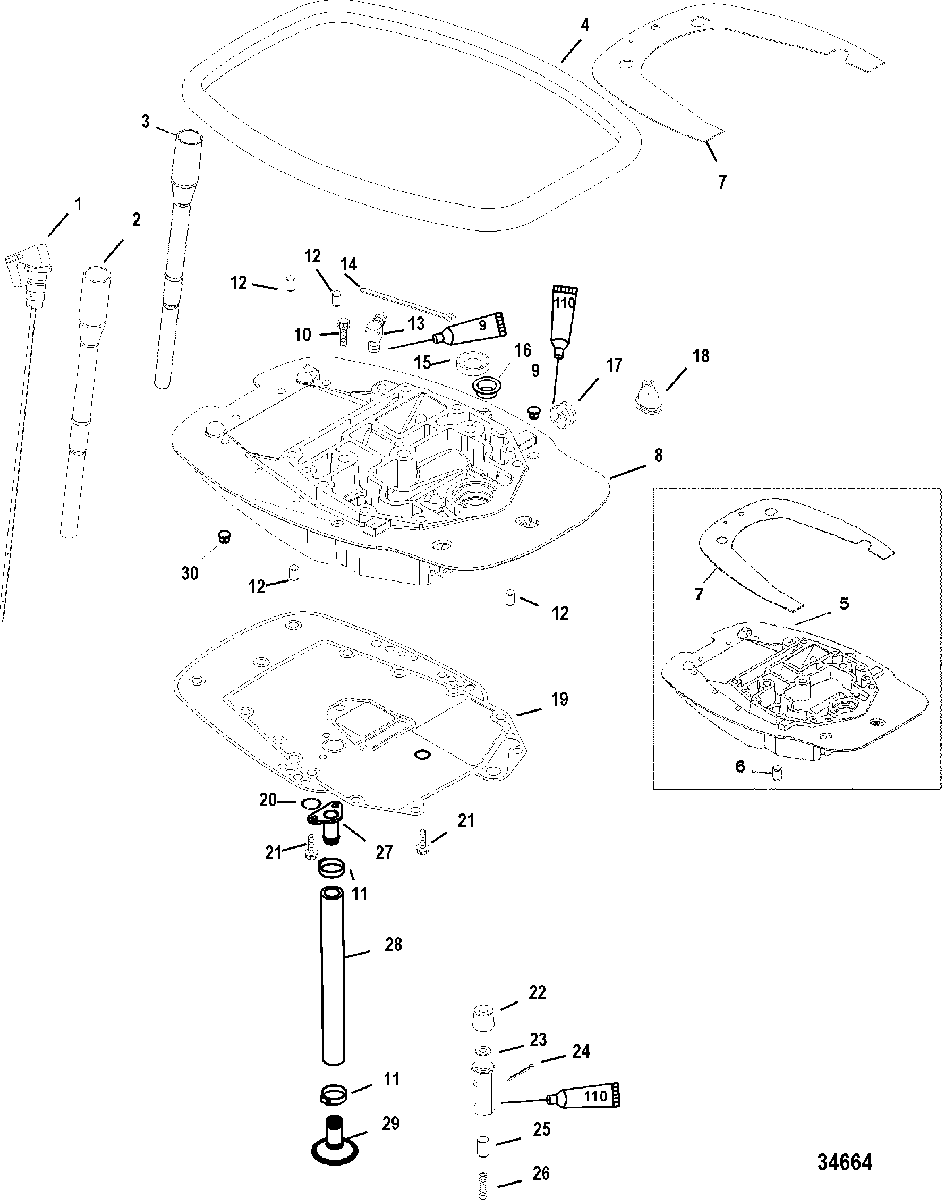

Adaptor Plate для Mercury - 25 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    825990 DIPSTICK
    DIPSTICK
  • 2
    825989003 DIPSTICK TUBE
    SN# 0T178499 & Below
    DIPSTICK TUBE
    SN# 0T178499 & Below
  • 3
    825989003 DIPSTICK TUBE
    SN# 0T178500 & Up
    DIPSTICK TUBE
    SN# 0T178500 & Up
  • 4
    8560552 SEAL
    SEAL
  • 5
    825228A24 ADAPTOR PLATE
    SN# 0T178499 & Below
    ADAPTOR PLATE
    SN# 0T178499 & Below
  • 6
    17-23784 PIN, Dowel
    SN# 0T178499 & Below
    PIN, Dowel
    SN# 0T178499 & Below
  • 7
    8289151 HEAT SHIELD
    HEAT SHIELD
  • 8
    825228A17 ADAPTOR PLATE
    SN# 0T178500 THRU 0T192618
    ADAPTOR PLATE
    SN# 0T178500 THRU 0T192618
  • 8
    825228A17 ADAPTOR PLATE KIT
    SN# 0T192619 & Up
    ADAPTOR PLATE KIT
    SN# 0T192619 & Up
  • 9
    19-822464 PLUG
    SN# 0T192619 & Up
    PLUG
    SN# 0T192619 & Up
  • 10
    10-4007455 SCREW, (M6 x 55)
    SN# 0T178500 & Up
    SCREW, (M6 x 55)
    SN# 0T178500 & Up
  • 11
    54-855228 CLAMP
    CLAMP
  • 12
    17-23784 PIN, Dowel
    PIN, Dowel
  • 13
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 14
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 15
    26-828932 SEAL, Oil
    SEAL, Oil
  • 16
    23-856743 BUSHING
    BUSHING
  • 17
    22-384073 PLUG, Pipe
    PLUG, Pipe
  • 18
    25-822408001 GROMMET
    GROMMET
  • 19
    27-892320001 GASKET
    GASKET
  • 20
    25-845746 O-RING
    O-RING
  • 21
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 22
    856592 DEFLECTOR, Oil
    DEFLECTOR, Oil
  • 23
    881872A1 BODY ASSEMBLY, Oil Pressure Relief
    BODY ASSEMBLY, Oil Pressure Relief
  • 24
    18-45882 COTTER PIN
    COTTER PIN
  • 25
    8252151 PLUNGER
    PLUNGER
  • 26
    24-825216 SPRING
    SPRING
  • 27
    893765 PLATE, Oil Pickup-Top
    PLATE, Oil Pickup-Top
  • 28
    32-854793 HOSE, Oil Pickup
    HOSE, Oil Pickup
  • 29
    893700 BAFFLE
    BAFFLE
  • 30
    19-822464 PLUG
    SN# 0T178500 & Up
    PLUG
    SN# 0T178500 & Up
