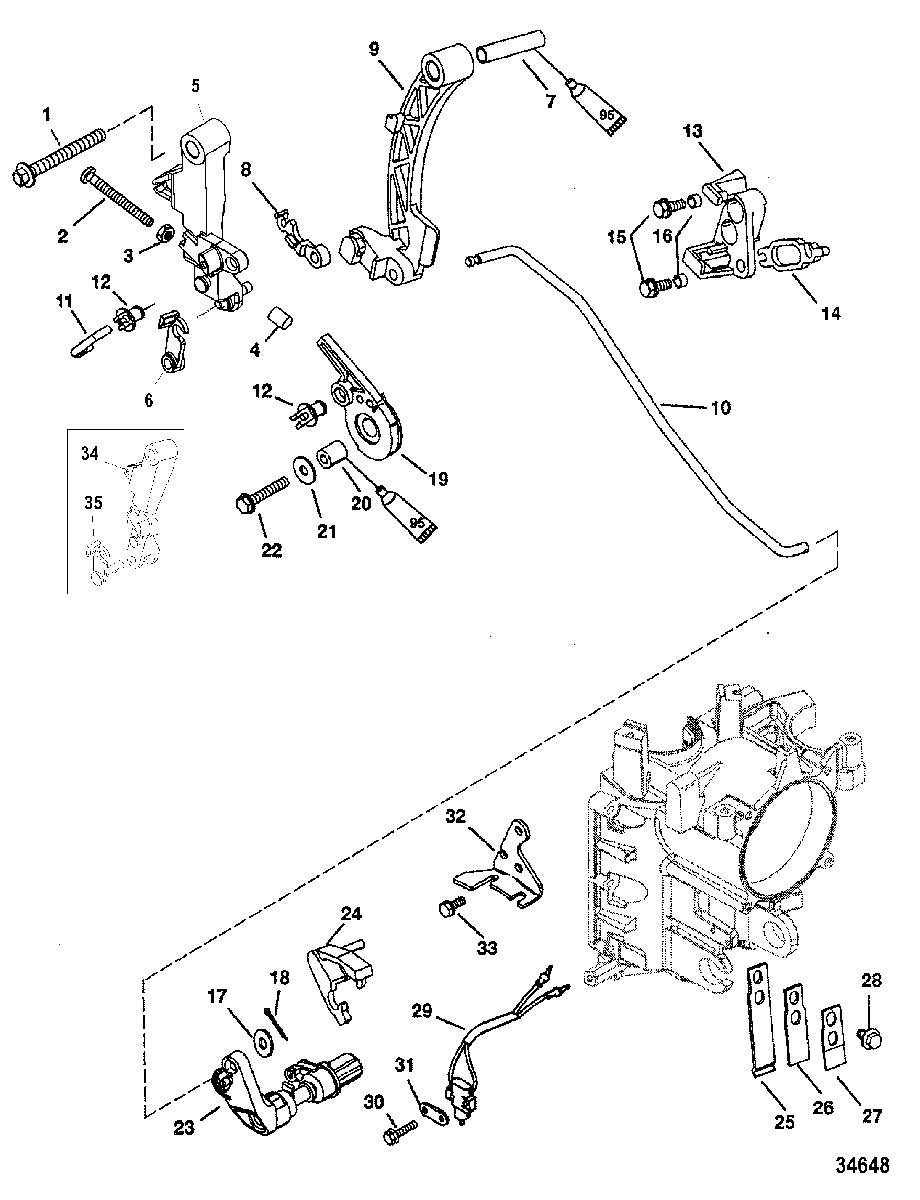

Linkage для Mercury - 25 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    Electric-Non Handle
    SCREW, (M8 x 70) Stainless Steel
    Electric-Non Handle
  • 2
    10-814776 SCREW, Adjusting (M6 x 55)
    Electric-Non Handle
    SCREW, Adjusting (M6 x 55)
    Electric-Non Handle
  • 3
    11-401196 NUT, (M6)
    Electric-Non Handle
    NUT, (M6)
    Electric-Non Handle
  • 4
    42942 CAP
    Electric-Non Handle
    CAP
    Electric-Non Handle
  • 5
    822682A4 LEVER ASSEMBLY, Throttle
    Electric-Non Handle - Design II
    LEVER ASSEMBLY, Throttle
    Electric-Non Handle - Design II
  • 6
    883160 RETAINER
    Electric-Non Handle - DESIGN II
    RETAINER
    Electric-Non Handle - DESIGN II
  • 7
    23-825078 BUSHING
    Electric-Non Handle
    BUSHING
    Electric-Non Handle
  • 8
    822459 RETAINER
    Electric-Non Handle
    RETAINER
    Electric-Non Handle
  • 9
    8259571 LEVER, Shift
    Electric-Non Handle
    LEVER, Shift
    Electric-Non Handle
  • 10
    882820 SHIFT ROD
    Electric-Non Handle
    SHIFT ROD
    Electric-Non Handle
  • 11
    830307 ROD, Throttle
    Electric-Non Handle
    ROD, Throttle
    Electric-Non Handle
  • 12
    23-932481 BUSHING
    Electric-Non Handle
    BUSHING
    Electric-Non Handle
  • 13
    827706A4 BRACKET
    Electric-Non Handle
    BRACKET
    Electric-Non Handle
  • 14
    98889 LATCH
    Electric-Non Handle
    LATCH
    Electric-Non Handle
  • 15
    10-8248324 SCREW, (M6 x 16)
    Electric-Non Handle
    SCREW, (M6 x 16)
    Electric-Non Handle
  • 16
    23-15885 SLEEVE
    Electric-Non Handle
    SLEEVE
    Electric-Non Handle
  • 17
    12-29245 WASHER
    Electric-Non Handle
    WASHER
    Electric-Non Handle
  • 18
    18-210711 COTTER PIN
    Electric-Non Handle
    COTTER PIN
    Electric-Non Handle
  • 19
    830305 CAM, Throttle
    CAM, Throttle
  • 20
    23-822389 BUSHING
    BUSHING
  • 21
    12-4002316 WASHER
    WASHER
  • 22
    10-40011131 SCREW, (M6 x 35) Stainless Steel
    SCREW, (M6 x 35) Stainless Steel
  • 23
    826588A4 SHIFT SHAFT ASSEMBLY, Horizontal
    SHIFT SHAFT ASSEMBLY, Horizontal
  • 24
    8277071 RETAINER
    RETAINER
  • 25
    24-826077 SPRING, Detent
    SPRING, Detent
  • 26
    24-824993 SPRING, Backing
    SPRING, Backing
  • 27
    824994 SPRING, Plate
    SPRING, Plate
  • 28
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 29
    87-8M0052927 SWITCH
    Electric Handle Models
    SWITCH
    Electric Handle Models
  • 30
    10-88075020 SCREW, (M3.5 x 20) Stainless Steel
    Electric Handle Models
    SCREW, (M3.5 x 20) Stainless Steel
    Electric Handle Models
  • 31
    824923 PLATE
    Electric Handle Models
    PLATE
    Electric Handle Models
  • 32
    8214943 BRACKET
    Handle Models
    BRACKET
    Handle Models
  • 33
    10-8248324 SCREW, (M6 x 16)
    Handle Models
    SCREW, (M6 x 16)
    Handle Models
  • 34
    822682A4 LEVER, Throttle
    Electric-Non Handle - Design I
    LEVER, Throttle
    Electric-Non Handle - Design I
  • 35
    826587 RETAINER
    Electric-Non Handle - Design I
    RETAINER
    Electric-Non Handle - Design I
