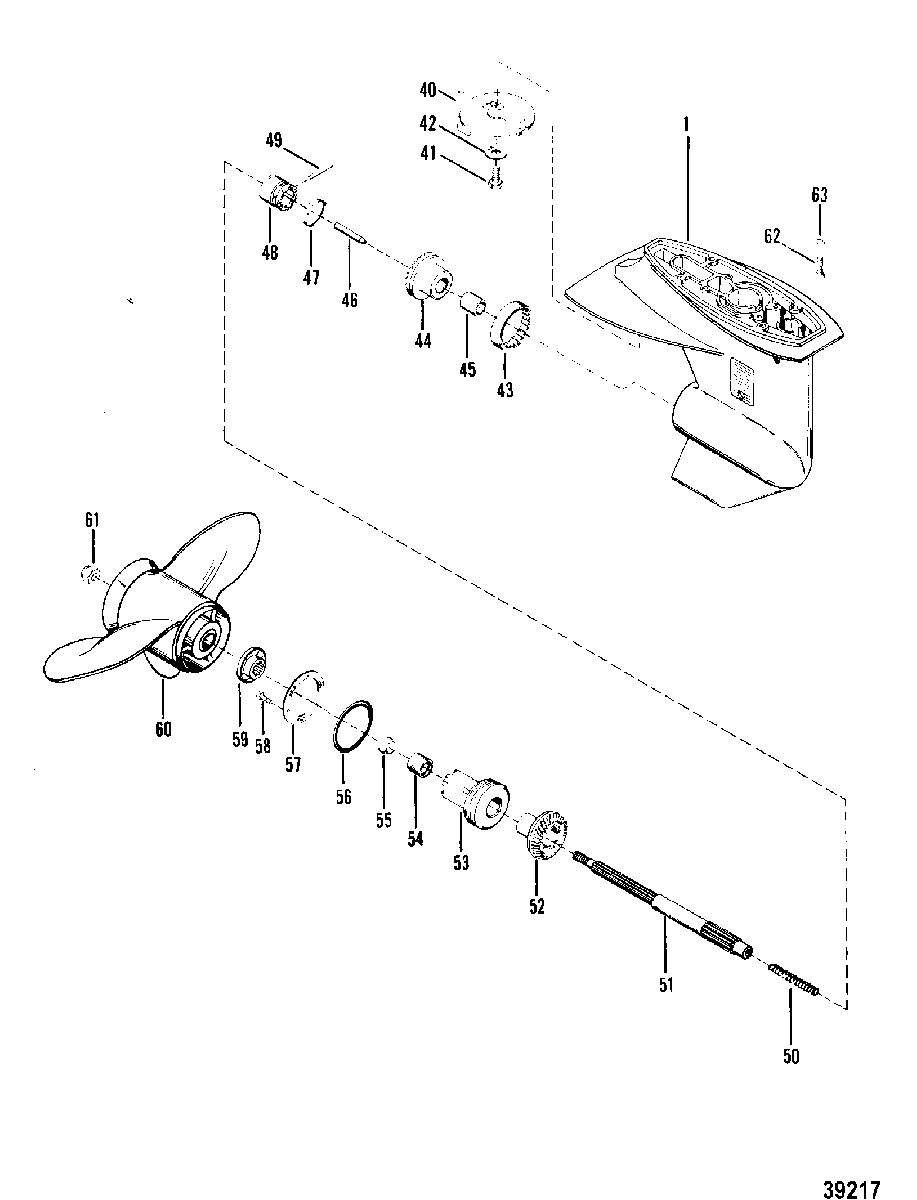

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 25 (2 CYL.) 8073158 & Up

  • №
    Артикул
    Название
  • -
    1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT
    GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT
  • -
    1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT
    GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT
  • 1
    1653-8157A6 GEAR HOUSING ASSEMBLY, BASIC
    GEAR HOUSING ASSEMBLY, BASIC
  • 40
    94286T1 TRIM TAB
    TRIM TAB
  • 41
    10-4000352 SCREW, (M8 x 20), TRIM TAB
    SCREW, (M8 x 20), TRIM TAB
  • 42
    14-85169 TAB WASHER, TRIM TAB SCREW
    TAB WASHER, TRIM TAB SCREW
  • 43
    31-85555A1 BEARING ASSEMBLY, Roller, TAPERED
    BEARING ASSEMBLY, Roller, TAPERED
  • 44
    43-85135A2 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 45
    23-85557 BUSHING, FORWARD GEAR
    BUSHING, FORWARD GEAR
  • 46
    85094 FOLLOWER, Cam
    FOLLOWER, Cam
  • 47
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 48
    52-85133 CLUTCH, SLIDING
    CLUTCH, SLIDING
  • 49
    17-8M0020999 PIN, CLUTCH TO PROPELLER SHAFT
    PIN, CLUTCH TO PROPELLER SHAFT
  • 50
    24-88680 SPRING, COMPRESSION - PROPELLER SHAFT
    SPRING, COMPRESSION - PROPELLER SHAFT
  • 51
    44-8166231 PROPELLER SHAFT
    PROPELLER SHAFT
  • 52
    43-99542A1 GEAR, Reverse
    GEAR, Reverse
  • 53
    99906T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 54
    31-21739 BEARING, Roller
    BEARING, Roller
  • 55
    26-98283 SEAL, Oil, BEARING CARRIER
    SEAL, Oil, BEARING CARRIER
  • 56
    25-85549 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 57
    87293 PLATE, GEAR HOUSING
    PLATE, GEAR HOUSING
  • 58
    10-90883 SCREW, COVER TO GEAR HOUSING (16MM)
    SCREW, COVER TO GEAR HOUSING (16MM)
  • 59
    858498 THRUST HUB ASSEMBLY, PROPELLER
    THRUST HUB ASSEMBLY, PROPELLER
  • 60
    48-19640A40 PROPELLER ASSEMBLY
    PROPELLER ASSEMBLY
  • 61
    11-88228 PROP NUT
    PROP NUT
  • 62
    10-4000353 SCREW, (M8 x 25), GEAR HOUSING
    SCREW, (M8 x 25), GEAR HOUSING
  • 63
    12-4002317 WASHER, GEAR HOUSING SCREW
    WASHER, GEAR HOUSING SCREW
  • -
    27-85168A80 GASKET SET
    GASKET SET
  • -
    26-85090A1 SEAL KIT, Water Pump
    SEAL KIT, Water Pump
