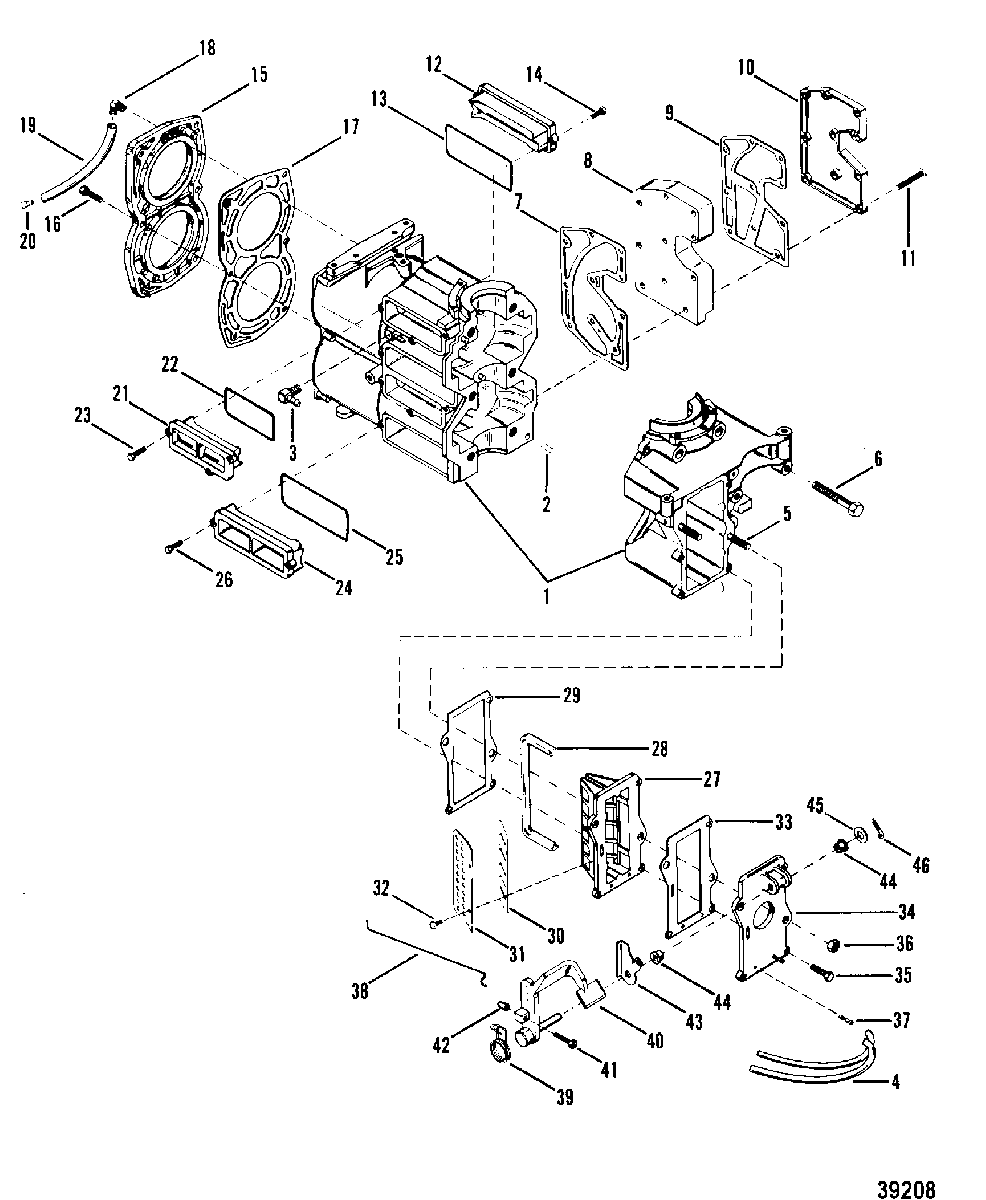

CYLINDER BLOCK AND COVER для Mercury - 25 (2 CYL.) 8073158 & Up

  • №
    Артикул
    Название
  • 1
    872-9533T38 CYLINDER BLOCK ASSEMBLY
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
    CYLINDER BLOCK ASSEMBLY
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
  • 1
    872-9533T38 CYLINDER BLOCK ASSEMBLY
    SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
    CYLINDER BLOCK ASSEMBLY
    SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
  • 2
    17-85171 PIN, Dowel, CYLINDER BLOCK
    PIN, Dowel, CYLINDER BLOCK
  • 3
    22-15133 ELBOW, BLEED HOSE (45 Degree)
    ELBOW, BLEED HOSE (45 Degree)
  • 4
    32-892024122 HOSE, BLEED (12-1/4")
    HOSE, BLEED (12-1/4")
  • 5
    16-429173 STUD, CARBURETOR
    STUD, CARBURETOR
  • 6
    10-40001209 SCREW, (M10 x 60)
    SCREW, (M10 x 60)
  • 7
    27-892158 GASKET, EXHAUST MANIFOLD
    GASKET, EXHAUST MANIFOLD
  • 8
    92329 MANIFOLD, Exhaust
    MANIFOLD, Exhaust
  • 9
    27-414991 GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 10
    92330T COVER, EXHAUST
    COVER, EXHAUST
  • 11
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 12
    144071 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 13
    25-822370 O-RING, TRANSFER PORT COVER
    O-RING, TRANSFER PORT COVER
  • 14
    10-40057107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 15
    1028-8283A1 COVER, CYLINDER BLOCK
    USE WITH 25MM SCREWS
    COVER, CYLINDER BLOCK
    USE WITH 25MM SCREWS
  • 15
    1028-8283A1 COVER ASEMBLY, CYLINDER BLOCK
    USE WITH 30MM SCREWS
    COVER ASEMBLY, CYLINDER BLOCK
    USE WITH 30MM SCREWS
  • 16
    10-4000331 SCREW, (M6 x 30), COVER ATTACHING
    SCREW, (M6 x 30), COVER ATTACHING
  • 16
    10-4000330 SCREW, (M6 x 25), COVER ATTACHING
    SCREW, (M6 x 25), COVER ATTACHING
  • 17
    27-86389 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 18
    22-996642 ELBOW, TELL TALE HOSE
    ELBOW, TELL TALE HOSE
  • 19
    32-8M0108355 HOSE, TELL TALE (8")
    HOSE, TELL TALE (8")
  • 20
    22-94848 FITTING, TELL TALE HOSE - BOTTOM COWL
    FITTING, TELL TALE HOSE - BOTTOM COWL
  • 21
    14406 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 22
    25-86391 O-RING, TRANSFER PORT COVER
    O-RING, TRANSFER PORT COVER
  • 23
    10-40057107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 24
    92350 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 25
    25-33465 O-RING, TRANSFER PORT COVER
    O-RING, TRANSFER PORT COVER
  • 26
    10-40057107 SCREW, (M5 x 16), COVER TO CYLINDER BLOCK (16MM)
    SCREW, (M5 x 16), COVER TO CYLINDER BLOCK (16MM)
  • 27
    14112T REED BLOCK
    REED BLOCK
  • 28
    85977002 SEAL, Rubber, REED BLOCK - RUBBER
    SEAL, Rubber, REED BLOCK - RUBBER
  • 29
    27-414172 GASKET, REED BLOCK
    GASKET, REED BLOCK
  • 30
    34-816806 REED
    REED
  • 31
    34-897931 STOP, Reed
    STOP, Reed
  • 32
    10-4005785 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 33
    27-414181 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 34
    90785 PLATE, ADAPTOR - CARBURETOR
    PLATE, ADAPTOR - CARBURETOR
  • 35
    10-40019108 SCREW, (M5 x 20), PLATE TO REED BLOCK
    SCREW, (M5 x 20), PLATE TO REED BLOCK
  • 36
    11-400213 NUT, (M8) Stainless Steel, CARBURETOR STUD
    NUT, (M8) Stainless Steel, CARBURETOR STUD
  • 37
    22-56759 FITTING, Barbed, ADAPTOR PLATE - BLEED HOSE
    FITTING, Barbed, ADAPTOR PLATE - BLEED HOSE
  • 38
    93879 IDLE WIRE
    IDLE WIRE
  • 39
    24-97176 SPRING, CHOKE
    SPRING, CHOKE
  • 40
    42545 LEVER, CHOKE/FAST IDLE
    LEVER, CHOKE/FAST IDLE
  • 41
    10-91073 SCREW, ADJUSTING - LEVER
    BC1A CARBURETOR
    SCREW, ADJUSTING - LEVER
    BC1A CARBURETOR
  • 41
    10-91073 SCREW, LEVER
    BC1B/BC1C CARBURETOR
    SCREW, LEVER
    BC1B/BC1C CARBURETOR
  • 42
    48039 CAP, ADJUSTING SCREW
    BC1A CARBURETOR
    CAP, ADJUSTING SCREW
    BC1A CARBURETOR
  • 43
    43220A1 PLATE, DRIVER
    BC1A CARBURETOR
    PLATE, DRIVER
    BC1A CARBURETOR
  • 43
    43220A1 PLATE ASSEMBLY, DRIVER
    BC1B/BC1C CARBURETOR
    PLATE ASSEMBLY, DRIVER
    BC1B/BC1C CARBURETOR
  • 44
    23-26856 BUSHING, CHOKE/FAST IDLE LEVER
    BUSHING, CHOKE/FAST IDLE LEVER
  • 45
    12-28463 WASHER, CHOKE/FAST IDLE LEVER
    WASHER, CHOKE/FAST IDLE LEVER
  • 46
    18-93500 COTTER PIN, CHOKE/FAST IDLE LEVER
    COTTER PIN, CHOKE/FAST IDLE LEVER
  • -
    27-85168A80 GASKET SET
    GASKET SET
