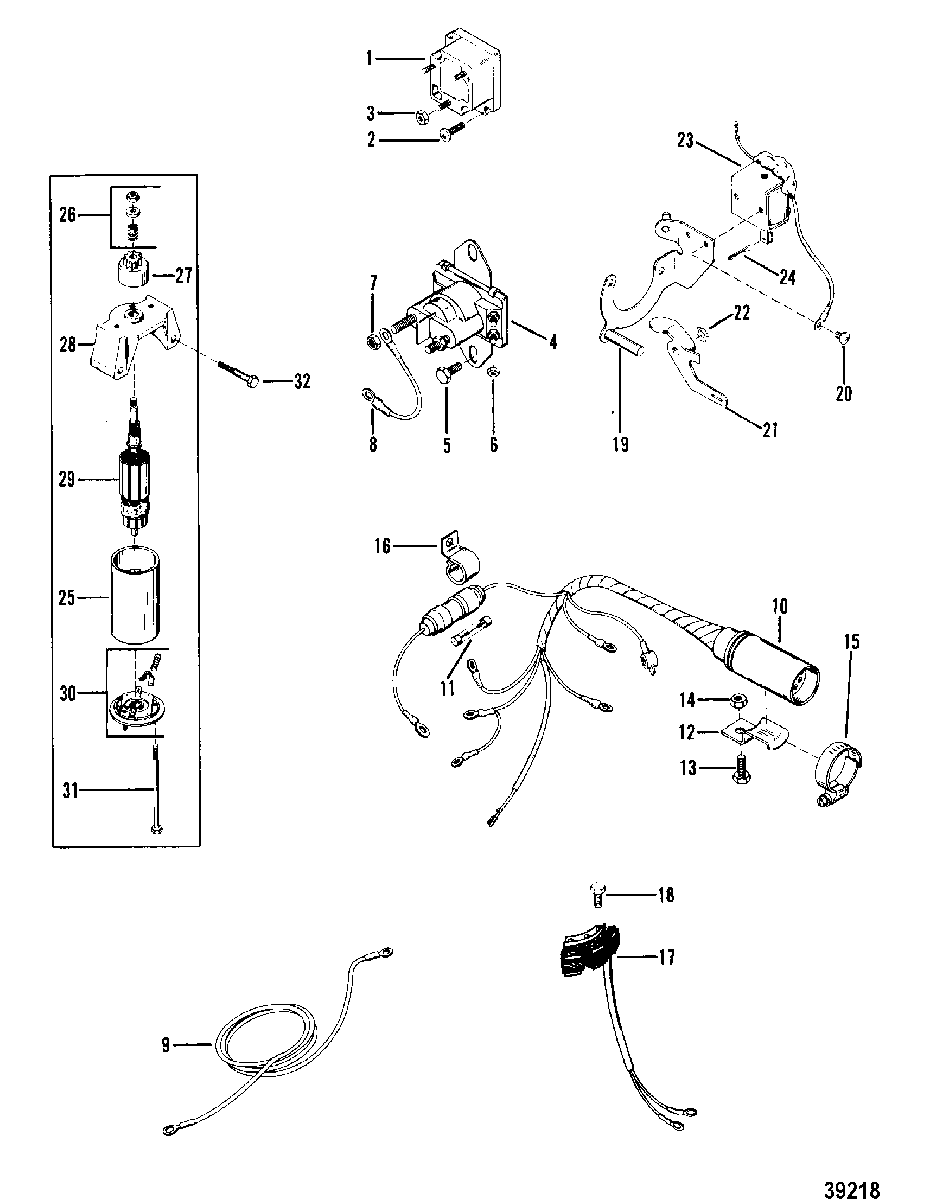

ELECTRIC COMPONENTS(ELECTRIC) для Mercury - 25 (2 CYL.) 8073158 & Up

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 2
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
    SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
  • 3
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALS
    NUT, (#10-32) Brass, RECTIFIER TERMINALS
  • 4
    89-96054T SOLENOID, Starter
    SOLENOID, Starter
  • 5
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 6
    11-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL (10-32)
    NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL (10-32)
  • 7
    11-64015 NUT, (.250-20), STARTER SOLENOID TERMINAL (1/4-20)
    NUT, (.250-20), STARTER SOLENOID TERMINAL (1/4-20)
  • 8
    84-88809A5 WIRE ASSEMBLY, YELLOW
    WIRE ASSEMBLY, YELLOW
  • 9
    84-88439A27 CABLE ASSEMBLY, Battery, RED
    CABLE ASSEMBLY, Battery, RED
  • 9
    84-88439A28 CABLE ASSEMBLY, Battery, BLACK
    CABLE ASSEMBLY, Battery, BLACK
  • 10
    84-92436A5 HARNESS ASSEMBLY, ENGINE
    HARNESS ASSEMBLY, ENGINE
  • 11
    88-95085 FUSE
    FUSE
  • 12
    92439 BRACKET, WIRING HARNESS
    BRACKET, WIRING HARNESS
  • 13
    10-4000327 SCREW, (M6 x 14), BRACKET
    SCREW, (M6 x 14), BRACKET
  • 14
    11-400212 NUT, (M6) Stainless Steel, BRACKET SCREW
    NUT, (M6) Stainless Steel, BRACKET SCREW
  • 15
    54-815504310 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 16
    54-55098 J CLIP, WIRING HARNESS
    J CLIP, WIRING HARNESS
  • 17
    86704A10 STATOR ASSEMBLY, AUXILIARY
    STATOR ASSEMBLY, AUXILIARY
  • 18
    10-4000123 SCREW, (M5 x 30), STATOR ATTACHING
    SCREW, (M5 x 30), STATOR ATTACHING
  • 19
    94301A1 PLATE ASSEMBLY, CHOKE KNOB
    PLATE ASSEMBLY, CHOKE KNOB
  • 20
    10-95088 SCREW, PLATE TO SOLENOID
    SCREW, PLATE TO SOLENOID
  • 21
    95020 LEVER, CHOKE
    LEVER, CHOKE
  • 22
    53-95019 RING, Retaining, CHOKE LEVER TO PLATE
    RING, Retaining, CHOKE LEVER TO PLATE
  • 23
    89-94973A3 SOLENOID ASSEMBLY
    SOLENOID ASSEMBLY
  • 24
    18-210711 COTTER PIN, CHOKE LEVER TO SOLENOID
    COTTER PIN, CHOKE LEVER TO SOLENOID
  • 25
    50-8M0033984 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 26
    96561 DRIVE KIT
    DRIVE KIT
  • 27
    96562 DRIVE
    DRIVE
  • 28
    96563T END CAP
    END CAP
  • 29
    96565 ARMATURE
    ARMATURE
  • 30
    96564T END CAP, COMMUTATOR W/SPRINGS AND BRUSHES
    END CAP, COMMUTATOR W/SPRINGS AND BRUSHES
  • 31
    10-96566 THRU BOLT
    THRU BOLT
  • 32
    10-4000358 SCREW, (M8 x 50), STARTER MOTOR ATTACHING
    SCREW, (M8 x 50), STARTER MOTOR ATTACHING
