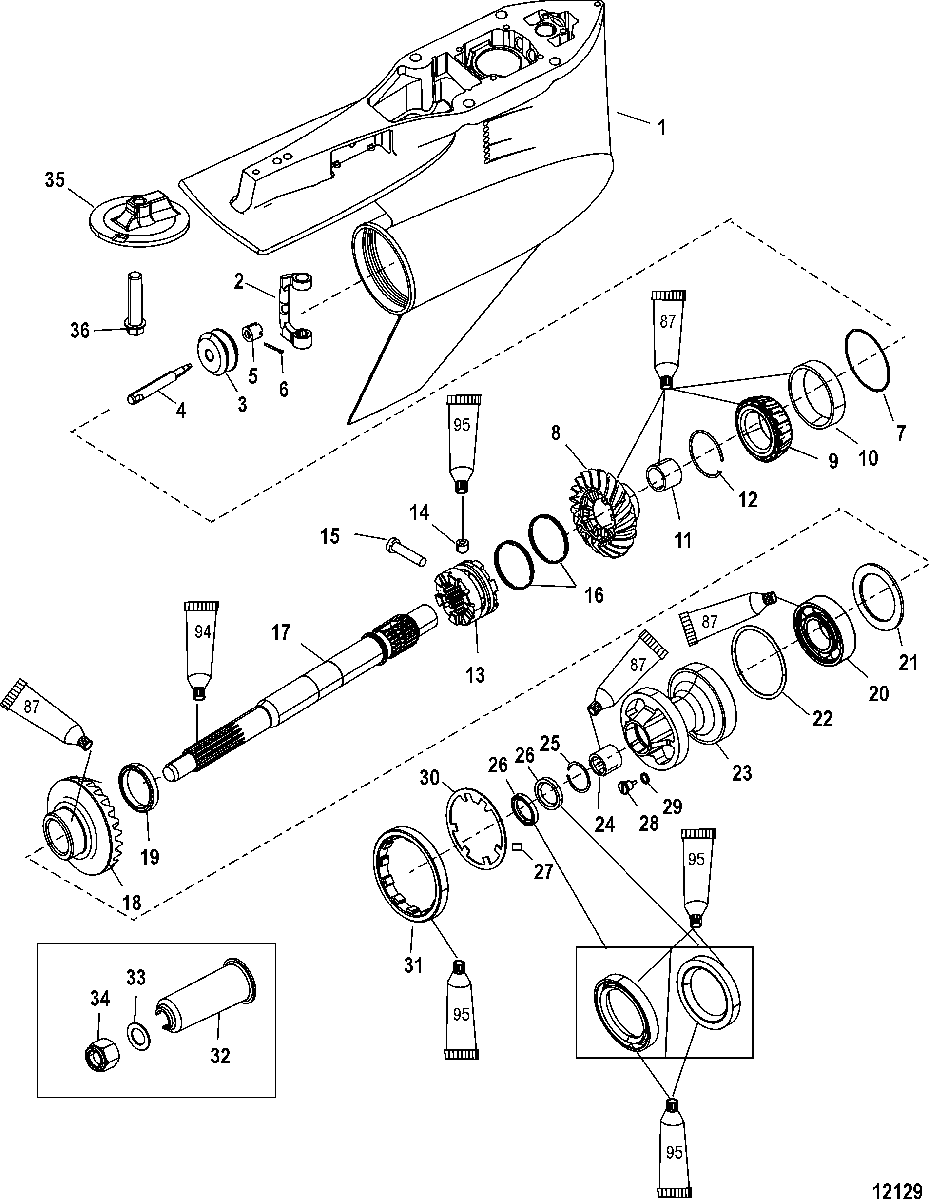

Gear Housing, Propeller Shaft - Torque Master для Mercury - 225 PRO XS (3.0L DFI) 1B104549 THRU 1B426560

  • №
    Артикул
    Название
  • -
    1689-8M0072952 GEAR HOUSING ASSEMBLY, Complete
    (Long)(Excludes references 32/33/34)
    GEAR HOUSING ASSEMBLY, Complete
    (Long)(Excludes references 32/33/34)
  • -
    1689-8M0072952 GEAR HOUSING ASSEMBLY, Complete
    (Long)(Includes references 32/33/34)
    GEAR HOUSING ASSEMBLY, Complete
    (Long)(Includes references 32/33/34)
  • -
    1689-8M0072953 GEAR HOUSING ASSEMBLY, Complete
    (X-Long)
    GEAR HOUSING ASSEMBLY, Complete
    (X-Long)
  • 1
    1689-8M0072954 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    823903 SHIFT CRANK
    SHIFT CRANK
  • 3
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, Shift Spool
    NOT SOLD SEPARATE, Shift Spool
  • 5
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 6
    NSS NOT SOLD SEPARATE, Cotter Pin
    NOT SOLD SEPARATE, Cotter Pin
  • 7
    15-47397A1 SHIM SET
    SHIM SET
  • 8
    43-859321T04 GEAR SET, Forward/Pinion
    GEAR SET, Forward/Pinion
  • 9
    31-828437A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 10
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 11
    31-30895T BEARING, Needle
    BEARING, Needle
  • 12
    53-856823 RING, Retaining
    RING, Retaining
  • 13
    52-848878T CLUTCH
    CLUTCH
  • 14
    17-78909 PIN, Detent
    PIN, Detent
  • 15
    17-848838 PIN, Cross
    PIN, Cross
  • 16
    24-78962 SPRING
    SPRING
  • 17
    44-841978 PROPELLER SHAFT
    PROPELLER SHAFT
  • 18
    43-848881A1 GEAR, Reverse
    GEAR, Reverse
  • 19
    23-8241081 THRUST SPACER
    THRUST SPACER
  • 20
    30-88957T BEARING, Ball
    BEARING, Ball
  • 21
    681001 RING, Thrust
    RING, Thrust
  • 22
    25-31534 O-RING
    O-RING
  • 23
    848840A1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 24
    31-817072 BEARING, Roller
    BEARING, Roller
  • 25
    53-817071 RING, Snap
    RING, Snap
  • 26
    26-815565 SEAL, Oil
    SEAL, Oil
  • 27
    28-30281 KEY
    KEY
  • 28
    22-8M0058389 PLUG KIT, Drain - Magnetic
    PLUG KIT, Drain - Magnetic
  • 29
    12-191833 SEAL
    SEAL
  • 30
    14-79447 TAB WASHER
    TAB WASHER
  • 31
    8M2000347 RETAINER
    RETAINER
  • 32
    8480611 COVER
    COVER
  • 33
    12-85344 WASHER, (.750 Inside Diameter)
    WASHER, (.750 Inside Diameter)
  • 34
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 35
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 36
    97-76214Q5 ANODE KIT
    ANODE KIT
  • -
    NS NOT SHOWN, See Accessory Guide-Propellers-For appropriate Hardware (Thurst Washers/Nuts)
    NOT SHOWN, See Accessory Guide-Propellers-For appropriate Hardware (Thurst Washers/Nuts)
  • -
    26-816575A6 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
