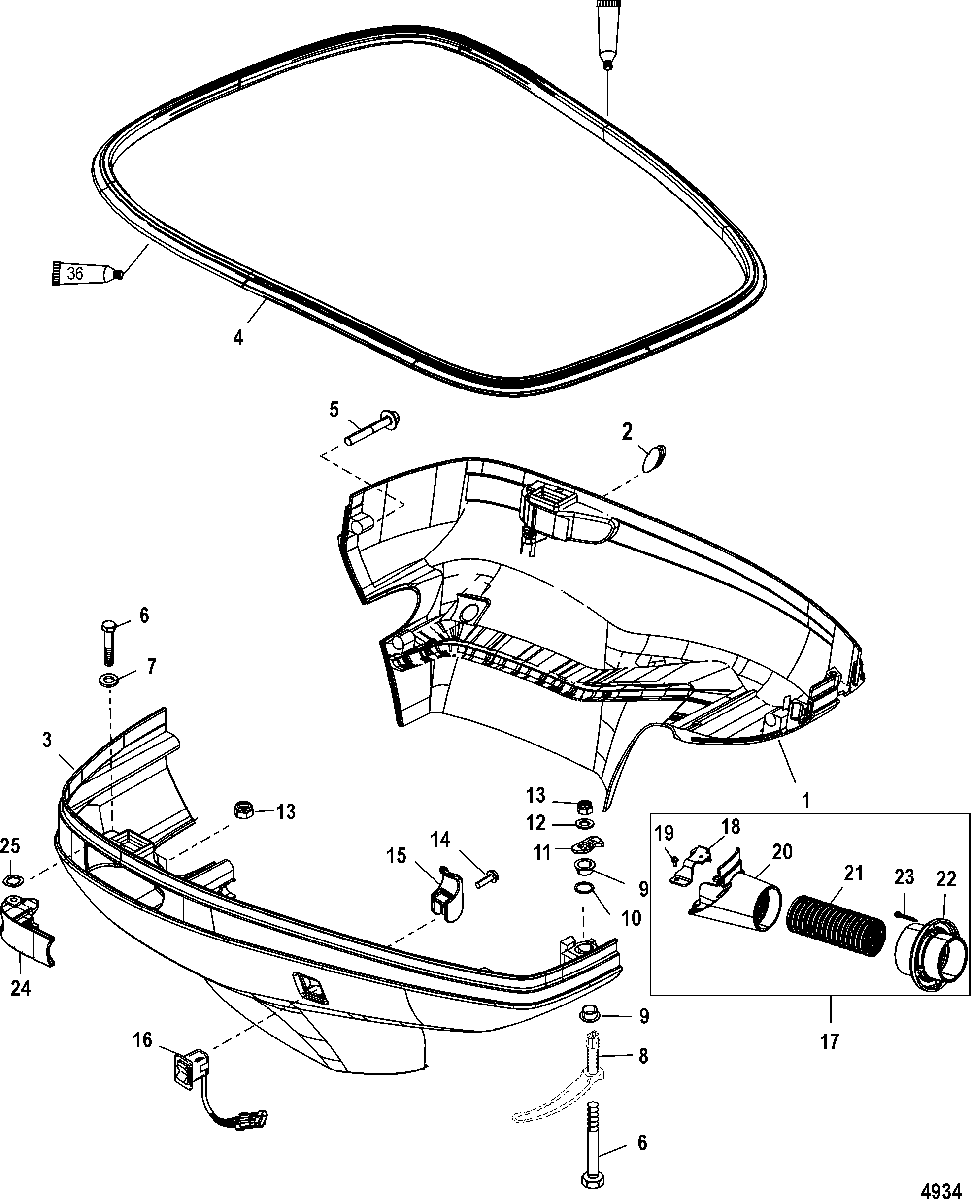

Bottom Cowl для Mercury - 225 PRO XS (3.0L DFI) 1B104549 THRU 1B426560

  • №
    Артикул
    Название
  • 1
    100-8M0122314 BOTTOM COWL, Port
    SN# 1B226999 & Below
    BOTTOM COWL, Port
    SN# 1B226999 & Below
  • 1
    100-8M0122314 BOTTOM COWL, Port
    SN# 1B227000 & Up
    BOTTOM COWL, Port
    SN# 1B227000 & Up
  • 2
    854367001 PLUG
    PLUG
  • 3
    100-8M0122313 BOTTOM COWL, Starboard
    SN# 1B226999 & Below
    BOTTOM COWL, Starboard
    SN# 1B226999 & Below
  • 3
    100-8M0122313 BOTTOM COWL, Starboard
    SN# 1B227000 & Up
    BOTTOM COWL, Starboard
    SN# 1B227000 & Up
  • 4
    8M0043268 SEAL, Cowl
    SEAL, Cowl
  • 5
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 6
    10-824868 SCREW, (M6 x 75)
    SCREW, (M6 x 75)
  • 7
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 8
    8M0053903 FRONT HANDLE
    FRONT HANDLE
  • 9
    23-335891 BUSHING
    BUSHING
  • 10
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 11
    8219423 PAWL
    PAWL
  • 12
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 13
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 15
    54-822873 CLIP
    CLIP
  • 16
    87-8M0042300 SWITCH, Trim
    SN# 1B226999 & Below
    SWITCH, Trim
    SN# 1B226999 & Below
  • 16
    87-8M0042300 SWITCH, Trim
    SN# 1B227000 & Up
    SWITCH, Trim
    SN# 1B227000 & Up
  • 17
    32-842756T01 RIGGING KIT
    RIGGING KIT
  • 18
    842744002 BRACKET
    BRACKET
  • 19
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 20
    843185T02 COUPLER
    COUPLER
  • 21
    32-842756005 HOSE
    HOSE
  • 22
    843174002 COUPLER, Rigging
    COUPLER, Rigging
  • 23
    10-47994 SCREW, (#10 x 1.50)
    SCREW, (#10 x 1.50)
  • 24
    850682A06 HANDLE, Cowl
    HANDLE, Cowl
  • 25
    13-29402 WAVE WASHER
    WAVE WASHER
