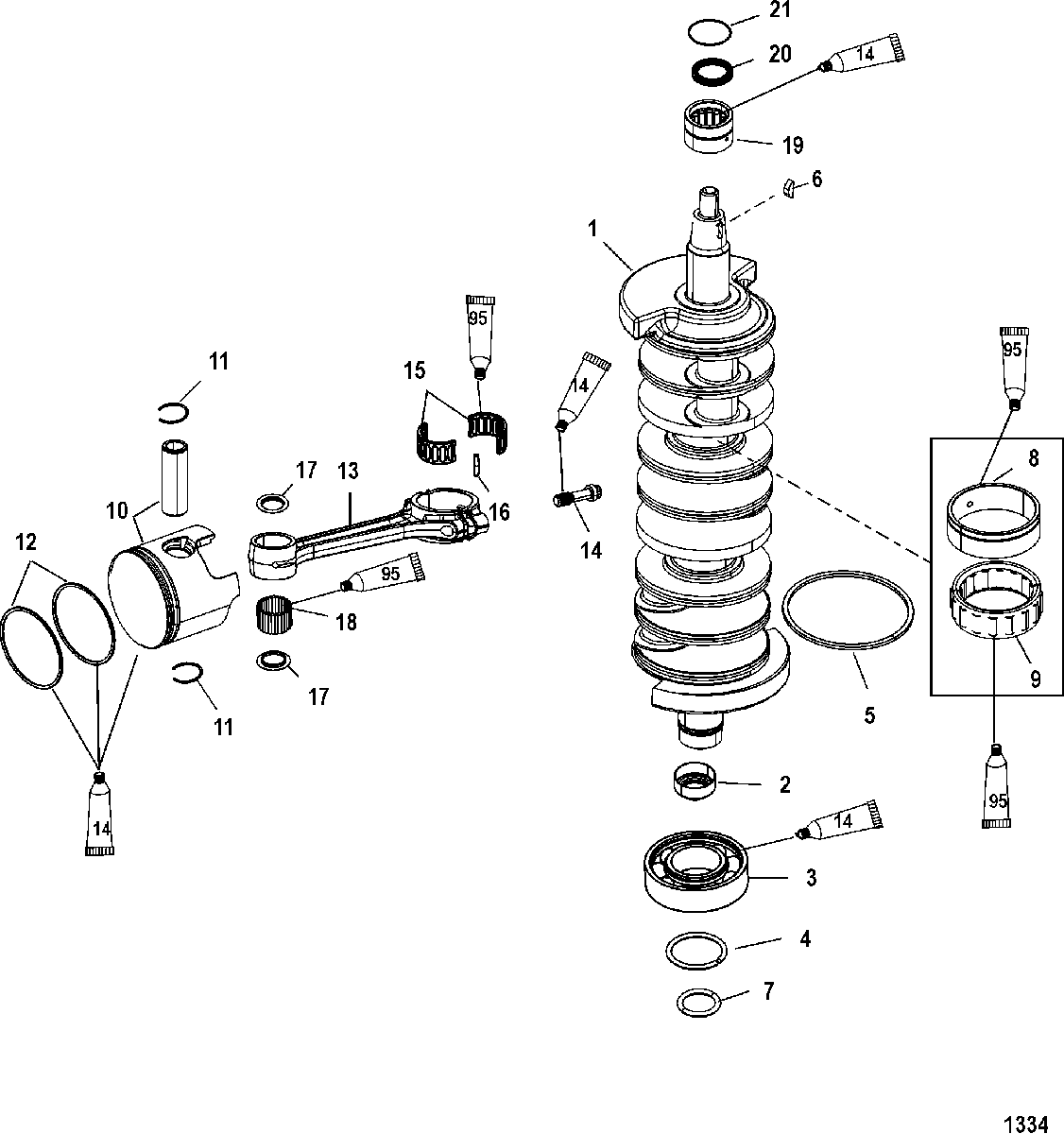

Crankshaft, Pistons and Connecting Rods для Mercury - 225 PRO XS (3.0L DFI) 1B104549 THRU 1B426560

  • №
    Артикул
    Название
  • 1
    482-842753A02 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, Wear Sleeve
    NOT SOLD SEPARATE, Wear Sleeve
  • 3
    30-67923T BEARING, Ball (Lower)
    BEARING, Ball (Lower)
  • 4
    53-67446 RING
    RING
  • 5
    39-843198T01 RING, Seal
    RING, Seal
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 8
    31-88270A02 RACE ASSEMBLY
    RACE ASSEMBLY
  • 9
    31-88269T BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 10
    2720-842986T03 PISTON ASSEMBLY
    (Port) SN# 1B226999 & Below
    PISTON ASSEMBLY
    (Port) SN# 1B226999 & Below
  • 10
    2720-842986T03 PISTON ASSEMBLY
    (Port) SN# 1B227000 & Up
    PISTON ASSEMBLY
    (Port) SN# 1B227000 & Up
  • 10
    2720-843199T13 PISTON ASSEMBLY
    (Starboard) SN# 1B226999 & Below
    PISTON ASSEMBLY
    (Starboard) SN# 1B226999 & Below
  • 10
    2720-843199T13 PISTON ASSEMBLY
    (Starboard) SN# 1B227000 & Up
    PISTON ASSEMBLY
    (Starboard) SN# 1B227000 & Up
  • 11
    40-841202 RING
    RING
  • 12
    39-858772A02 RING SET, Piston
    RING SET, Piston
  • 13
    600-8M0125869 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 15
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • 16
    NSS NOT SOLD SEPARATE, Needle Roller Bearing
    NOT SOLD SEPARATE, Needle Roller Bearing
  • 17
    12-88263 THRUST WASHER
    THRUST WASHER
  • 18
    29-88258001 BEARING, Needle
    BEARING, Needle
  • 19
    31-816773A2 BEARING ASSEMBLY (Upper)
    BEARING ASSEMBLY (Upper)
  • 20
    26-859093 SEAL
    SEAL
  • 21
    25-823683 O-RING, (1.989 x .070)
    O-RING, (1.989 x .070)
  • -
    61-843034A07 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-841220A03 GASKET SET, Powerhead
    GASKET SET, Powerhead
