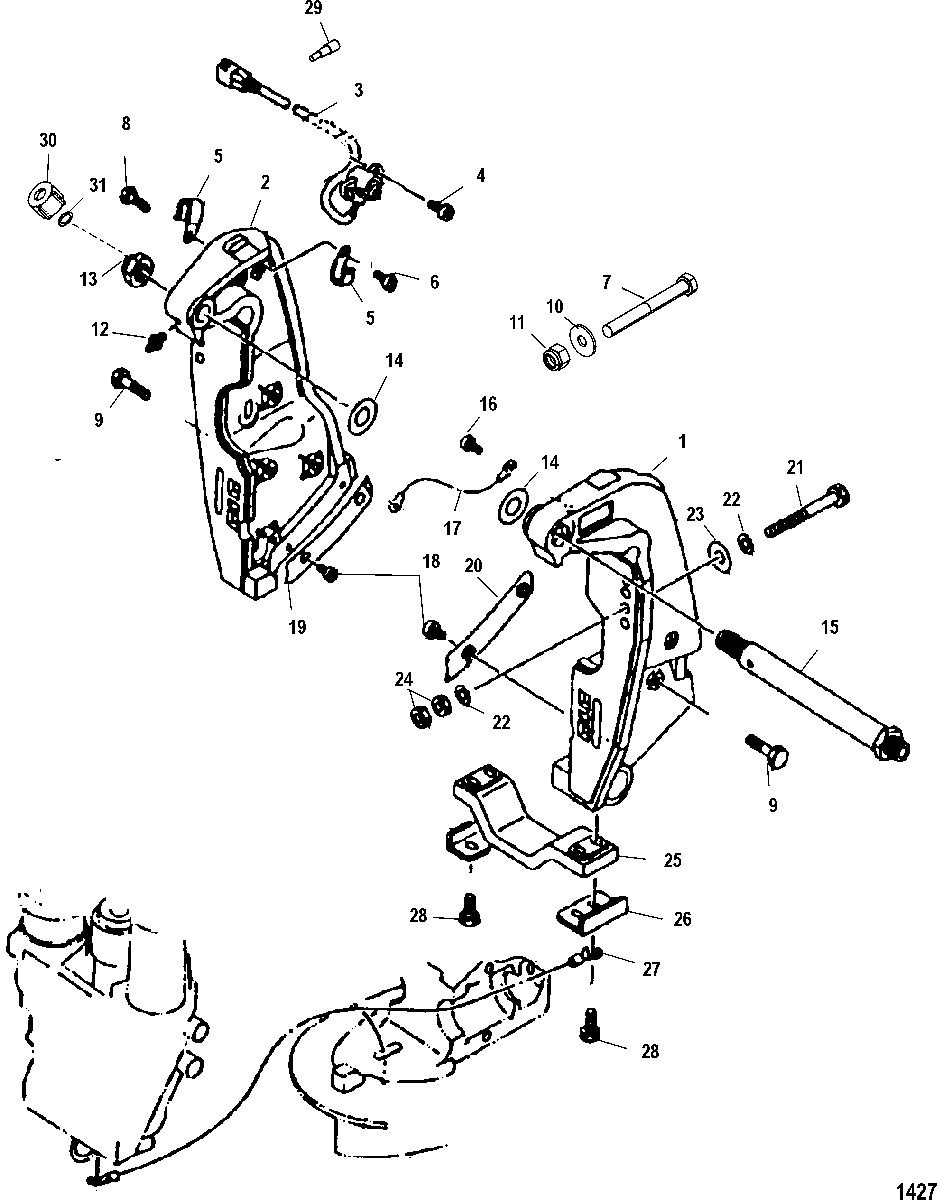

Transom Brackets для Mercury - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
13425-888605T BRACKET, Transom (Port)BRACKET, Transom (Port)
-
23426-888610T BRACKET, Transom (Starboard)BRACKET, Transom (Starboard)
-
3888617001 SENDER, TrimSENDER, Trim
-
410-83870M SCREWSCREW
-
554-8556961 CLAMPCLAMP
-
610-8042671 SCREWSCREW
-
710-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
810-8255012 BOLTBOLT
-
910-8886123 BOLTBOLT
-
1012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1111-82671117 NUT, (.500-20)NUT, (.500-20)
-
1222-82369M FITTINGFITTING
-
1311-879172252 NUTNUT
-
1412-8042642 WASHERWASHER
-
1510-888611 BOLTBOLT
-
1610-8042671 SCREWSCREW
-
1784-16716M GROUND WIREGROUND WIRE
-
1810-804267 SCREWSCREW
-
1923-8886091 SPACERSPACER
-
2023-888609 SPACERSPACER
-
2110-8886121 BOLT, (130 mm)BOLT, (130 mm)
-
2110-8886122 BOLT, (150 mm)BOLT, (150 mm)
-
2212-8883802 WASHERWASHER
-
2312-8883803 WASHERWASHER
-
2411-17090M NUTNUT
-
2597-888606 ANODEANODE
-
26888607 PLATEPLATE
-
2784-888608 GROUND WIREGROUND WIRE
-
2810-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2913541 PLUG, MalePLUG, Male
-
3019624A1 SEAL KITSEAL KIT
-
3125-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
