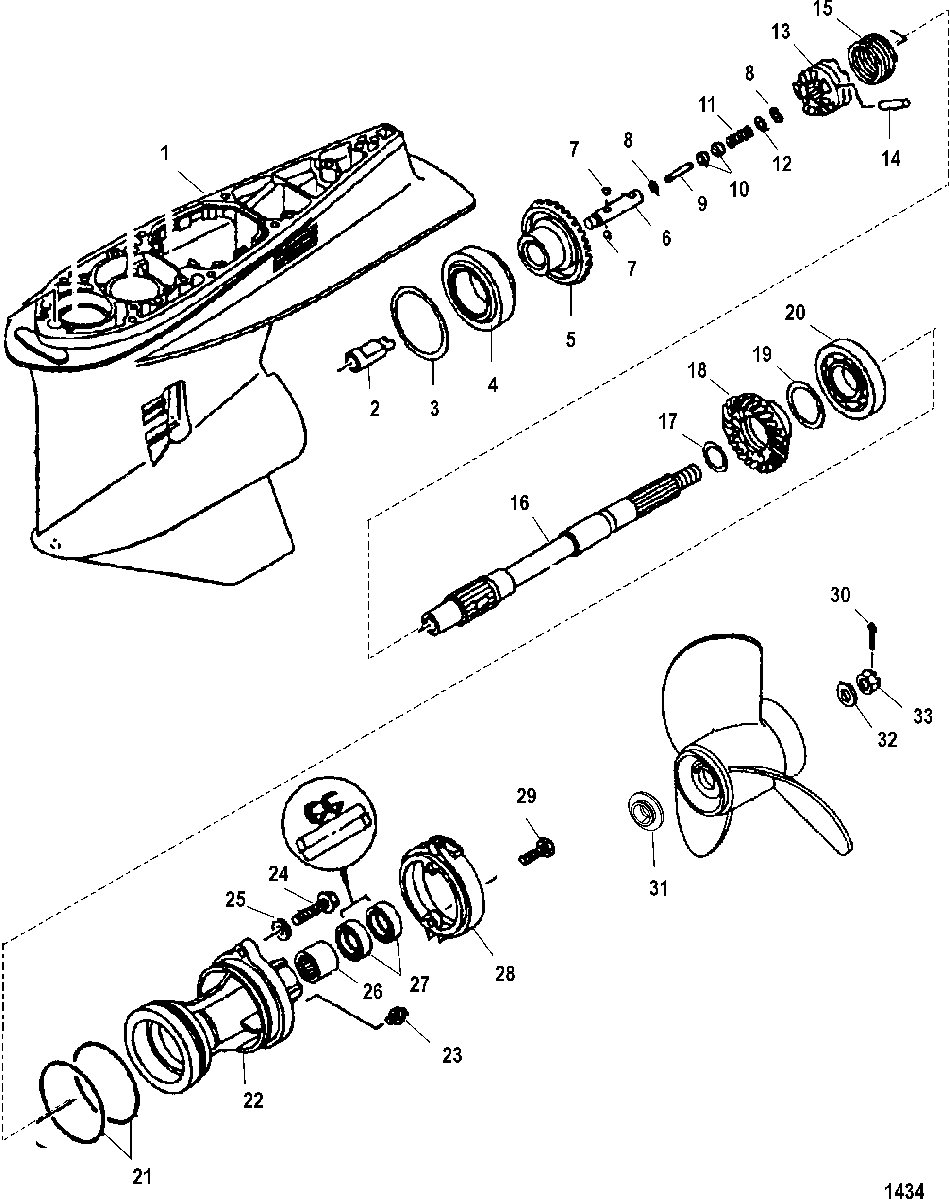

Gear Housing, Propeller Shaft - Standard для Mercury - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
-1623-888680T06 GEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B226999 & Below -
-1623-888680T06 GEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(X-Long) SN# 1B227000 & Up -
-1623-888680T07 GEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B226999 & BelowGEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B226999 & Below -
-1623-888680T07 GEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B227000 & UpGEAR HOUSING ASSEMBLY, Complete
(XX-Long) SN# 1B227000 & Up -
11623-888680T1 GEAR HOUSING ASSEMBLY, Basic (Basic)GEAR HOUSING ASSEMBLY, Basic (Basic)
-
2888700 SHIFTERSHIFTER
-
315-888713A1 SHIM SETSHIM SET
-
431-8886811 BEARINGBEARING
-
543-888698T GEAR, Forward
SN# 1B226999 & BelowGEAR, Forward
SN# 1B226999 & Below -
543-8M0095244 GEAR, Forward
SN# 1B227000 & UpGEAR, Forward
SN# 1B227000 & Up -
6888701 SHIFT SLIDESHIFT SLIDE
-
782346M BALLBALL
-
811-8813142 NUTNUT
-
9888704 SHAFTSHAFT
-
10888705 PLUNGERPLUNGER
-
1124-8887031 SPRINGSPRING
-
1212-8043051 WASHERWASHER
-
1352-888702 CLUTCHCLUTCH
-
1417-8886331 PINPIN
-
1524-888703 SPRINGSPRING
-
1644-888699 PROPELLER SHAFTPROPELLER SHAFT
-
1712-8043052 WASHERWASHER
-
1843-888707T GEAR, Reverse
SN# 1B226999 & BelowGEAR, Reverse
SN# 1B226999 & Below -
1843-888707T02 GEAR, Reverse
SN# 1B227000 & UpGEAR, Reverse
SN# 1B227000 & Up -
1915-888714A1 SHIM SETSHIM SET
-
2031-8886814 BEARINGBEARING
-
2125-8814373 O-RINGO-RING
-
22888706T CARRIER, BearingCARRIER, Bearing
-
2322-8883741 FITTING, GreaseFITTING, Grease
-
2410-8M0086362 BOLTBOLT
-
2512-8043053 WASHERWASHER
-
2631-8886815 BEARINGBEARING
-
2726-8886941 SEAL, OilSEAL, Oil
-
28888708 CAPCAP
-
2910-881816 BOLT, (M8 x 20)BOLT, (M8 x 20)
-
3018-887974 COTTER PINCOTTER PIN
-
3112-8539481 THRUST WASHERTHRUST WASHER
-
3212-887972 WASHERWASHER
-
33859939 PROP NUTPROP NUT
-
-27-888658A03 GASKET SET, Lower Unit
SN# 0T807875 & BelowGASKET SET, Lower Unit
SN# 0T807875 & Below -
-27-888658A04 GASKET SET, Lower Unit
SN# 0T807876 & UpGASKET SET, Lower Unit
SN# 0T807876 & Up
