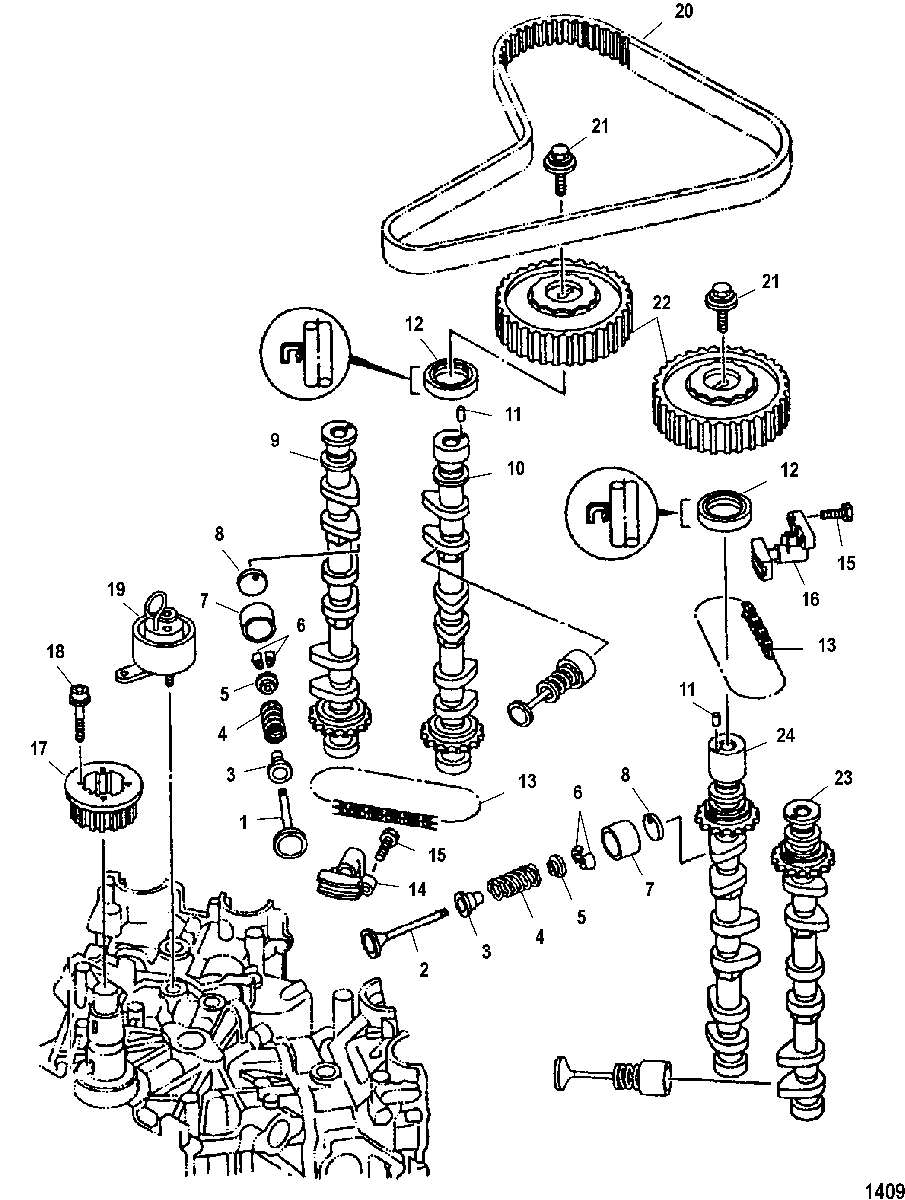

Intake and Exhaust Valves для Mercury - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1887865T VALVE, IntakeVALVE, Intake
-
2887866T VALVE, ExhaustVALVE, Exhaust
-
3887870 SEATSEAT
-
424-887867001 SPRING, Inner ValveSPRING, Inner Valve
-
5887868001 RETAINER
SN# 1B055687 & BelowRETAINER
SN# 1B055687 & Below -
5887868001 RETAINER
SN# 1B055688 & UpRETAINER
SN# 1B055688 & Up -
628-887869 COTTERCOTTER
-
7887871 LIFTERLIFTER
-
815-887872 SHIM
(2.320)SHIM
(2.320) -
815-88787210 SHIM
(2.340)SHIM
(2.340) -
815-88787220 SHIM
(2.360)SHIM
(2.360) -
815-88787230 SHIM
(2.380)SHIM
(2.380) -
815-88787240 SHIM
(2.400)SHIM
(2.400) -
815-88787250 SHIM
(2.420)SHIM
(2.420) -
815-88787260 SHIM
(2.440)SHIM
(2.440) -
815-88787270 SHIM
(2.460)SHIM
(2.460) -
815-88787280 SHIM
(2.480)SHIM
(2.480) -
815-88787290 SHIM
(2.500)SHIM
(2.500) -
815-887872A SHIM
(2.520)SHIM
(2.520) -
815-887872B SHIM
(2.540)SHIM
(2.540) -
815-887872C SHIM
(2.560)SHIM
(2.560) -
815-887872D SHIM
(2.580)SHIM
(2.580) -
815-887872E SHIM
(2.600)SHIM
(2.600) -
815-887872F SHIM
(2.620)SHIM
(2.620) -
815-887872G SHIM
(2.640)SHIM
(2.640) -
815-887872H SHIM
(2.660)SHIM
(2.660) -
815-887872J SHIM
(2.680)SHIM
(2.680) -
815-887872K SHIM
(2.700)SHIM
(2.700) -
815-887872L SHIM
(2.720)SHIM
(2.720) -
815-887872M SHIM
(2.740)SHIM
(2.740) -
815-887872N SHIM
(2.760)SHIM
(2.760) -
815-887872P SHIM
(2.780)SHIM
(2.780) -
815-887872R SHIM
(2.800)SHIM
(2.800) -
815-887872S SHIM
(2.820)SHIM
(2.820) -
815-887872T SHIM
(2.840)SHIM
(2.840) -
815-887872U SHIM
(2.860)SHIM
(2.860) -
815-887872V SHIM
(2.880)SHIM
(2.880) -
815-887872W SHIM
(2.900)SHIM
(2.900) -
815-887872X SHIM
(2.920)SHIM
(2.920) -
815-887872Y SHIM
(2.940)SHIM
(2.940) -
815-887873 SHIM
(2.960)SHIM
(2.960) -
92407-887874T CAMSHAFTCAMSHAFT
-
102407-887875T CAMSHAFTCAMSHAFT
-
1117-804141 PIN, DowelPIN, Dowel
-
1226-804144001 SEAL, OilSEAL, Oil
-
13887878 CHAINCHAIN
-
14887879 TENSIONERTENSIONER
-
1510-887881 BOLTBOLT
-
16887880 TENSIONERTENSIONER
-
1743-887885 GEAR, DriveGEAR, Drive
-
1810-887886 BOLTBOLT
-
19887884001 TENSIONERTENSIONER
-
2057-887883 V BELTV BELT
-
2110-804143001 BOLT, (M10 x 35)BOLT, (M10 x 35)
-
2243-887882 GEAR, DrivenGEAR, Driven
-
232407-887876T CAMSHAFTCAMSHAFT
-
242407-887877T CAMSHAFTCAMSHAFT
-
-900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055687 & BelowCYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055687 & Below -
-900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055688 THRU 1B226999CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055688 THRU 1B226999 -
-900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B227000 & UpCYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B227000 & Up -
-900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055687 & BelowCYLINDER HEAD ASSEMBLY
(Port) SN# 1B055687 & Below -
-900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055688 THRU 1B226999CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055688 THRU 1B226999 -
-900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B227000 & UpCYLINDER HEAD ASSEMBLY
(Port) SN# 1B227000 & Up -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B055687 & BelowPOWERHEAD ASSEMBLY
SN# 1B055687 & Below -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999 -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B227000 & UpPOWERHEAD ASSEMBLY
SN# 1B227000 & Up -
-27-887810A03 GASKET SET, Powerhead
SN# 0T807875 & BelowGASKET SET, Powerhead
SN# 0T807875 & Below -
-27-887810A04 GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687 -
-27-887810A05 GASKET SET, Powerhead
SN# 1B055688 & UpGASKET SET, Powerhead
SN# 1B055688 & Up
