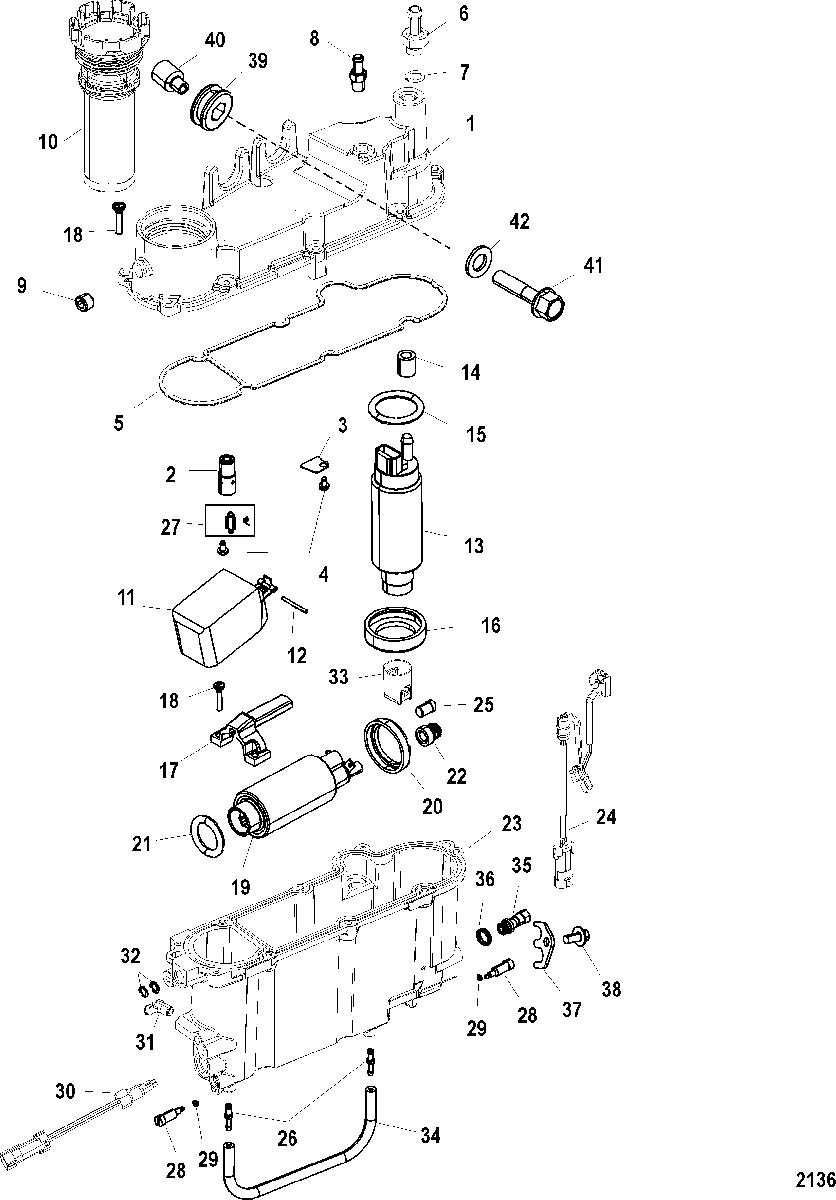

Vapor Separator Components для Mercury - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Vapor Separator Assembly
    SN# 0T800999 & Below
    NOT SOLD SEPARATE, Vapor Separator Assembly
    SN# 0T800999 & Below
  • -
    880133T12 VAPOR SEPARATOR ASSEMBLY
    SN# 0T801000 & Up
    VAPOR SEPARATOR ASSEMBLY
    SN# 0T801000 & Up
  • 1
    889317T1 COVER KIT
    COVER KIT
  • 2
    NSS NOT SOLD SEPARATE, Seat
    NOT SOLD SEPARATE, Seat
  • 3
    889318001 PLATE, Baffle
    SN# 0T800999 & Below
    PLATE, Baffle
    SN# 0T800999 & Below
  • 3
    889318001 PLATE, Baffle
    SN# 0T801000 & Up
    PLATE, Baffle
    SN# 0T801000 & Up
  • 4
    10-883223 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 5
    27-889319 GASKET
    GASKET
  • 6
    22-883556 FITTING
    FITTING
  • 7
    25-8M0062785 O-RING
    O-RING
  • 8
    22-889329 FITTING
    FITTING
  • 9
    19-883208 PLUG
    PLUG
  • 10
    35-8M0122423 FILTER, Fuel
    FILTER, Fuel
  • 11
    889320A1 FLOAT KIT
    FLOAT KIT
  • 12
    F10064 SHAFT
    SHAFT
  • 13
    888725T02 PUMP ASSEMBLY, Fuel - High Pressure
    SN# 0T800999 & Below
    PUMP ASSEMBLY, Fuel - High Pressure
    SN# 0T800999 & Below
  • 13
    888725T02 PUMP ASSEMBLY, Fuel - High Pressure
    SN# 0T801000 & Up
    PUMP ASSEMBLY, Fuel - High Pressure
    SN# 0T801000 & Up
  • 14
    8M6000589 SLEEVE
    SLEEVE
  • 15
    25-8893162 O-RING
    O-RING
  • 16
    26-8M6001412 SEAL
    SEAL
  • 17
    889328 RETAINER
    RETAINER
  • 18
    1395-9643 SCREW
    SCREW
  • 19
    888733T02 PUMP, Boost
    SN# 0T800999 & Below
    PUMP, Boost
    SN# 0T800999 & Below
  • 19
    888733T02 PUMP ASSEMBLY, Boost
    SN# 0T801000 & Up
    PUMP ASSEMBLY, Boost
    SN# 0T801000 & Up
  • 20
    25-889322 GROMMET
    GROMMET
  • 21
    25-889316 O-RING
    O-RING
  • 22
    26-8M6001413 SEAL
    SEAL
  • 23
    889324T03 BOWL KIT
    SN# 0T800999 & Below
    BOWL KIT
    SN# 0T800999 & Below
  • 23
    889324T03 BOWL KIT
    SN# 0T801000 & Up
    BOWL KIT
    SN# 0T801000 & Up
  • 24
    84-889325A02 WIRE
    WIRE
  • 25
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 26
    22-8554241 FITTING
    SN# 0T800999 & Below
    FITTING
    SN# 0T800999 & Below
  • 26
    22-855424011 FITTING
    SN# 0T801000 & Up
    FITTING
    SN# 0T801000 & Up
  • 27
    889326A1 VALVE KIT, Inlet
    VALVE KIT, Inlet
  • 28
    10-889327A1 SCREW, Drian
    SCREW, Drian
  • 29
    25-8893161 O-RING
    O-RING
  • 30
    8M0021043 SENSOR, Water
    SENSOR, Water
  • 31
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    SN# 0T800999 & Below
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    SN# 0T800999 & Below
  • 31
    22-782792 FITTING, Elbow 45 Degree (1.25)
    SN# 0T801000 & Up
    FITTING, Elbow 45 Degree (1.25)
    SN# 0T801000 & Up
  • 32
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 33
    889430 INSERT
    INSERT
  • 34
    32-8835451 HOSE
    SN# 0T800999 & Below
    HOSE
    SN# 0T800999 & Below
  • 34
    32-883545002 HOSE
    SN# 0T801000 & Up
    HOSE
    SN# 0T801000 & Up
  • 35
    884820 SHRADER VALVE
    SHRADER VALVE
  • 36
    25-891778 O-RING
    O-RING
  • 37
    54-884819 CLIP
    CLIP
  • 38
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 39
    25-855362001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 39
    25-855362001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 40
    23-883050 SPACER
    SPACER
  • 41
    10-81893460 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 42
    12-4002318 WASHER
    WASHER
  • -
    25-889316A1 O-RING KIT, Vapor Seperator
    O-RING KIT, Vapor Seperator
