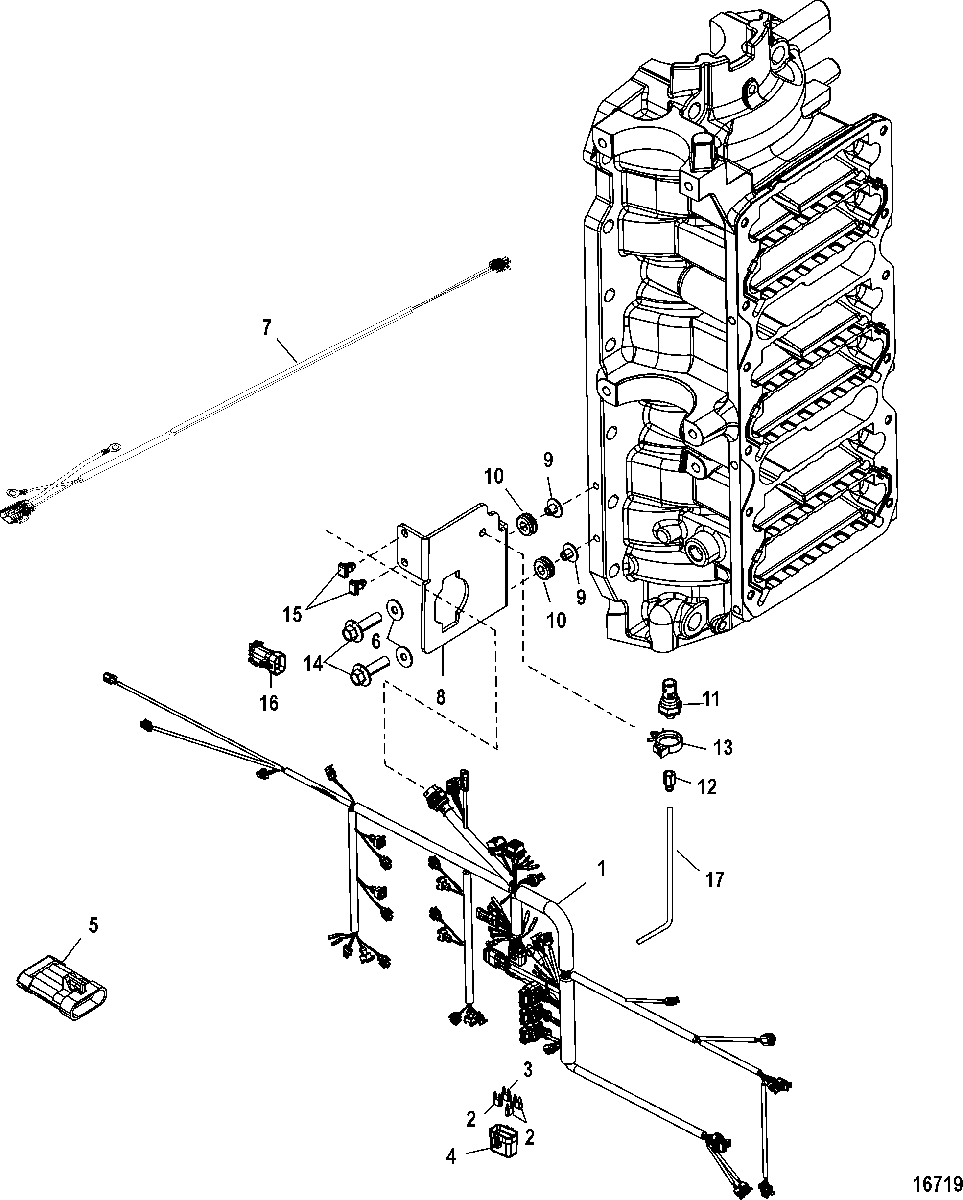

Engine Harness(Serial Number 1B227000 and Up) для Mercury - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701

  • №
    Артикул
    Название
  • 1
    84-892974T03 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 2
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 3
    88-8329692 FUSE, Mini - Gray - 2 Ampere
    FUSE, Mini - Gray - 2 Ampere
  • 4
    858754 COVER, Fuse
    COVER, Fuse
  • -
    879346A49 HARNESS ASSEMBLY (Direct Injector)
    HARNESS ASSEMBLY (Direct Injector)
  • -
    879346A50 HARNESS ASSEMBLY (Fuel Injector)
    HARNESS ASSEMBLY (Fuel Injector)
  • -
    84-881262A2 HARNESS ASSEMBLY, Alternator (Alternator)
    HARNESS ASSEMBLY, Alternator (Alternator)
  • 5
    830796A04 CONNECTOR ASSEMBLY, Weather Cap - Male
    CONNECTOR ASSEMBLY, Weather Cap - Male
  • 6
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 7
    84-8M0113732 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 8
    892295F01 BRACKET
    BRACKET
  • 9
    23-822003 BUSHING
    BUSHING
  • 10
    25-834985 GROMMET
    GROMMET
  • 11
    881879T11 SENSOR, Pressure (0 - 100 PSI)
    SENSOR, Pressure (0 - 100 PSI)
  • 12
    22-892403 FITTING
    FITTING
  • 13
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 14
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    54-879962 CLIP
    CLIP
  • 16
    877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 Pin
    CONNECTOR ASSEMBLY, Weather Cap 6 Pin
  • 17
    32-85944975 TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)
    TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)
