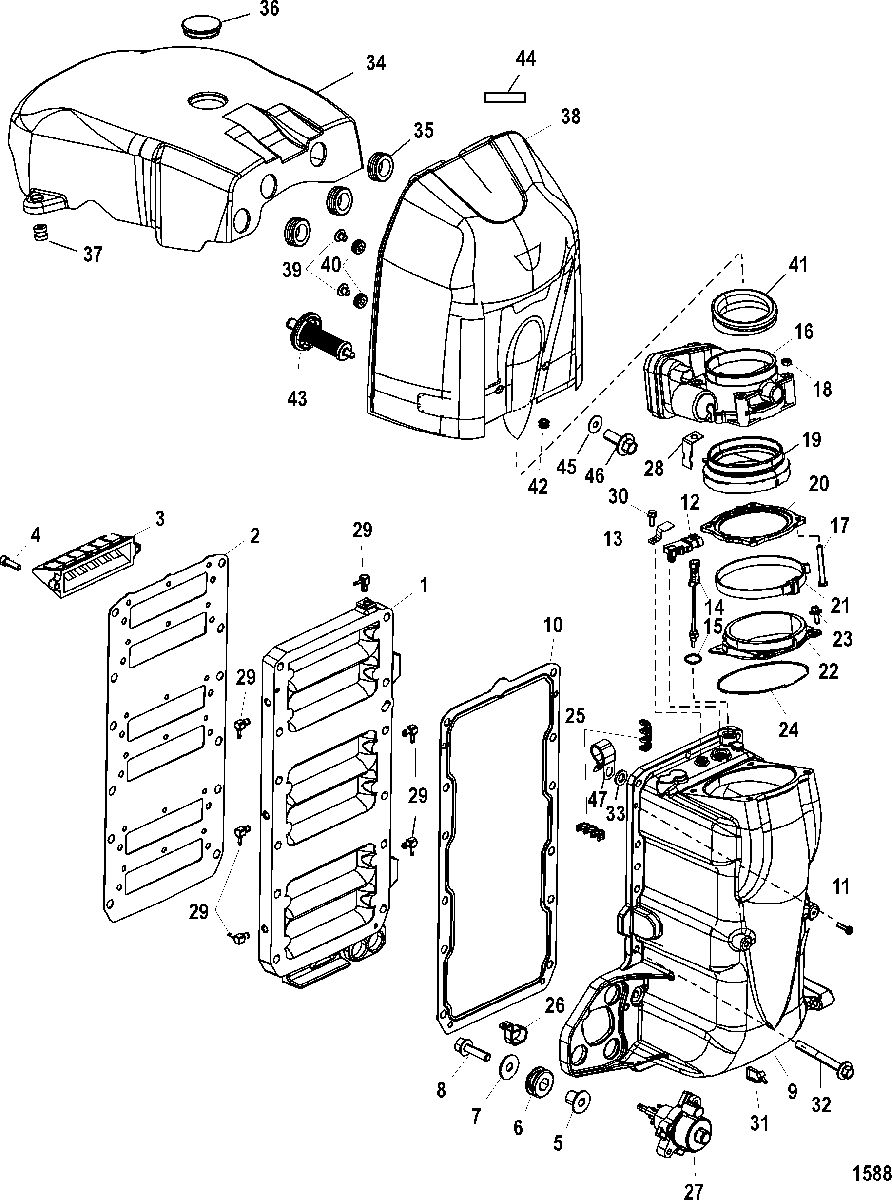

Air Handler для Mercury - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701

  • №
    Артикул
    Название
  • -
    884552T1 AIR HANDLER ASSEMBLY
    SN# 0T800999 & Below
    AIR HANDLER ASSEMBLY
    SN# 0T800999 & Below
  • -
    884552T07 AIR HANDLER ASSEMBLY
    SN# 0T801000 & Up
    AIR HANDLER ASSEMBLY
    SN# 0T801000 & Up
  • 1
    858541T3 PLATE
    PLATE
  • 2
    27-804680 GASKET
    GASKET
  • 3
    828623T6 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 4
    10-8555252 SCREW, (M6)
    SCREW, (M6)
  • 5
    23-855364 BUSHING
    BUSHING
  • 6
    25-855362001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 6
    25-855362001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 7
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 8
    10-81893430 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 9
    858539T6 PLENUM KIT, Air
    PLENUM KIT, Air
  • 10
    27-804679004 GASKET
    SN# 0T979999 & Below
    GASKET
    SN# 0T979999 & Below
  • 10
    27-804679004 GASKET
    SN# 0T980000 & Up
    GASKET
    SN# 0T980000 & Up
  • 11
    10-883942 SCREW, (M4 x 16)
    SCREW, (M4 x 16)
  • 12
    854445 SENSOR, MAP
    SENSOR, MAP
  • 13
    884522 BRACKET, MAP Sensor
    BRACKET, MAP Sensor
  • 14
    889575 SENSOR ASSEMBLY
    SN# 0T800999 & Below
    SENSOR ASSEMBLY
    SN# 0T800999 & Below
  • 14
    885342002 SENSOR ASSEMBLY
    SN# 0T801000 & Up
    SENSOR ASSEMBLY
    SN# 0T801000 & Up
  • 15
    25-627021 O-RING, (.301 x .070)
    SN# 0T800999 & Below
    O-RING, (.301 x .070)
    SN# 0T800999 & Below
  • 15
    25-896699 O-RING, (.351 x .072)
    SN# 0T801000 & Up
    O-RING, (.351 x .072)
    SN# 0T801000 & Up
  • 16
    877828T02 CONTROL, Throttle - Electronic
    CONTROL, Throttle - Electronic
  • 17
    16-881852 STUD, M6 x 50
    STUD, M6 x 50
  • 18
    11-889452 NUT
    NUT
  • 19
    881005 ISOLATOR
    ISOLATOR
  • 20
    880791 PLATE
    PLATE
  • 21
    54-889594 CLAMP
    SN# 0T800999 & Below
    CLAMP
    SN# 0T800999 & Below
  • 21
    54-889594001 CLAMP
    SN# 0T801000 & Up
    CLAMP
    SN# 0T801000 & Up
  • 22
    881004 PLATE
    PLATE
  • 23
    10-82130014 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 24
    25-855426 O-RING
    O-RING
  • 25
    859230T RETAINER
    RETAINER
  • 26
    54-804842 CLAMP
    CLAMP
  • 27
    8M0128080 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 28
    884353 BRACKET
    BRACKET
  • 29
    21-858870 CHECK VALVE
    CHECK VALVE
  • 30
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 31
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 32
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 33
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 34
    880083T1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 35
    25-13467 GROMMET, (.88 Inside Diameter)
    GROMMET, (.88 Inside Diameter)
  • 36
    19-89219001 PLUG
    SN# 0T979999 & Below
    PLUG
    SN# 0T979999 & Below
  • 36
    19-89219001 PLUG
    SN# 0T980000 & Up
    PLUG
    SN# 0T980000 & Up
  • 37
    25-821555001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 37
    25-821555001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 38
    881277T2 ATTENUATOR
    ATTENUATOR
  • 39
    23-856954 BUSHING
    BUSHING
  • 40
    25-834985 GROMMET
    GROMMET
  • 41
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 42
    25-20116 GROMMET
    GROMMET
  • 43
    35-880084T01 FILTER ASSEMBLY
    FILTER ASSEMBLY
  • 44
    37-881865 DECAL, Caution-Start in Gear (Start In Gear)
    DECAL, Caution-Start in Gear (Start In Gear)
  • 45
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 46
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 47
    54-858902 CLAMP
    CLAMP
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    877869A07 POWERHEAD ASSEMBLY
    SN# 0T800999 & Below
    POWERHEAD ASSEMBLY
    SN# 0T800999 & Below
  • -
    877869A07 POWERHEAD ASSEMBLY
    SN# 0T801000 & Up
    POWERHEAD ASSEMBLY
    SN# 0T801000 & Up
