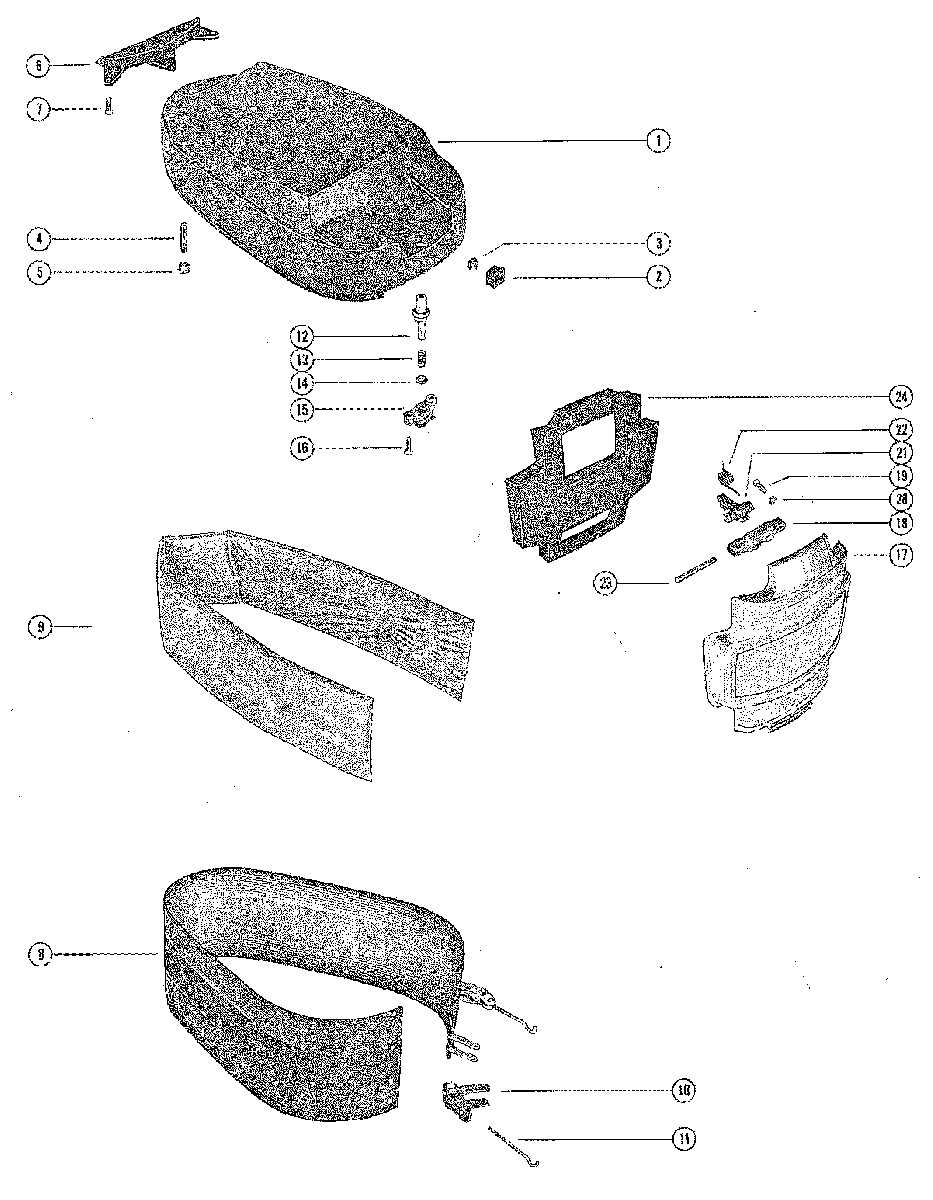

TOP COWL, WRAP AROUND COWL AND FRONT COVER для Mercury - 200 9016254 THRU 9157229
-
№АртикулНазвание
-
12130-4361A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
277859A1 INSERT,ROPE GUIDE-TOP COWLINSERT,ROPE GUIDE-TOP COWL
-
353-72168 RING,RETAINING-ROPE GUIDE TO TOP COWL
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWRING,RETAINING-ROPE GUIDE TO TOP COWL
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
416-21553 STUD,TOP COWL TO MOUNTING BRACKETS (1 1/2")
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWSTUD,TOP COWL TO MOUNTING BRACKETS (1 1/2")
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
353-72168 RING,RETAINING-ROPE GUIDE TO TOP COWL
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPRING,RETAINING-ROPE GUIDE TO TOP COWL
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
416-72166 STUD,TOP COWL TO MOUNTING BRACKETS (1 1/2")
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPSTUD,TOP COWL TO MOUNTING BRACKETS (1 1/2")
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
511-82670911 NUT,TOP COWL STUDNUT,TOP COWL STUD
-
639400 SHIELD,REAR-TOP COWLSHIELD,REAR-TOP COWL
-
71352-4440A1 SCREW,REAR SHIELD TO TOP COWL (5/8)SCREW,REAR SHIELD TO TOP COWL (5/8)
-
82133-2706A5 WRAP AROUND COWL ASSEMBLY,CO,PLETEWRAP AROUND COWL ASSEMBLY,CO,PLETE
-
939606 BLANKET,WRAP AROUND COWL (EARLY MODELS)BLANKET,WRAP AROUND COWL (EARLY MODELS)
-
1046785A1 ,COWL LATCH ASSEMBLY,COWL LATCH ASSEMBLY
-
1130413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1239628 BUTTON,FRONT COVER RELEASE-TOP COWLBUTTON,FRONT COVER RELEASE-TOP COWL
-
1324-20099 SPRING-COMPRESSION-FRONT COVER RELEASE BUTTONSPRING-COMPRESSION-FRONT COVER RELEASE BUTTON
-
1412-29245 WASHER,FRONT COVER RELEASE BUTTONWASHER,FRONT COVER RELEASE BUTTON
-
1560865 CATCH,FRONT COVER-TOP COWLCATCH,FRONT COVER-TOP COWL
-
1610-37978 SCREW,FRONT COVER LATCH TO TOP COWL (3/4")SCREW,FRONT COVER LATCH TO TOP COWL (3/4")
-
172127-5669A2 FRONT COVER ASSEMBLY,COMPLETE
UNITED STATES 4102789 AND BELOW
AUSTRALIA 8026164 AND BELOW
BELGIUM 9070128 AND BELOW
CANADA 7044782 AND BELOWFRONT COVER ASSEMBLY,COMPLETE
UNITED STATES 4102789 AND BELOW
AUSTRALIA 8026164 AND BELOW
BELGIUM 9070128 AND BELOW
CANADA 7044782 AND BELOW -
172127-5669A2 FRONT COVER ASSEMBLY,COMPLETE
UNITED STATES 4102790 AND UP
AUSTRALIA 8026165 AND UP
BELGIUM 9070129 AND UP
CANADA 7044783 AND UPFRONT COVER ASSEMBLY,COMPLETE
UNITED STATES 4102790 AND UP
AUSTRALIA 8026165 AND UP
BELGIUM 9070129 AND UP
CANADA 7044783 AND UP -
1860867A1 BASE ASSEMBLY,FRONT COVER LATCHBASE ASSEMBLY,FRONT COVER LATCH
-
1910-48409 SCREW,LATCH BASE TO FRONT COVER (5/8")SCREW,LATCH BASE TO FRONT COVER (5/8")
-
2012-26014 WASHER,LATCH BASE SCREWWASHER,LATCH BASE SCREW
-
2160866 HOOK,FRONT COVER LATCHHOOK,FRONT COVER LATCH
-
2224-39598 SPRING,TORISON-FRONT COVER LATCH HOOKSPRING,TORISON-FRONT COVER LATCH HOOK
-
2317-39599 PIN,PIVOT-FRONT COVER LATCH HOOKPIN,PIVOT-FRONT COVER LATCH HOOK
-
2439936 BLANKET,SOUND ABSORBING-FRONT COVERBLANKET,SOUND ABSORBING-FRONT COVER
