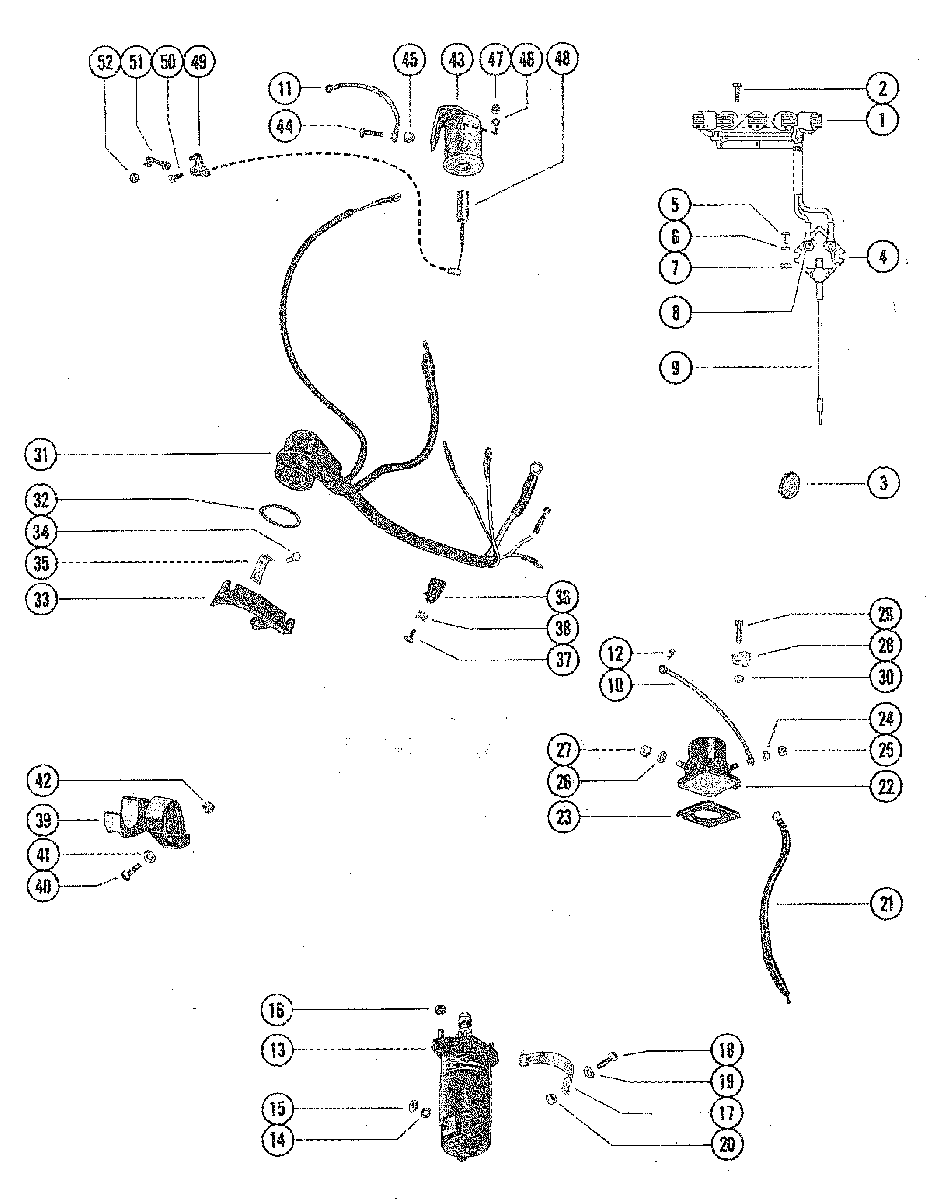

ELECTRIC COMPONENTS для Mercury - 200 9016254 THRU 9157229

  • №
    Артикул
    Название
  • 1
    74367A9 LIGHTING STATOR ASSEMBLY
    LIGHTING STATOR ASSEMBLY
  • 2
    10-88447 SCREW, LIGHTING STATOR ATTACHING (1 5/8")
    SCREW, LIGHTING STATOR ATTACHING (1 5/8")
  • 2
    10-66707 SCREW, LIGHTING STATOR ATTACHING (7/8")
    SCREW, LIGHTING STATOR ATTACHING (7/8")
  • 3
    19-75045 PLUG, BOTTOM COWL
    PLUG, BOTTOM COWL
  • 4
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 5
    10-25764 SCREW, RECTIFIER TO REAR BRACKET (1/2")
    SCREW, RECTIFIER TO REAR BRACKET (1/2")
  • 6
    23-62769 SPACER, RECTIFIER SCREW
    SPACER, RECTIFIER SCREW
  • 7
    11-27164 NUT, RECTIFIER SCREW
    NUT, RECTIFIER SCREW
  • 8
    11-45076 NUT, RECTIFIER TERMINALS
    NUT, RECTIFIER TERMINALS
  • 9
    84-61393A7 WIRE ASSEMBLY, RECTIFIER TO STARTER SOLENOID (RED)
    WIRE ASSEMBLY, RECTIFIER TO STARTER SOLENOID (RED)
  • 10
    84-60466A21 WIRE ASSEMBLY, STARTER SOLENOID TO GROUND (BLACK)
    WIRE ASSEMBLY, STARTER SOLENOID TO GROUND (BLACK)
  • 11
    84-60871A14 WIRE ASSEMBLY, CHOKE SOLENOID TO SWITCH BOX PLATE (BLACK0)
    WIRE ASSEMBLY, CHOKE SOLENOID TO SWITCH BOX PLATE (BLACK0)
  • 12
    10-62568 SCREW, WIRE TO SWITCH BOX PLATE (3/8")
    SCREW, WIRE TO SWITCH BOX PLATE (3/8")
  • 13
    50-97949A1 STARTER MOTOR
    SEE PAGE 26E, SECTION "E", FOR BREAKDOWN OF STARTER MOTOR
    STARTER MOTOR
    SEE PAGE 26E, SECTION "E", FOR BREAKDOWN OF STARTER MOTOR
  • 14
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 15
    11-20088 NUT, STARTER MOTOR TERMINAL (1/4 - 28)
    NUT, STARTER MOTOR TERMINAL (1/4 - 28)
  • 16
    11-8267089 NUT, STARTER MOTOR STUDS (1/4 - 28)
    NUT, STARTER MOTOR STUDS (1/4 - 28)
  • 17
    54-47993 CLAMP, STARTER MOTOR FASTENING
    CLAMP, STARTER MOTOR FASTENING
  • 18
    10-22483 SCREW, STARTER MOTOR CLAMP TO CYLINDER BLOCK (1 1/8")
    SCREW, STARTER MOTOR CLAMP TO CYLINDER BLOCK (1 1/8")
  • 19
    12-46897 WASHER, STARTER MOTOR CLAMP SCREW
    WASHER, STARTER MOTOR CLAMP SCREW
  • 20
    11-8267089 NUT, STARTER MOTOR CLAMP SCREW (1/4 - 28)
    NUT, STARTER MOTOR CLAMP SCREW (1/4 - 28)
  • 21
    84-65063 CABLE, JUMPER - STARTER MOTOR TO STARTER SOLENOID
    CABLE, JUMPER - STARTER MOTOR TO STARTER SOLENOID
  • 22
    47886T SOLENOID, STARTER
    SOLENOID, STARTER
  • 23
    27-47829 GASKET, STARTER SOLENOID
    GASKET, STARTER SOLENOID
  • 24
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 25
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 26
    13-20202 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 27
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16 - 24)
    NUT, STARTER SOLENOID TERMINAL (5/16 - 24)
  • 28
    54-47830 CLAMP, NYLON - STARTER SOLENOID FASTENING
    CLAMP, NYLON - STARTER SOLENOID FASTENING
  • 29
    10-45862 SCREW, STARTER SOLENOID CLAMP TO CRANKCASE (7/8")
    SCREW, STARTER SOLENOID CLAMP TO CRANKCASE (7/8")
  • 30
    11-46438 NUT, STARTER SOLENOID CLAMP SCREW
    NUT, STARTER SOLENOID CLAMP SCREW
  • 31
    84-74904A1 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 32
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 33
    54-76368 CLAMP, INTERNAL WIRING HARNESS TO BOTTOM COWL
    CLAMP, INTERNAL WIRING HARNESS TO BOTTOM COWL
  • 34
    10-61802 SCREW, LEAD WIRE AND HARNESS CLAMP TO BOTTOM COWL (7/8")
    SCREW, LEAD WIRE AND HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 35
    54-33361 CLAMP, LEAD WIRE FASTENING TO HARNESS CLAMP
    CLAMP, LEAD WIRE FASTENING TO HARNESS CLAMP
  • 36
    54-23567 CLAMP, WIRING HARNESS TO CRANKCASE FLANGE
    CLAMP, WIRING HARNESS TO CRANKCASE FLANGE
  • 37
    10-69079 SCREW, WIRING HARNESS CLAMP FASTENING (7/16")
    SCREW, WIRING HARNESS CLAMP FASTENING (7/16")
  • 38
    8M0084613 "D" WASHER, WIRING HARNESS CLAMP
    "D" WASHER, WIRING HARNESS CLAMP
  • 39
    47951 BRACKET, SUPPORT - EXTERNAL WIRING HARNESS
    BRACKET, SUPPORT - EXTERNAL WIRING HARNESS
  • 40
    10-36137 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1")
  • 41
    12-24664 WASHER, WIRING HARNESS SUPPORT SCREW
    WASHER, WIRING HARNESS SUPPORT SCREW
  • 42
    11-20184 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 43
    54292A6 CHOKE SOLENOID
    CHOKE SOLENOID
  • 44
    10-22956 SCREW, CHOKE SOLENOID TO FRONT COWL SUPPORT BRACKET (7/8")
    SCREW, CHOKE SOLENOID TO FRONT COWL SUPPORT BRACKET (7/8")
  • 45
    11-20184 NUT, CHOKE SOLENOID SCREW
    NUT, CHOKE SOLENOID SCREW
  • 46
    13-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL
    LOCKWASHER, CHOKE SOLENOID TERMINAL
  • 47
    11-68219 NUT, CHOKE SOLENOID TERMINAL
    NUT, CHOKE SOLENOID TERMINAL
  • 48
    56074A10 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 49
    65108 LEVER, CHOKE
    LEVER, CHOKE
  • 50
    10-65109 SCREW, CHOKE LEVER TO CARBURETOR
    SCREW, CHOKE LEVER TO CARBURETOR
  • 51
    65107 LINK, CHOKE
    LINK, CHOKE
  • 52
    11-65110 NUT, LINK TO CHOKE LEVER
    NUT, LINK TO CHOKE LEVER
