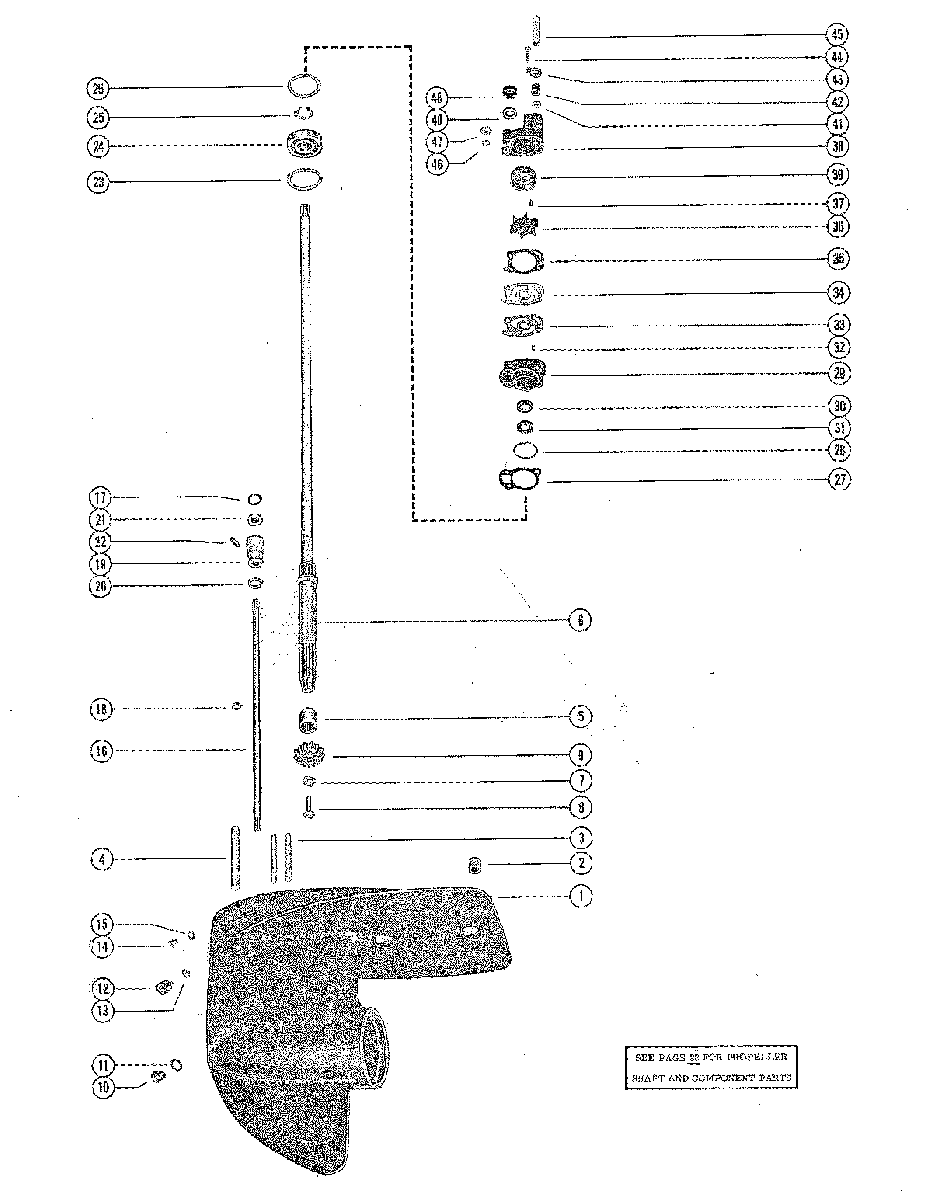

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 200 9016254 THRU 9157229
-
№АртикулНазвание
-
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
UNITED STATES 4102789 AND BELOW
AUSTRALIA 8026164 AND BELOW
BELGIUM 9070128 AND BELOW
CANADA 7044782 AND BELOWGEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
UNITED STATES 4102789 AND BELOW
AUSTRALIA 8026164 AND BELOW
BELGIUM 9070128 AND BELOW
CANADA 7044782 AND BELOW -
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
UNITED STATES 4102789 AND BELOW
AUSTRALIA 8026164 AND BELOW
BELGIUM 9070128 AND BELOW
CANADA 7044782 AND BELOWGEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
UNITED STATES 4102789 AND BELOW
AUSTRALIA 8026164 AND BELOW
BELGIUM 9070128 AND BELOW
CANADA 7044782 AND BELOW -
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
UNITED STATES 4102790 THRU 4351589
AUSTRALIA 8026165 THRU 8036049
BELGIUM 9070129 THRU 9104813
CANADA 7044783 THRU 7067847GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
UNITED STATES 4102790 THRU 4351589
AUSTRALIA 8026165 THRU 8036049
BELGIUM 9070129 THRU 9104813
CANADA 7044783 THRU 7067847 -
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
UNITED STATES 4102790 THRU 4351589
AUSTRALIA 8026165 THRU 8036049
BELGIUM 9070129 THRU 9104813
CANADA 7044783 THRU 7067847GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
UNITED STATES 4102790 THRU 4351589
AUSTRALIA 8026165 THRU 8036049
BELGIUM 9070129 THRU 9104813
CANADA 7044783 THRU 7067847 -
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
11627-6006A5 GEAR HOUSING ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWGEAR HOUSING ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
11627-6006A5 GEAR HOUSING ASSEMBLY
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPGEAR HOUSING ASSEMBLY
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
217-20201 PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSINGPIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
-
316-58137 STUD, WATER PUMP TO GEAR HOUSING (3 1/8")STUD, WATER PUMP TO GEAR HOUSING (3 1/8")
-
416-58135 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")
-
531-28157 BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
645-93300A1 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4580036 AND BELOW
AUSTRALIA 8043124 AND BELOW
BELGIUM 9137349 AND BELOW
CANADA 7089697 AND BELOWDRIVE SHAFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4580036 AND BELOW
AUSTRALIA 8043124 AND BELOW
BELGIUM 9137349 AND BELOW
CANADA 7089697 AND BELOW -
645-93301A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
UNITED STATES 4580036 AND BELOW
AUSTRALIA 8043124 AND BELOW
BELGIUM 9137349 AND BELOW
CANADA 7089697 AND BELOWDRIVE SHAFT ASSEMBLY (LONG SHAFT)
UNITED STATES 4580036 AND BELOW
AUSTRALIA 8043124 AND BELOW
BELGIUM 9137349 AND BELOW
CANADA 7089697 AND BELOW -
645-93300A1 DRIVE SAHFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4580037 AND UP
AUSTRALIA 8043125 AND UP
BELGIUM 9137350 AND UP
CANADA 7089698 AND UPDRIVE SAHFT ASSEMBLY (SHORT SHAFT)
UNITED STATES 4580037 AND UP
AUSTRALIA 8043125 AND UP
BELGIUM 9137350 AND UP
CANADA 7089698 AND UP -
645-93301A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
UNITED STATES 4580037 AND UP
AUSTRALIA 8043125 AND UP
BELGIUM 9137350 AND UP
CANADA 7089698 AND UPDRIVE SHAFT ASSEMBLY (LONG SHAFT)
UNITED STATES 4580037 AND UP
AUSTRALIA 8043125 AND UP
BELGIUM 9137350 AND UP
CANADA 7089698 AND UP -
714-49911 TAB WASHER, PINION GEAR SCREWTAB WASHER, PINION GEAR SCREW
-
810-49908 SCREW, PINION GEAR TO DRIVE SHAFT SCREW (3/4")SCREW, PINION GEAR TO DRIVE SHAFT SCREW (3/4")
-
943-45189 GEAR, PINIONGEAR, PINION
-
1010-79953Q04 SCREW, GREASE FILLER (1/4")SCREW, GREASE FILLER (1/4")
-
1112-191833 WASHER, GREASE FILLER SCREWWASHER, GREASE FILLER SCREW
-
1219-48750 PLUG, GEAR HOUSING FLUSHINGPLUG, GEAR HOUSING FLUSHING
-
1312-49221 WASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUGWASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUG
-
1410-28653 SCREW, GREASE VENT (1/4")SCREW, GREASE VENT (1/4")
-
1519643 WASHER, GREASE VENT SCREWWASHER, GREASE VENT SCREW
-
1656829A1 SHAFT ASSEMBLY, SHIFT - LOWER (SHORT SHAFT)SHAFT ASSEMBLY, SHIFT - LOWER (SHORT SHAFT)
-
1656830A1 SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)
-
1725-38933 "O" RING, LOWER SHIFT SHAFT"O" RING, LOWER SHIFT SHAFT
-
1853-22899 RING, RETAINING - SHIFT SHAFTRING, RETAINING - SHIFT SHAFT
-
1923-30676A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
2025-26802 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
2126-30696 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
2210-39149 SCREW, SHIFT SHAFT BUSHING RETAINER (1/2")SCREW, SHIFT SHAFT BUSHING RETAINER (1/2")
-
2315-20804A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
-
2430-69389 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
2553-33463 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
2615-20804A1 SHIM, GEAR HOUSING TO WATER PUMP BASE (.002-3-5-10)SHIM, GEAR HOUSING TO WATER PUMP BASE (.002-3-5-10)
-
2727-39626 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
2825-33466 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
2946-48744A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
3026-20070 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
3126-897154 OIL SEAL, WATER PUMP BASE (SPRING LOADED)OIL SEAL, WATER PUMP BASE (SPRING LOADED)
-
3217-8M0084627 PIN, DOWEL - WATER PUMP BASE TO WATER PUMP BODYPIN, DOWEL - WATER PUMP BASE TO WATER PUMP BODY
-
3327-39625 GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)
-
3439624 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
3527-396231 GASKET, FACE PLATE TO WATER PUMP BODY (UPPER)GASKET, FACE PLATE TO WATER PUMP BODY (UPPER)
-
3647-89982 IMPELLER, WATER PUMP - PART OF DRIVE SHAFT ASSEMBLYIMPELLER, WATER PUMP - PART OF DRIVE SHAFT ASSEMBLY
-
3728-56661 KEY, IMPELLER DRIVE - PART OF DRIVE SHAFT ASSEMBLYKEY, IMPELLER DRIVE - PART OF DRIVE SHAFT ASSEMBLY
-
3846-87458A2 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
3948754 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
4026-20070 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
4123-86215 WASHER, NYLON - WATER PUMP BODYWASHER, NYLON - WATER PUMP BODY
-
4226-25329 SEAL, WATER PUMP BODYSEAL, WATER PUMP BODY
-
4345010 RETAINER, WATER PUMP BODY SEALRETAINER, WATER PUMP BODY SEAL
-
4410-455611 SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")
-
4523-45170 SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
4612-36001 WASHER, WATER PUMP STUDSWASHER, WATER PUMP STUDS
-
4711-826709111 NUT, WATER PUMP STUDSNUT, WATER PUMP STUDS
-
4812-20684 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
