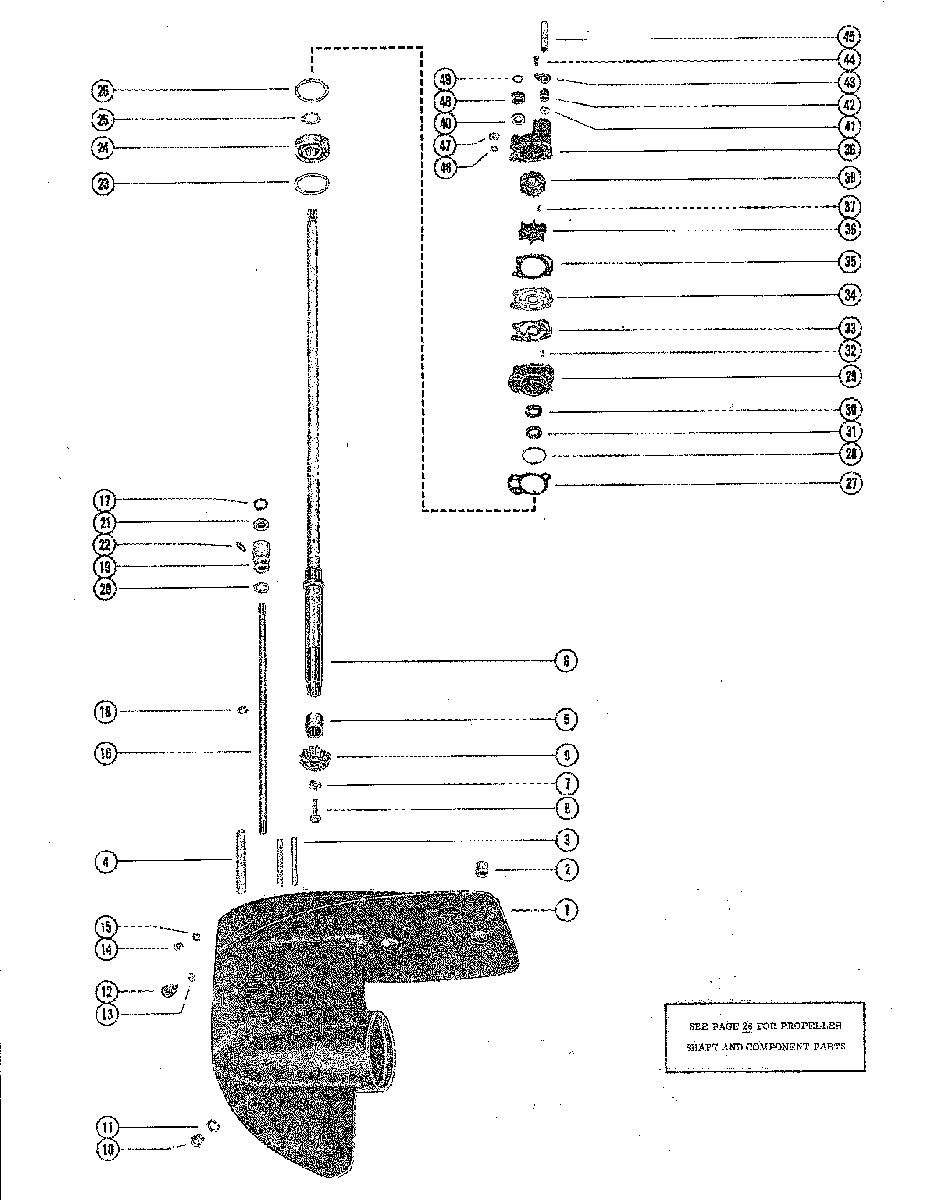

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 200 2827677 THRU 3226957
-
№АртикулНазвание
-
-1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SERIAL #2827677GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SERIAL #2827677
-
-1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
-
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SERIAL #2991679GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SERIAL #2991679
-
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
-
11627-3482A1 GEAR HOUSING ASSEMBLY(SERIAL #2827677 THRU #2893435)GEAR HOUSING ASSEMBLY(SERIAL #2827677 THRU #2893435)
-
11627-6006A5 GEAR HOUSING ASSEMBLY(SERIAL #2991679 AND UP)GEAR HOUSING ASSEMBLY(SERIAL #2991679 AND UP)
-
217-20201 PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSINGPIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
-
316-58137 STUD, WATER PUMP TO GEAR HOUSING (3 1/8")STUD, WATER PUMP TO GEAR HOUSING (3 1/8")
-
416-58135 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")
-
531-28157 BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
645-93300A1 DRIVE SHAFT ASSEMBLY(SHORT SHAFT)DRIVE SHAFT ASSEMBLY(SHORT SHAFT)
-
645-93301A1 DRIVE SHAFT ASSEMBLY(LONG SHAFT)DRIVE SHAFT ASSEMBLY(LONG SHAFT)
-
714-49911 TAB WASHER, PINION GEAR SCREWTAB WASHER, PINION GEAR SCREW
-
810-49908 SCREW, PINION GEAR TO DRIVE SHAFTSCREW, PINION GEAR TO DRIVE SHAFT
-
943-45189 GEAR, PINIONGEAR, PINION
-
1010-79953Q04 SCREW, GREASE FILLERSCREW, GREASE FILLER
-
1112-191833 WASHER, GREASE FILLER SCREWWASHER, GREASE FILLER SCREW
-
1219-48750 PLUG, GEAR HOUSING FLUSHINGPLUG, GEAR HOUSING FLUSHING
-
1312-49221 WASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUGWASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUG
-
1410-28653 SCREW, GREASE VENTSCREW, GREASE VENT
-
1519643 WASHER, GREASE VENT SCREWWASHER, GREASE VENT SCREW
-
1656829A1 SHAFT ASSEMBLY, SHIFT - LOWER(SHORT SHAFT)SHAFT ASSEMBLY, SHIFT - LOWER(SHORT SHAFT)
-
1656830A1 SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)
-
1725-38933 "O" RING, LOWER SHIFT SHAFT"O" RING, LOWER SHIFT SHAFT
-
1853-22899 RING, RETAINING - SHIFT SHAFTRING, RETAINING - SHIFT SHAFT
-
1923-30676A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
2025-26802 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
2126-30696 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
2210-39149 SCREW, SHIFT SHAFT BUSHING RETAINERSCREW, SHIFT SHAFT BUSHING RETAINER
-
2315-20804A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
-
2430-69389 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
2553-33463 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
2615-20804A1 SHIM, GEAR HOUSING TO WATER PUMP BASE(.002-3-5-10)SHIM, GEAR HOUSING TO WATER PUMP BASE(.002-3-5-10)
-
2727-39626 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
2825-33466 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
2946-48744A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
3026-20070 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
3126-897154 OIL SEAL, WATER PUMP BASE (SPRING LOADED)OIL SEAL, WATER PUMP BASE (SPRING LOADED)
-
3217-8M0084627 PIN, DOWEL _ WATER PUMP BASE TO WATER PUMP BODYPIN, DOWEL _ WATER PUMP BASE TO WATER PUMP BODY
-
3327-39625 GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)
-
3439624 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
3527-396231 GASKET, FACT PLATE TO WATER PUMP BODY (UPPER)GASKET, FACT PLATE TO WATER PUMP BODY (UPPER)
-
3647-89982 IMPELLER, WATER PUMP PART OF DRIVE SHAFT ASSEMBLYIMPELLER, WATER PUMP PART OF DRIVE SHAFT ASSEMBLY
-
3728-56661 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3846-87458A2 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
3948754 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
4026-20070 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
4123-86215 WASHER, NYLON - WATER PUMP BODYWASHER, NYLON - WATER PUMP BODY
-
4226-25329 SEAL, WATER PUMP BODYSEAL, WATER PUMP BODY
-
4345010 RETAINER, WATER PUMP BODY SEALRETAINER, WATER PUMP BODY SEAL
-
4410-455611 SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")
-
4523-45170 SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
4612-36001 WASHER, WATER PUMP STUDSWASHER, WATER PUMP STUDS
-
4711-826709111 NUT, WATER PUMP STUDSNUT, WATER PUMP STUDS
-
4812-20684 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
4925-26802 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
-1627-3482A13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SERIAL #282767GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SERIAL #282767
-
-1627-3482A14 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
-
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SERIAL #2991679GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SERIAL #2991679
-
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
