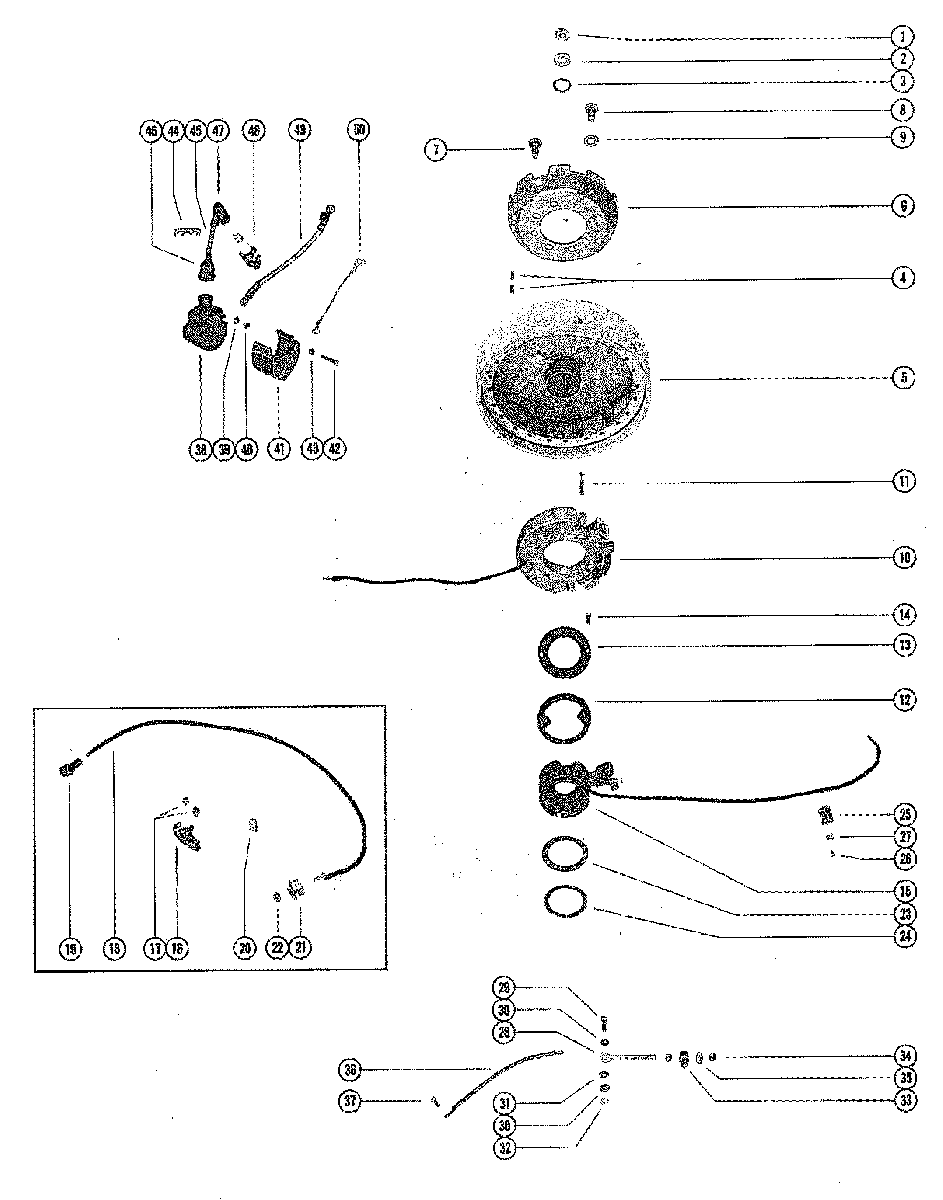

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 200 2827677 THRU 3226957

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-36281 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    25-37340 "O" RING, FLYWHEEL NUT
    "O" RING, FLYWHEEL NUT
  • 4
    28-20094 KEY, FLYWHELL DRIVE
    KEY, FLYWHELL DRIVE
  • 5
    237-3973A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 6
    50-33000A1 RATCHET ASSEMBLY, FLYWHEEL
    RATCHET ASSEMBLY, FLYWHEEL
  • 7
    10-35563 SCREW, RATCHET TO FLYWHEEL (9/16")
    SCREW, RATCHET TO FLYWHEEL (9/16")
  • 8
    10-32417 SCREW, RATCHET TO FLYWHEEL (5/8")
    SCREW, RATCHET TO FLYWHEEL (5/8")
  • 9
    13-26992 LOCKWASHER, RATCHET SCREW
    LOCKWASHER, RATCHET SCREW
  • 10
    336-3996A7 STATOR ASSEMBLY
    SERIAL 02827677-02893435
    STATOR ASSEMBLY
    SERIAL 02827677-02893435
  • 10
    336-3996A7 STATOR ASSEMBLY
    SERIAL 02991679-09999999
    STATOR ASSEMBLY
    SERIAL 02991679-09999999
  • 11
    10-69560 SCREW, STATOR TO END CAP (1 1/4")
    SCREW, STATOR TO END CAP (1 1/4")
  • 12
    336-4429 HOLDER, CONTACT HOUSING
    SERIAL 02827677-02893435
    HOLDER, CONTACT HOUSING
    SERIAL 02827677-02893435
  • 12
    336-4429 HOLDER, CONTACT HOUSING
    SERIAL 02991679-09999999
    HOLDER, CONTACT HOUSING
    SERIAL 02991679-09999999
  • 13
    336-3988A1 COVER ASSEMBLY, CONTACT HOUSING
    COVER ASSEMBLY, CONTACT HOUSING
  • 14
    10-56336 SCREW, COVER TO CONTACT HOUSING(1/2")
    SCREW, COVER TO CONTACT HOUSING(1/2")
  • 15
    336-3978A1 HOUSING ASSEMBLY, CONTACT
    HOUSING ASSEMBLY, CONTACT
  • 16
    336-4318A2 MAKER ASSEMBLY, CONTACT HOUSING
    MAKER ASSEMBLY, CONTACT HOUSING
  • 17
    10-56266 SCREW, MAKET TO CONTACT HOUSING(3/8")
    SCREW, MAKET TO CONTACT HOUSING(3/8")
  • 18
    56316A2 CABLE ASSEMBLY, CONTACT HOUSING (WHITE - 17")
    CABLE ASSEMBLY, CONTACT HOUSING (WHITE - 17")
  • 18
    56317A2 CABLE ASSEMBLY, CONTACT HOUSING (BROWN - 17 3/4")
    CABLE ASSEMBLY, CONTACT HOUSING (BROWN - 17 3/4")
  • 19
    38938 BOOT, CABLE
    BOOT, CABLE
  • 20
    336-3989 WICK, CAM WIPER - CONTACT HOUSING
    WICK, CAM WIPER - CONTACT HOUSING
  • 21
    336-3981 INSULATOR, CABLE TO CONTACT HOUSING
    INSULATOR, CABLE TO CONTACT HOUSING
  • 22
    11-56325 NUT, CABLE INSULATOR
    NUT, CABLE INSULATOR
  • 23
    12-56077 WAHSER, WEAR - CONTACT HOUSING TO CRANKCASE TOP
    WAHSER, WEAR - CONTACT HOUSING TO CRANKCASE TOP
  • 24
    13-59145 WASHER, WAVE - CONTACT HOUSING TO CRANKCASE TOP
    WASHER, WAVE - CONTACT HOUSING TO CRANKCASE TOP
  • 25
    54-26550 CLIP, CONTACT HOUSING AND STATOR LEADS
    CLIP, CONTACT HOUSING AND STATOR LEADS
  • 26
    10-62568 SCREW, CONTACT HOUSING AND STATOR LEADS CLIP ATTACHING
    SCREW, CONTACT HOUSING AND STATOR LEADS CLIP ATTACHING
  • 27
    8M0084613 "D" WASHER, CLIP SCREW
    "D" WASHER, CLIP SCREW
  • 28
    56312 LINK, THROTTLE - CONTACT HOUSING
    LINK, THROTTLE - CONTACT HOUSING
  • 29
    10-34696 SCREW, THROTTLE LINK TO CONTACT HOUSING (3/4")
    SCREW, THROTTLE LINK TO CONTACT HOUSING (3/4")
  • 30
    12-34392 WASHER, THROTTLE LINK SCREW
    WASHER, THROTTLE LINK SCREW
  • 31
    13-29720 WASHER, WAVE - THROTTLE LINK SCREW
    WASHER, WAVE - THROTTLE LINK SCREW
  • 32
    11-28656 NUT, THROTTLE LINK SCREW
    NUT, THROTTLE LINK SCREW
  • 33
    33973 SWIVEL, THROTTLE LINK
    SWIVEL, THROTTLE LINK
  • 34
    11-859124 NUT, THROTTLE LINK
    NUT, THROTTLE LINK
  • 35
    12-30164 WASHER, THROTTLE LONK
    WASHER, THROTTLE LONK
  • 36
    56757A1 JUMPER WIRE ASSEMBLY, STATOR TO THROTTLE LINK
    JUMPER WIRE ASSEMBLY, STATOR TO THROTTLE LINK
  • 37
    10-8M0113176 SCREW, JUMPTER WIRE ATTACHING (5/16")
    SCREW, JUMPTER WIRE ATTACHING (5/16")
  • 38
    336-4409A4 COIL ASSEMBLY, IGNITION
    SERIAL 02827677-02893435
    COIL ASSEMBLY, IGNITION
    SERIAL 02827677-02893435
  • 38
    336-4409A4 COIL ASSEMBLY, IGNITION
    SERIAL 02991679-09999999
    COIL ASSEMBLY, IGNITION
    SERIAL 02991679-09999999
  • 39
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 40
    11-45076 0NUT, IGNITION COIL TERMINAL
    0NUT, IGNITION COIL TERMINAL
  • 41
    56188 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 42
    10-56311 SCREW, COIL COVER TO REAR SUPPORT BRACKET (3 11/16")
    SCREW, COIL COVER TO REAR SUPPORT BRACKET (3 11/16")
  • 43
    11-8267086 NUT, COIL COVER SCREW
    NUT, COIL COVER SCREW
  • 44
    54676 RETAINER, HIGH TENSION LEAD
    RETAINER, HIGH TENSION LEAD
  • 45
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 46
    332-2854T01 NIPPLE, IGNITION COIL
    NIPPLE, IGNITION COIL
  • 47
    85-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG
    PROTECTOR ASSEMBLY, SPARK PLUG
  • 48
    33-97182Q SPARK PLUG (AC #40FFK)
    SPARK PLUG (AC #40FFK)
  • 49
    56318A2 CABLE ASSEMBLY, COIL TO COIL (5 1/4")
    CABLE ASSEMBLY, COIL TO COIL (5 1/4")
  • 50
    394-1134A1 GROUND WIRE ASSEMBLY, COIL COVER SCREW
    GROUND WIRE ASSEMBLY, COIL COVER SCREW
