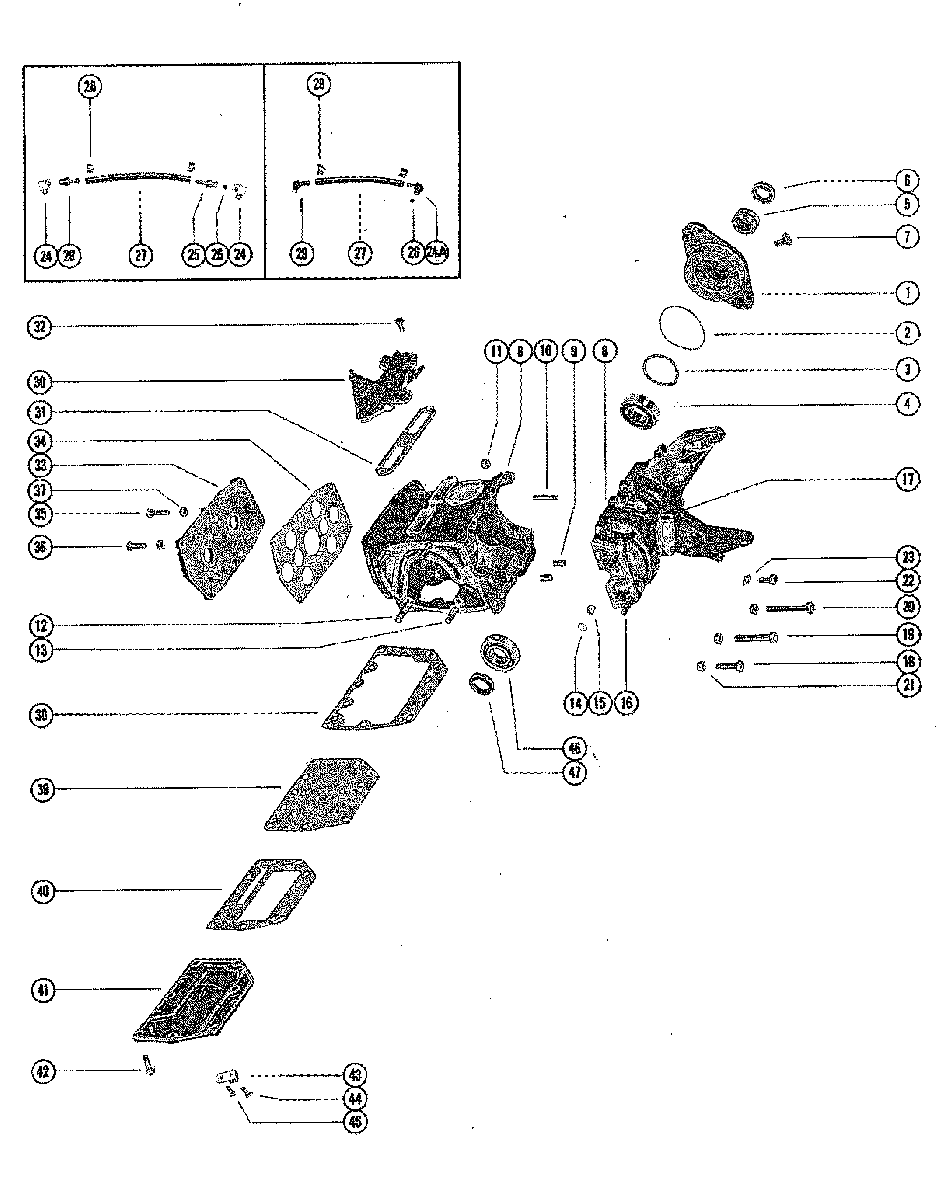

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 200 2827677 THRU 3226957

  • №
    Артикул
    Название
  • 1
    1142-3986A1 CRANKCASE TOP ASSEMBLY
    CRANKCASE TOP ASSEMBLY
  • 2
    25-20081 "O" RING, CRANKCASE TOP
    "O" RING, CRANKCASE TOP
  • 3
    15-56191A1 SHIM, BALL BEARING TO CRANKCASE TOP (.002-3-5-10)
    SHIM, BALL BEARING TO CRANKCASE TOP (.002-3-5-10)
  • 4
    30-63326T BEARING, BALL - CRANKCASE TOP (UPPER)
    BEARING, BALL - CRANKCASE TOP (UPPER)
  • 5
    31-20594 BEARING, ROLLER - CRANKCASE TOP (UPPER)
    BEARING, ROLLER - CRANKCASE TOP (UPPER)
  • 6
    26-66300 OIL SEAL, CRANKCASE TOP (UPPER)
    OIL SEAL, CRANKCASE TOP (UPPER)
  • 7
    10-57098 SCREW, CRANKCASE TOP TO CYLINDER BLOCK AND CRANKCASE (3/4")
    SCREW, CRANKCASE TOP TO CYLINDER BLOCK AND CRANKCASE (3/4")
  • 8
    848-6434A1 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 9
    17-23784 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
  • 10
    16-65866 STUD, CRANKCASE TO CYLINDER BLOCK )1 5/16")
    STUD, CRANKCASE TO CYLINDER BLOCK )1 5/16")
  • 11
    11-29250 NUT, CRANKCASE STUD
    NUT, CRANKCASE STUD
  • 12
    16-65868 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
  • 13
    16-68165 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
  • 14
    19-20011 WELCH PLUG, CRANKCASE AND CYLINDER BLOCK
    WELCH PLUG, CRANKCASE AND CYLINDER BLOCK
  • 15
    21-27146A1 CHECK VALVE ASSEMBLY, CRANKCASE
    CHECK VALVE ASSEMBLY, CRANKCASE
  • 16
    16-68165 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
  • 17
    16-65865 STUD, CARBURETOR TO CRANKCASE (1 3/32")
    STUD, CARBURETOR TO CRANKCASE (1 3/32")
  • 18
    10-26066 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
  • 19
    10-26065 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 19
    10-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
  • 20
    10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
  • 21
    11-29250 NUT, CRANKCASE SCREW
    NUT, CRANKCASE SCREW
  • 22
    84-93462A20 SCREW, LOCK - CENTER MAIN BEARING (5/8")
    SCREW, LOCK - CENTER MAIN BEARING (5/8")
  • 23
    14-20091 TAB WASHER, CENTER MAIN BEARING LOCK SCREW
    TAB WASHER, CENTER MAIN BEARING LOCK SCREW
  • 24
    22-59351 ELBOW, BLEED HOSE TO CYLINDER BLOCK
    SERIAL 02827677-02832721
    ELBOW, BLEED HOSE TO CYLINDER BLOCK
    SERIAL 02827677-02832721
  • 25
    22-62365A1 CHECK VALVE AND HOSE CONNECTOR ASSEMBLY, BLEED HOSE
    SERIAL 02827677-02832721
    CHECK VALVE AND HOSE CONNECTOR ASSEMBLY, BLEED HOSE
    SERIAL 02827677-02832721
  • 26
    21-28481A1 CHECK VALVE ASSEMBLY
    SERIAL 02827677-02832721
    CHECK VALVE ASSEMBLY
    SERIAL 02827677-02832721
  • 27
    32-9912688 HOSE, BLEED - CYLINDER BLOCK (5")
    SERIAL 02827677-02832721
    HOSE, BLEED - CYLINDER BLOCK (5")
    SERIAL 02827677-02832721
  • 28
    54-20386 CLAMP, BLEED HOSE ATTACHING
    SERIAL 02827677-02832721
    CLAMP, BLEED HOSE ATTACHING
    SERIAL 02827677-02832721
  • 29
    22-57785 FITTING, BLEED HOSE ELBOW
    SERIAL 02827677-02832721
    FITTING, BLEED HOSE ELBOW
    SERIAL 02827677-02832721
  • 24A
    21-55621A1 CHECK VALVE ASSEMBLY, BLEED HOSE
    SERIAL 02832722-09999999
    CHECK VALVE ASSEMBLY, BLEED HOSE
    SERIAL 02832722-09999999
  • 26
    21-28481A1 CHECK VALVE ASSEMBLY
    SERIAL 02832722-09999999
    CHECK VALVE ASSEMBLY
    SERIAL 02832722-09999999
  • 27
    32-9912688 HOSE, BLEED - CYLINDER BLOCK
    SERIAL 02832722-09999999
    HOSE, BLEED - CYLINDER BLOCK
    SERIAL 02832722-09999999
  • 28
    54-20387 CLAMP, BLEED HOSE ATTACHING
    SERIAL 02832722-09999999
    CLAMP, BLEED HOSE ATTACHING
    SERIAL 02832722-09999999
  • 29
    22-58199 FITTING, BLEED HOSE
    SERIAL 02832722-09999999
    FITTING, BLEED HOSE
    SERIAL 02832722-09999999
  • 30
    77362 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 31
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 32
    10-28636 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (3/4")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (3/4")
  • 32
    10-24646 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
  • 33
    1022-3567 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 34
    27-78410 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 35
    10-24644 SCREW, COVER TO CYLINDER BLOCK (1 3/8")
    SCREW, COVER TO CYLINDER BLOCK (1 3/8")
  • 36
    10-21091 SCREW, COVER TO CYLINDER BLOCK (1 1/8")
    SCREW, COVER TO CYLINDER BLOCK (1 1/8")
  • 37
    11-20184 NUT, CYLINDER BLOCK COVER SCREW
    NUT, CYLINDER BLOCK COVER SCREW
  • 38
    27-78411 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 39
    39308 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 40
    27-78409 GASKET, BAFFLE PLATE TO MANIFOLD COVER
    GASKET, BAFFLE PLATE TO MANIFOLD COVER
  • 41
    88797 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 42
    10-28782 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
  • 43
    86-45915 TERMINAL BLOCK, EXHAUST MANIFOLD COVER SERIAL # THRU
    SERIAL 02827677-02893435
    TERMINAL BLOCK, EXHAUST MANIFOLD COVER SERIAL # THRU
    SERIAL 02827677-02893435
  • 44
    10-69079 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER (7/16")
    SERIAL 02827677-02893435
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER (7/16")
    SERIAL 02827677-02893435
  • 45
    10-38792 SCREW, WIRE TO TERMINAL GLOCK (5/16")
    SCREW, WIRE TO TERMINAL GLOCK (5/16")
  • 46
    30-63326T BEARING, BALL - CRANKCASE(LOWER)
    BEARING, BALL - CRANKCASE(LOWER)
  • 47
    26-66302 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
