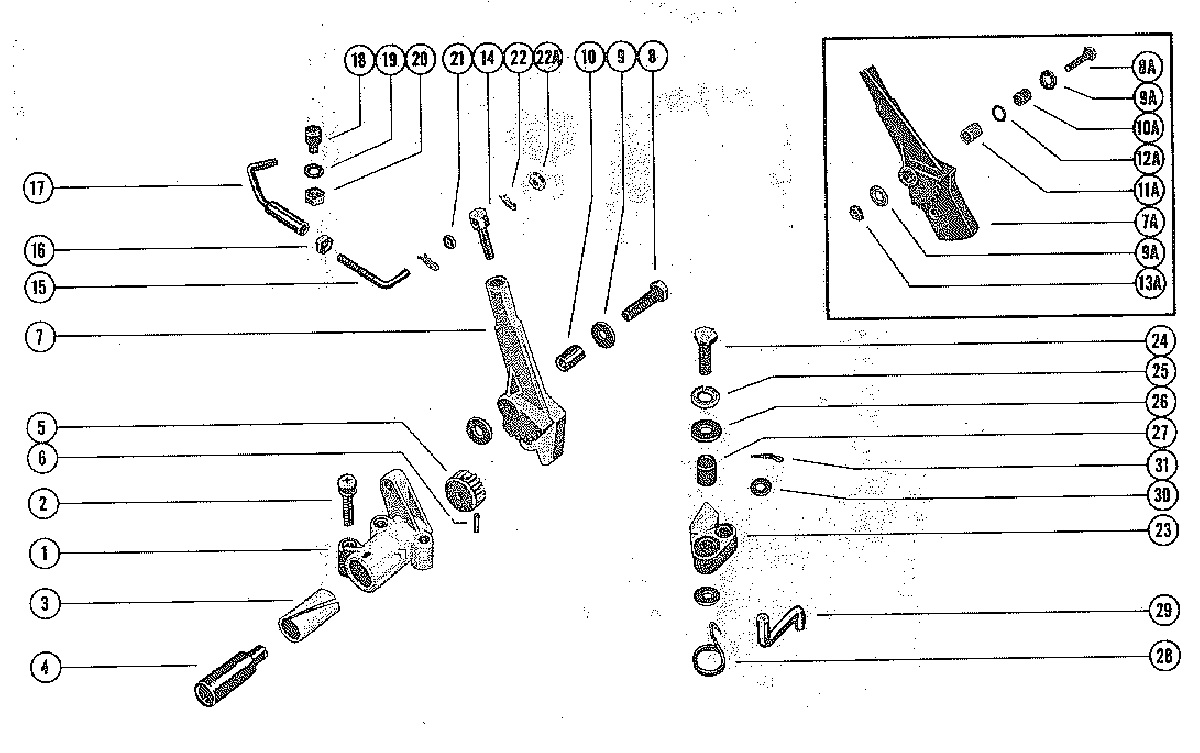

THROTTLE CONTROL LINKAGE для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
133542 HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
210-33464 SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWLSCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL
-
323-33532 BUSHING, NYLON - THROTTLE CONTROL HOUSINGBUSHING, NYLON - THROTTLE CONTROL HOUSING
-
433533 SOCKET, THROTTLE CONTROL HOUSINGSOCKET, THROTTLE CONTROL HOUSING
-
543-33534 GEAR, HORIZONTAL - THROTTLE CONTROL SOCKETGEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
-
617-25905 PIN, ROLL - HORIZONTAL GEAR RETAININGPIN, ROLL - HORIZONTAL GEAR RETAINING
-
738730A1 LEVER, THROTTLE CONTROL
SERIAL 00000000-01858008LEVER, THROTTLE CONTROL
SERIAL 00000000-01858008 -
7A38730 LEVER, THROTTLE CONTROL
SERIAL 01858009-09999999LEVER, THROTTLE CONTROL
SERIAL 01858009-09999999 -
810-24878 SCREW, THROTTLE CONTROL LEVER TO HOUSING
SERIAL 00000000-01858008SCREW, THROTTLE CONTROL LEVER TO HOUSING
SERIAL 00000000-01858008 -
912-30971 WASHER, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 00000000-01858008WASHER, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 00000000-01858008 -
1023-30972 BUSHING, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 00000000-01858008BUSHING, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 00000000-01858008 -
8A10-69067 SCREW, THROTTLE CONTROL LEVER TO HOUSING
SERIAL 01858009-09999999SCREW, THROTTLE CONTROL LEVER TO HOUSING
SERIAL 01858009-09999999 -
9A12-30971 WASHER, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999WASHER, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999 -
10A23-30972 BUSHING, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999BUSHING, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999 -
11A23-38869 BUSHING, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999BUSHING, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999 -
12A13-36206 WASHER, WAVE - THROTTLE CONTROL LEVER SCREW
SERIAL 01858009-09999999WASHER, WAVE - THROTTLE CONTROL LEVER SCREW
SERIAL 01858009-09999999 -
13A11-33122 NUT, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999NUT, THROTTLE CONTROL LEVER TO HOUSING SCREW
SERIAL 01858009-09999999 -
1410-34697 BOLT, SWIVEL - THROTTLE CONTROL CONTROL LEVER
SERIAL 00000000-01592567BOLT, SWIVEL - THROTTLE CONTROL CONTROL LEVER
SERIAL 00000000-01592567 -
1533576 LINK, MAGNETO CONTROL ROD
SERIAL 00000000-01592567LINK, MAGNETO CONTROL ROD
SERIAL 00000000-01592567 -
1611-68219 NUT, JAM - MAGNETO CONTROL ROD LINK
SERIAL 00000000-01592567NUT, JAM - MAGNETO CONTROL ROD LINK
SERIAL 00000000-01592567 -
1728367 ROD, CONTROL - MAGNETO
SERIAL 00000000-01592567ROD, CONTROL - MAGNETO
SERIAL 00000000-01592567 -
1828232 BOLT, TOGGLE - MAGNETO CONTROL ROD
SERIAL 00000000-01592567BOLT, TOGGLE - MAGNETO CONTROL ROD
SERIAL 00000000-01592567 -
1913-29402 WASHER, WAVE - TOGGLE BOLT
SERIAL 00000000-01592567WASHER, WAVE - TOGGLE BOLT
SERIAL 00000000-01592567 -
2011-826709109 NUT, TOGGLE BOLT TO THROTTLE CONTROL CAM
SERIAL 00000000-01592567NUT, TOGGLE BOLT TO THROTTLE CONTROL CAM
SERIAL 00000000-01592567 -
2112-26014 WASHER, MAGNETO CONTROL ROD
SERIAL 00000000-01592567WASHER, MAGNETO CONTROL ROD
SERIAL 00000000-01592567 -
2218-26811 COTTER PIN, CONTROL ROD TO SWIVEL BOLT
SERIAL 00000000-01592567COTTER PIN, CONTROL ROD TO SWIVEL BOLT
SERIAL 00000000-01592567 -
1410-34697 BOLT, SWIVEL - THROTTLE CONTROL LEVER
SERIAL 01592568-09999999BOLT, SWIVEL - THROTTLE CONTROL LEVER
SERIAL 01592568-09999999 -
1534699 LINK, MAGNETO CONTROL ROD (USE FROM SERIAL # 1592568 THRU 18)
SERIAL 01592568-01858008LINK, MAGNETO CONTROL ROD (USE FROM SERIAL # 1592568 THRU 18)
SERIAL 01592568-01858008 -
1538875 LINK, MAGNETO CONTROL ROD (STARTED WITH SERIAL # 1858009)
SERIAL 01858009-09999999LINK, MAGNETO CONTROL ROD (STARTED WITH SERIAL # 1858009)
SERIAL 01858009-09999999 -
22A11-20110 NUT, CONTROL ROD LINK TO SWIVEL BOLT (STARTED WITH SERIAL #)
SERIAL 01592568-09999999NUT, CONTROL ROD LINK TO SWIVEL BOLT (STARTED WITH SERIAL #)
SERIAL 01592568-09999999 -
2333579 CAM, SHIFT - BOTTOM COWL
SERIAL 00000000-01858008CAM, SHIFT - BOTTOM COWL
SERIAL 00000000-01858008 -
2410-24878 SCREW, SHIFT CAM TO BOTTOM COWL
SERIAL 00000000-01858008SCREW, SHIFT CAM TO BOTTOM COWL
SERIAL 00000000-01858008 -
2513-26992 LOCKWASHER, SHIFT CAM TO BOTTOM COWL SCREW
SERIAL 00000000-01858008LOCKWASHER, SHIFT CAM TO BOTTOM COWL SCREW
SERIAL 00000000-01858008 -
2612-30971 WASHER, SHIFT CAM TO BOTTOM COWL SCREW
SERIAL 00000000-01858008WASHER, SHIFT CAM TO BOTTOM COWL SCREW
SERIAL 00000000-01858008 -
2723-30972 BUSHING, SHIFT CAM TO BOTTOM COWL SCREW
SERIAL 00000000-01858008BUSHING, SHIFT CAM TO BOTTOM COWL SCREW
SERIAL 00000000-01858008 -
2824-33930 SPRING, TORSION - SHIFT CAM
SERIAL 00000000-01858008SPRING, TORSION - SHIFT CAM
SERIAL 00000000-01858008 -
2933496A3 LINK ROD, SHIFT CAM TO SHIFT CONTROL SHAFT
SERIAL 00000000-01708178LINK ROD, SHIFT CAM TO SHIFT CONTROL SHAFT
SERIAL 00000000-01708178 -
2936422 LINK ROD, SHIFT CAM TO SHIFT CONTROL SHAFT
SERIAL 00000000-01708179LINK ROD, SHIFT CAM TO SHIFT CONTROL SHAFT
SERIAL 00000000-01708179 -
3012-20028 WASHER, SHIFT CAM LINK ROD
SERIAL 00000000-01858008WASHER, SHIFT CAM LINK ROD
SERIAL 00000000-01858008 -
3118-210711 COTTER PIN, LINK ROD TO SHIFT CAM
SERIAL 00000000-01858008COTTER PIN, LINK ROD TO SHIFT CAM
SERIAL 00000000-01858008
