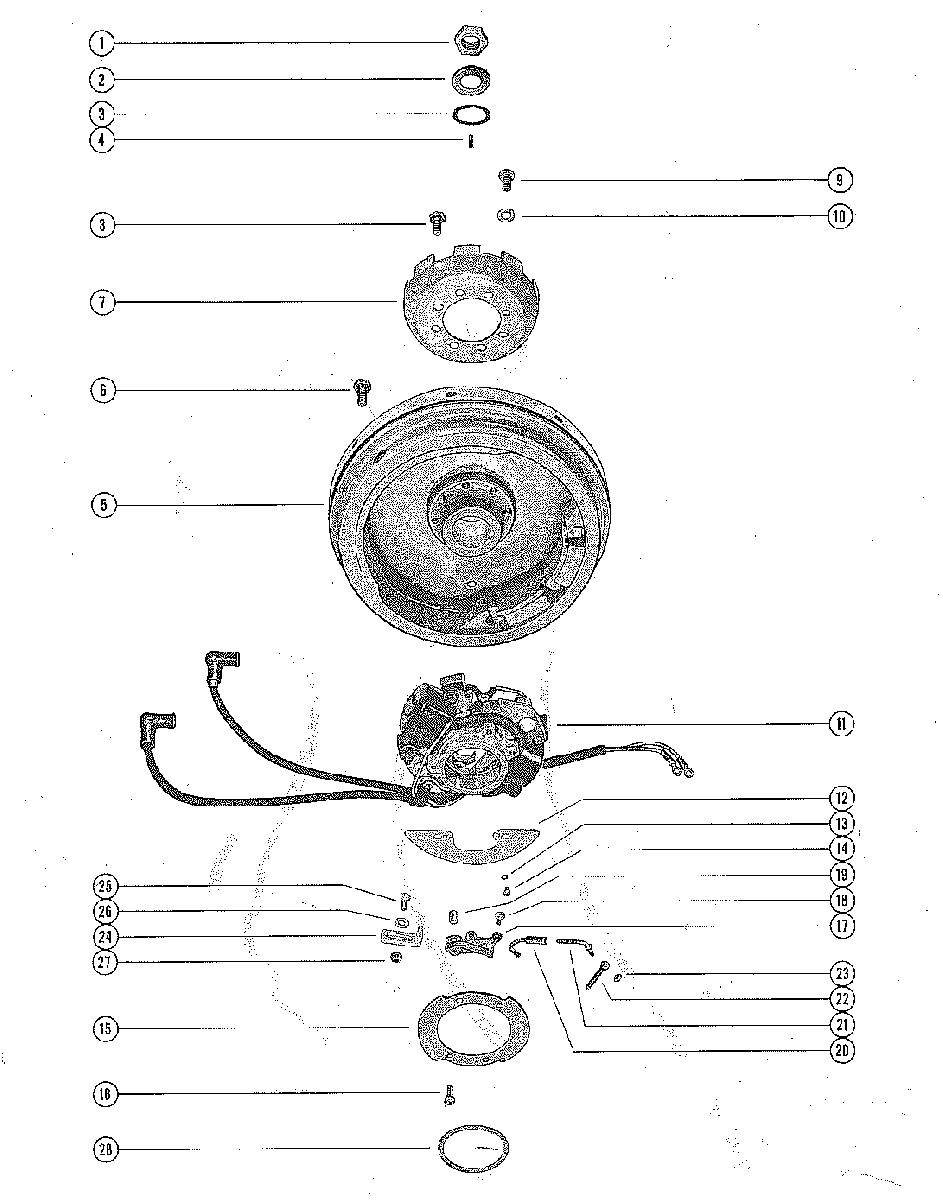

FLYWHEEL ASSEMBLY AND THROTTLE CONTROL LINKAGE для Mercury - 200 1558310 THRU 1866495

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-36281 WASHER, FLYWHEEL NUT
    SERIAL 01708179-09999999
    WASHER, FLYWHEEL NUT
    SERIAL 01708179-09999999
  • 3
    25-37340 "O" RING, FLYWHEEL HUB
    SERIAL 01708179-09999999
    "O" RING, FLYWHEEL HUB
    SERIAL 01708179-09999999
  • 4
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    221-2297A1 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 6
    10-35563 SCREW, FLEXIBLE PLATE TO FLYWHEEL
    SCREW, FLEXIBLE PLATE TO FLYWHEEL
  • 7
    50-33000A1 RATCHET ASSEMBLY, FLYWHEEL
    RATCHET ASSEMBLY, FLYWHEEL
  • 8
    10-32417 SCREW, RATCHET TO FLYWHEEL
    SCREW, RATCHET TO FLYWHEEL
  • 9
    10-34290 SCREW, RATCHET TO FLYWHEEL
    SCREW, RATCHET TO FLYWHEEL
  • 10
    13-26992 LOCKWASHER, RATCHET TO FLYWHEEL SCREW
    LOCKWASHER, RATCHET TO FLYWHEEL SCREW
  • 11
    398-3297A1 STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
    STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
  • 12
    35599A1 SHIELD ASSEMBLY, LEAD WIRE - STATOR PLATE
    SHIELD ASSEMBLY, LEAD WIRE - STATOR PLATE
  • 13
    13-26996 LOCKWASHER, SHIELD FASTENING SCREW
    LOCKWASHER, SHIELD FASTENING SCREW
  • 14
    10-45742 SCREW, LEAD WIRE SHIELD TO STATOR PLATE
    SCREW, LEAD WIRE SHIELD TO STATOR PLATE
  • 15
    34601 RING, HOLD DOWN - STATOR PLATE
    RING, HOLD DOWN - STATOR PLATE
  • 16
    10-35400 SCREW, HOLD DOWN RING TO STATOR PLATE
    SCREW, HOLD DOWN RING TO STATOR PLATE
  • 17
    34611 CAM, THROTTLE CONTROL - STATOR PLATE
    CAM, THROTTLE CONTROL - STATOR PLATE
  • 18
    10-29722 SCREW, THROTTLE CONTROL CAM TO STATOR PLATE
    SCREW, THROTTLE CONTROL CAM TO STATOR PLATE
  • 19
    46097 SWIVEL, CONTROL ROD TO THROTTLE CAM
    SWIVEL, CONTROL ROD TO THROTTLE CAM
  • 20
    34599 ROD, MAGNETO CONTROL
    ROD, MAGNETO CONTROL
  • 21
    34699 LINK, MAGNETO CONTROL ROD
    SERIAL 00000000-01858008
    LINK, MAGNETO CONTROL ROD
    SERIAL 00000000-01858008
  • 21
    38875 LINK, MAGNETO CONTROL ROD
    SERIAL 01858009-09999999
    LINK, MAGNETO CONTROL ROD
    SERIAL 01858009-09999999
  • 22
    10-34697 BOLT, SWIVEL - THROTTLE CONTROL LEVER
    BOLT, SWIVEL - THROTTLE CONTROL LEVER
  • 23
    11-20110 NUT, CONTROL ROD LINK TO SWIVEL BOLT
    NUT, CONTROL ROD LINK TO SWIVEL BOLT
  • 24
    29013 IDLE STOP, ADJUSTABLE
    IDLE STOP, ADJUSTABLE
  • 25
    10-32417 SCREW, IDLE STOP TO TOP COWL BRACKET
    SCREW, IDLE STOP TO TOP COWL BRACKET
  • 26
    12-20028 WASHER, IDLE STOP FASTENING SCREW
    WASHER, IDLE STOP FASTENING SCREW
  • 27
    11-24652 NUT, IDLE STOP SCREW
    NUT, IDLE STOP SCREW
  • 28
    15-33910015 SHIM, STATOR PLATE TO CRANKCASE TOP
    SHIM, STATOR PLATE TO CRANKCASE TOP
