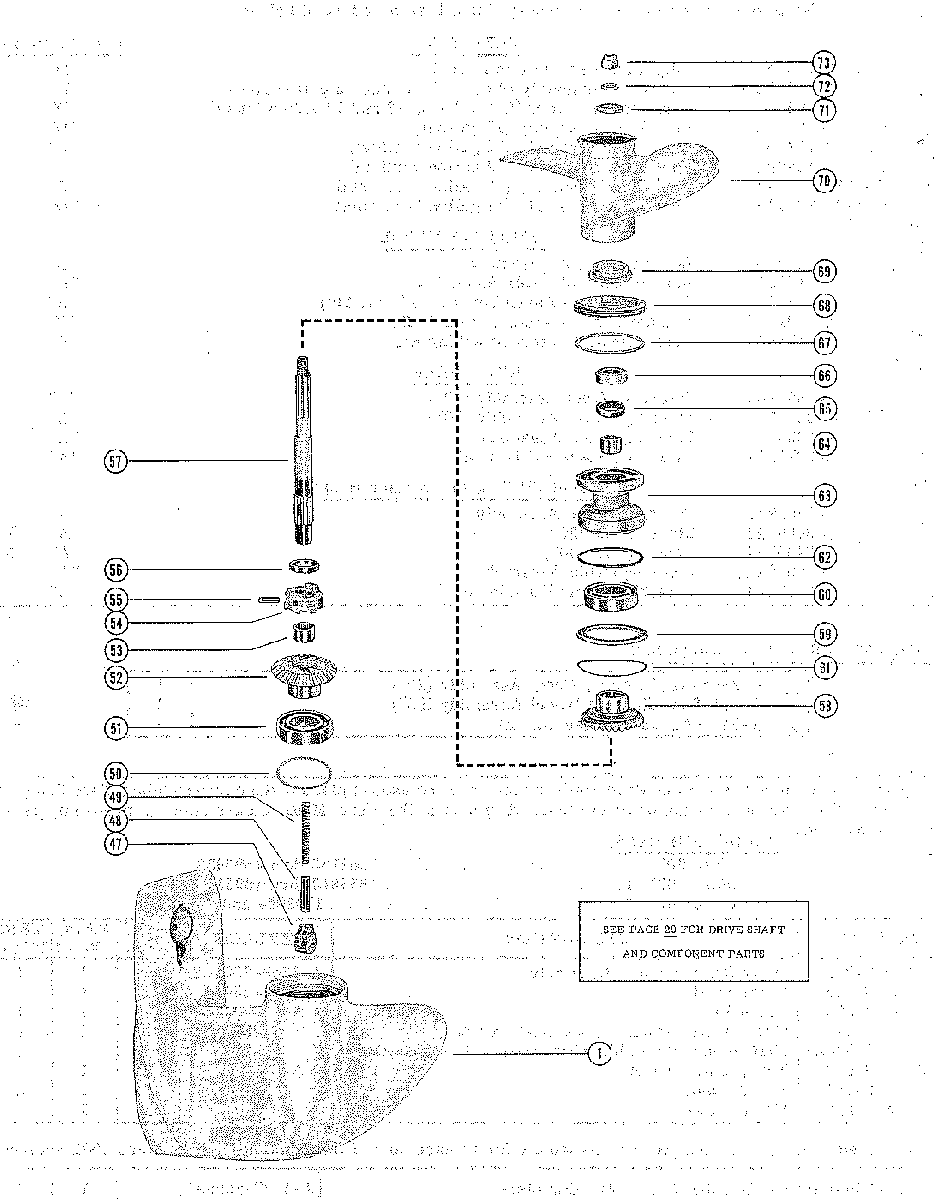

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 200 1558310 THRU 1866495
-
№АртикулНазвание
-
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SEE NOTE BELOW)GEAR HOUSING ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
11627-2090A1 GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)
-
4733436 CAM, SHIFTCAM, SHIFT
-
4833438 FOLLOWER, CAMFOLLOWER, CAM
-
4924-88435 SPRINGSPRING
-
5015-20788A1 SHIM, BALL BRG. TO GEAR HSGSHIM, BALL BRG. TO GEAR HSG
-
--43-45227A3 FORWARD GEAR ASSY, COMP.FORWARD GEAR ASSY, COMP.
-
5130-25398 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5243-45227A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5331-28157 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5443-45227A3 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5517-33433 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5653-33430 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
5744-75366A2 SHAFT, PROPELLERSHAFT, PROPELLER
-
5744-75366A2 @PROPELLER SHAFT ASSEMBLY
SERIAL 01592875-09999999@PROPELLER SHAFT ASSEMBLY
SERIAL 01592875-09999999 -
5843-45227A3 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
5912-33434 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
6030-25398 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6115-33431A1 SHIM, THRUST WASHER TO GEAR HOUSINGSHIM, THRUST WASHER TO GEAR HOUSING
-
6225-33465 "0" RING, BEARING CARRIER"0" RING, BEARING CARRIER
-
6333402T4 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6431-28157 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6526-27163 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6626-26805 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6712-33432 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6833410 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6923-85964A1 COLLAR, GUIDE - PROPELLER SHAFTCOLLAR, GUIDE - PROPELLER SHAFT
-
6923-85964A1 COLLAR, GUIDE - PROPELLER SHAFT
SERIAL 01592875-09999999COLLAR, GUIDE - PROPELLER SHAFT
SERIAL 01592875-09999999 -
7048-33480A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)
-
7048-34402A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)
-
7048-86962A4 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)
-
7048-37316A1 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)
-
7111-64075A1 SPACER, SPLINE - PROPELLER SHAFTSPACER, SPLINE - PROPELLER SHAFT
-
7212-27025 WASHER, PROPELLER NUTWASHER, PROPELLER NUT
-
7311-34933 NUT, PROPELLER RETAININGNUT, PROPELLER RETAINING
