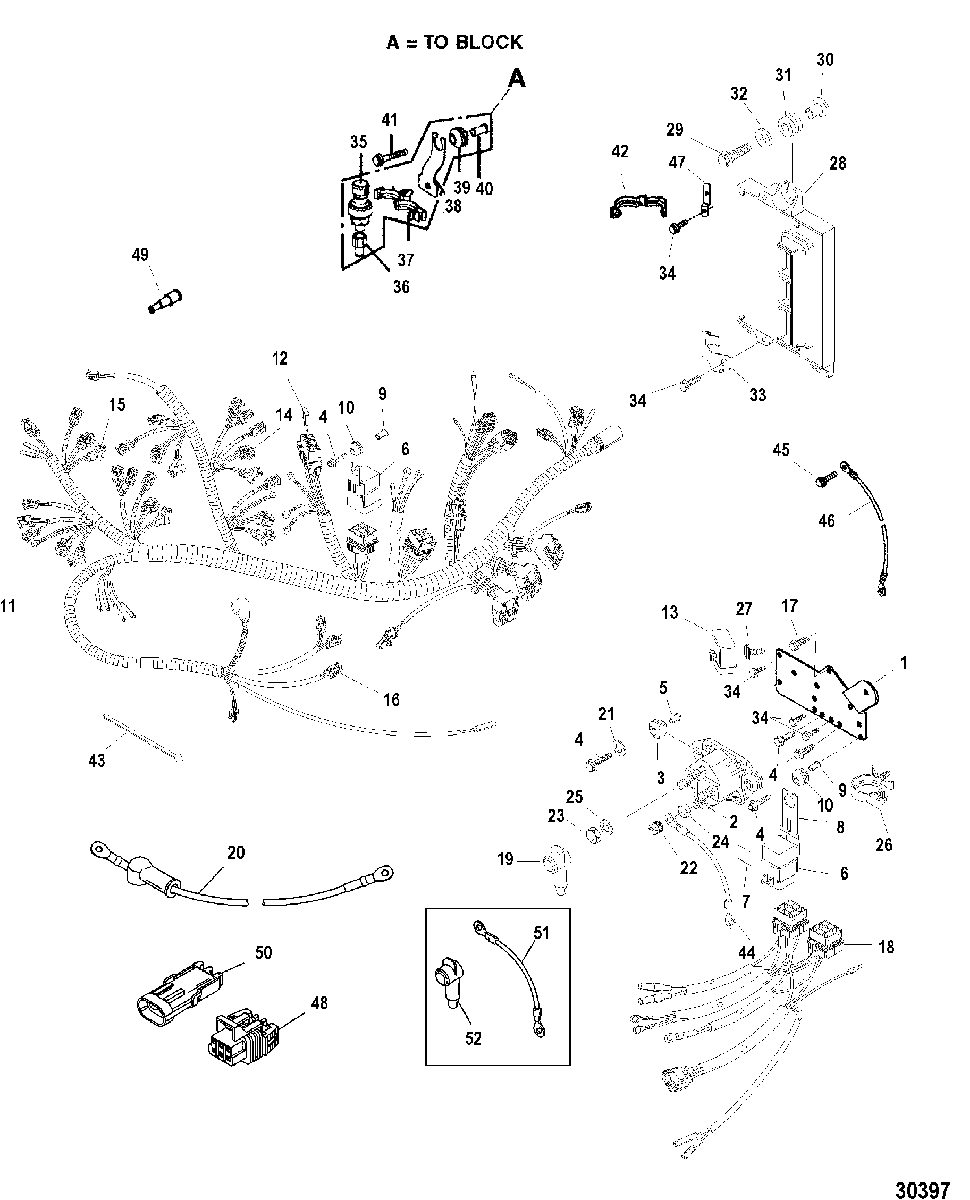

SOLENOID PLATE для Mercury - 200 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    858366T2 PLATE
    PLATE
  • 2
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 3
    25-822179 GROMMET
    GROMMET
  • 4
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 5
    23-818968 BUSHING
    BUSHING
  • 6
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 7
    NSS NOT SOLD SEPARATE, DECAL
    NOT SOLD SEPARATE, DECAL
  • 8
    828102 BRACKET
    BRACKET
  • 9
    23-818968 BUSHING
    BUSHING
  • 10
    25-818967 GROMMET
    GROMMET
  • 11
    84-878082T4 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 12
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 12
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 13
    858754 COVER, Fuse
    COVER, Fuse
  • 14
    879346A49 HARNESS ASSEMBLY (DIRECT INJECTOR)
    HARNESS ASSEMBLY (DIRECT INJECTOR)
  • 15
    879346A50 HARNESS ASSEMBLY (FUEL INJECTOR)
    HARNESS ASSEMBLY (FUEL INJECTOR)
  • 16
    879346A50 HARNESS ASSEMBLY (TPS)
    HARNESS ASSEMBLY (TPS)
  • -
    879346A52 HARNESS ASSEMBLY, Encoder, Crank Position Sensor
    HARNESS ASSEMBLY, Encoder, Crank Position Sensor
  • -
    84-881262A2 HARNESS ASSEMBLY, Alternator, Alternator
    HARNESS ASSEMBLY, Alternator, Alternator
  • 17
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 18
    84-819514T16 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 19
    85-8500671 BOOT, Insulator - Red
    BOOT, Insulator - Red
  • 20
    84-882829A1 CABLE ASSEMBLY, Starter
    SN# 0T409000 & Up
    CABLE ASSEMBLY, Starter
    SN# 0T409000 & Up
  • 21
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 22
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 23
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 24
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 25
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 26
    54-858755 CLIP, (1.00)
    CLIP, (1.00)
  • 27
    54-828991T CLIP
    CLIP
  • 28
    8M0086582 ECM, Engine Control Module
    (200 FRESHWATER)
    ECM, Engine Control Module
    (200 FRESHWATER)
  • 28
    8M0086583 ECM, Engine Control Module
    (225 FRESHWATER)
    ECM, Engine Control Module
    (225 FRESHWATER)
  • 28
    8M0086582 ECM, Engine Control Module
    (200 SALTWATER)
    ECM, Engine Control Module
    (200 SALTWATER)
  • 28
    8M0086583 ECM, Engine Control Module
    (225 SALTWATER)
    ECM, Engine Control Module
    (225 SALTWATER)
  • 29
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 30
    23-856954 BUSHING
    BUSHING
  • 31
    25-834985 GROMMET
    GROMMET
  • 32
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 33
    8590881 CLIP
    CLIP
  • 34
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 35
    881879T11 SENSOR, (0 - 100 PSI)
    SENSOR, (0 - 100 PSI)
  • 36
    22-892403 FITTING
    FITTING
  • 37
    54-883066 CLIP, (.865)
    (USE W/ SENSOR STAMPED 881879-6)
    CLIP, (.865)
    (USE W/ SENSOR STAMPED 881879-6)
  • 37
    54-858954 CLIP, (.625)
    (USE W/ SENSOR STAMPED 859210)
    CLIP, (.625)
    (USE W/ SENSOR STAMPED 859210)
  • 38
    859313 BRACKET
    BRACKET
  • 39
    25-818967 GROMMET
    GROMMET
  • 40
    23-818968 BUSHING
    BUSHING
  • 41
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 42
    54-859376 CLIP
    CLIP
  • 43
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 44
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 45
    10-81893420 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 46
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 47
    858953 BRACKET
    BRACKET
  • 48
    881065A1 CONNECTOR, 6 Pin Plug
    (TRACKER)
    CONNECTOR, 6 Pin Plug
    (TRACKER)
  • 49
    13541 PLUG, Male
    PLUG, Male
  • 50
    832948A1 CONNECTOR ASSEMBLY
    (TRACKER)
    CONNECTOR ASSEMBLY
    (TRACKER)
  • 51
    84-880771T1 CABLE ASSEMBLY, (24.00 Inches) Red
    (Use where Applicable)
    CABLE ASSEMBLY, (24.00 Inches) Red
    (Use where Applicable)
  • 52
    85-8500673 BOOT, Insulator - Yellow
    (Use where Applicable)
    BOOT, Insulator - Yellow
    (Use where Applicable)
  • -
    13540 CAP, Female
    (TRACKER)
    CAP, Female
    (TRACKER)
