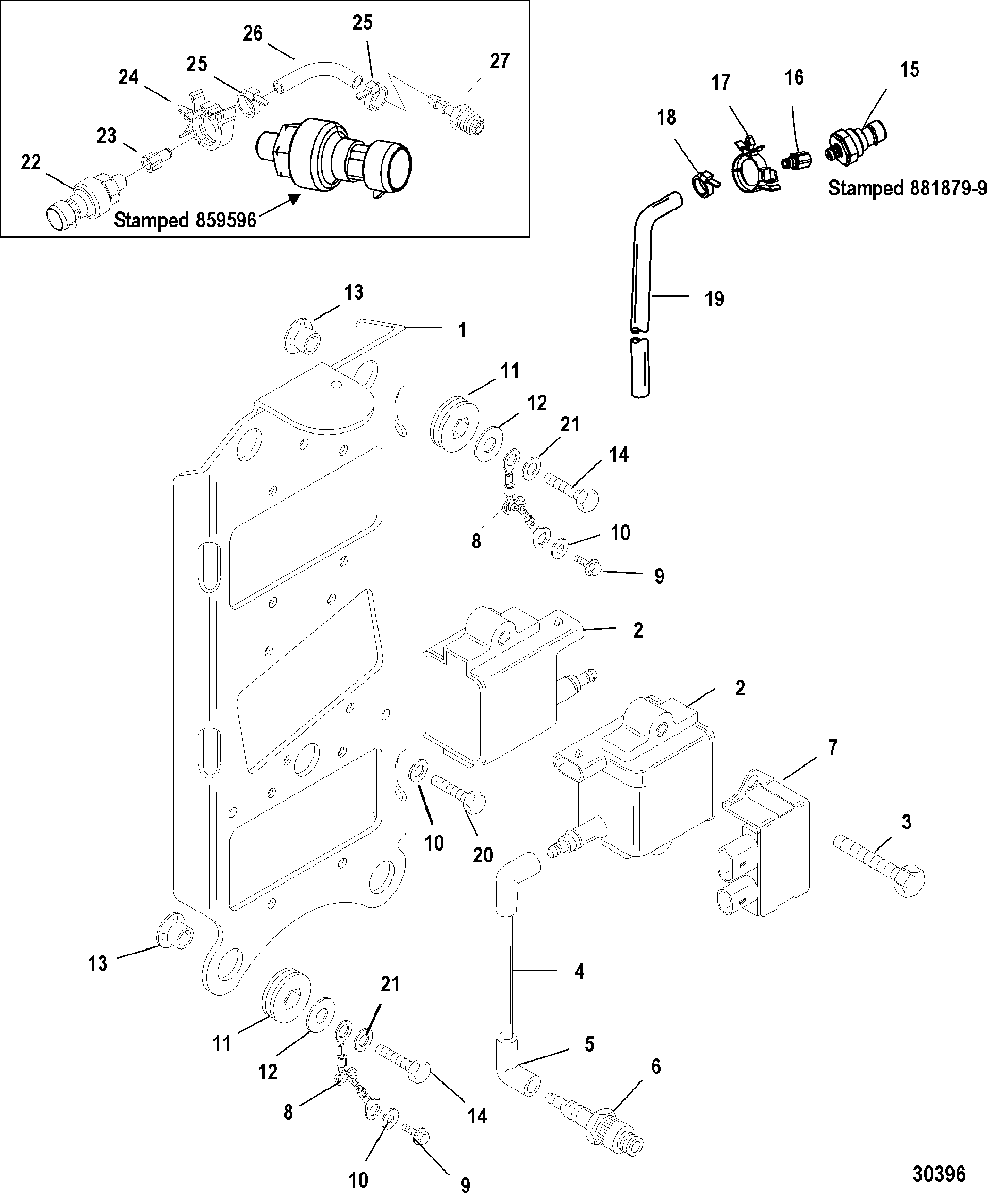

COIL PLATE для Mercury - 200 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    850295T4 PLATE
    PLATE
  • 2
    339-856991A1 COIL KIT
    COIL KIT
  • 3
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 4
    84-881908T CABLE SET, Hi Tension
    CABLE SET, Hi Tension
  • 5
    NSS NOT SOLD SEPARATE, BOOT
    NOT SOLD SEPARATE, BOOT
  • 6
    33-889597Q SPARK PLUG
    SPARK PLUG
  • 7
    859595T DRIVER, Dual Coil
    DRIVER, Dual Coil
  • 8
    84-858414A1 CABLE ASSEMBLY, Braided
    CABLE ASSEMBLY, Braided
  • 9
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 10
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 11
    25-833155 GROMMET
    GROMMET
  • 12
    12-4002318 WASHER
    WASHER
  • 13
    23-8502341 BUSHING
    BUSHING
  • 14
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 15
    881879A7 SENSOR KIT, (0-50 PSI)
    SN# 0T409000 & Up
    SENSOR KIT, (0-50 PSI)
    SN# 0T409000 & Up
  • 16
    22-892403 FITTING
    SN# 0T409000 & Up
    FITTING
    SN# 0T409000 & Up
  • 17
    54-883066 CLIP, (.865)
    SN# 0T409000 & Up
    CLIP, (.865)
    SN# 0T409000 & Up
  • 18
    54-816311T TIE STRAP, (8.00 Inches)
    SN# 0T409000 & Up
    TIE STRAP, (8.00 Inches)
    SN# 0T409000 & Up
  • 19
    32-85978571 TUBING, (44.00 Inches Bulk) (cut to 18 IN.)
    SN# 0T409000 & Up
    TUBING, (44.00 Inches Bulk) (cut to 18 IN.)
    SN# 0T409000 & Up
  • 20
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 21
    12-36001 WASHER
    WASHER
  • 22
    881879A7 SENSOR, (0-50 PSI)
    SN# 0T408999 & Below
    SENSOR, (0-50 PSI)
    SN# 0T408999 & Below
  • 23
    22-856594 FITTING, Barbed
    SN# 0T408999 & Below
    FITTING, Barbed
    SN# 0T408999 & Below
  • 24
    54-858954 CLIP, (.625)
    SN# 0T408999 & Below
    CLIP, (.625)
    SN# 0T408999 & Below
  • 25
    54-816311T TIE STRAP, (8.00 Inches)
    SN# 0T408999 & Below
    TIE STRAP, (8.00 Inches)
    SN# 0T408999 & Below
  • 26
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to15 IN.)
    SN# 0T408999 & Below
    HOSE, (.187) (26.00 Inches Bulk) (Cut to15 IN.)
    SN# 0T408999 & Below
  • 27
    22-859092 FITTING
    SN# 0T408999 & Below
    FITTING
    SN# 0T408999 & Below
