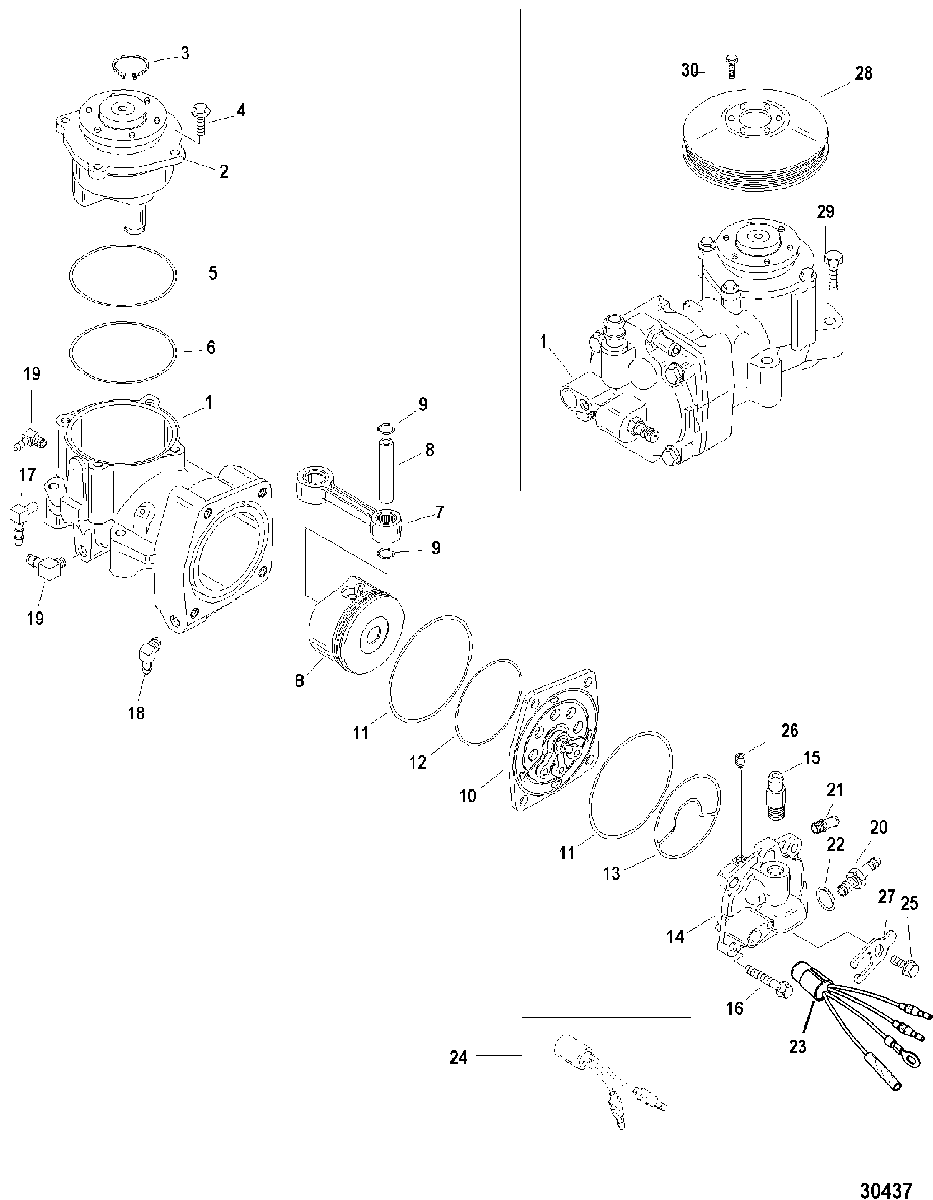

AIR COMPRESSOR COMPONENTS для Mercury - 200 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    8M0133589 COMPRESSOR ASSEMBLY, Air
    COMPRESSOR ASSEMBLY, Air
  • 2
    1100-8M0050792 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 3
    NSS NOT SOLD SEPARATE, SNAP RING
    NOT SOLD SEPARATE, SNAP RING
  • 4
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 5
    25-89224 O-RING
    O-RING
  • 6
    25-832804 O-RING, (2.739 x .070)
    O-RING, (2.739 x .070)
  • 7
    653-833146T06 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 8
    828222A4 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 9
    53-8348101 RING, Lock
    RING, Lock
  • 10
    835088A10 REED PLATE ASSEMBLY
    REED PLATE ASSEMBLY
  • 11
    25-67207 O-RING, (3.489 x .070)
    O-RING, (3.489 x .070)
  • 12
    25-832804 O-RING, (2.739 x .070)
    O-RING, (2.739 x .070)
  • 13
    26-828225 SEAL
    SEAL
  • 14
    8M0073890 HEAD ASSEMBLY, Compressor
    HEAD ASSEMBLY, Compressor
  • 15
    22-8307532 FITTING, Straight
    FITTING, Straight
  • 16
    10-82446035 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 17
    22-151331 FITTING
    FITTING
  • 18
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 19
    21-428641 FITTING, Check Valve
    FITTING, Check Valve
  • 20
    22-856744 FITTING
    FITTING
  • 21
    22-16604 FITTING, Straight (.125-27)
    FITTING, Straight (.125-27)
  • 22
    25-831985 O-RING, (.468 x .078)
    O-RING, (.468 x .078)
  • 23
    13536A14 SENSOR ASSEMBLY, Temperature
    (DESIGN II)
    SENSOR ASSEMBLY, Temperature
    (DESIGN II)
  • 24
    13536A12 SENSOR ASSEMBLY, Temperature
    (DESIGN I)
    SENSOR ASSEMBLY, Temperature
    (DESIGN I)
  • 25
    10-81893412 SCREW, (M8 x 12)
    SCREW, (M8 x 12)
  • 26
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 27
    137151 RETAINER
    RETAINER
  • 28
    8328233 PULLEY
    PULLEY
  • 29
    10-81893450 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 30
    10-85593912 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • -
    25-832804A03 O-RING KIT
    O-RING KIT
